Door Contact Plate Connector End Views

Door Contact Plate - Right Cargo - C1 (Body Side)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	-	-	Not Used
B	BLK	1450	Ground
C	PNK/BLK	1303	Cargo Door Ajar Switch Signal
C	PNK/BLK	1303	Cargo Door Ajar Switch Signal
D	PPL	293	Rear Defog Element Supply Voltage

Door Contact Plate - Right Cargo - C1 (Door Side)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	293	Rear Defog Element Supply Voltage
B	PNK/BLK	1303	Liftgate Ajar Switch Signal
C	BLK	1450	Ground
C	BLK	1450	Ground
D	BLK	1450	Ground

Door Contact Plate - Right Cargo - C2 (Body Side)

Courtesy of GENERAL MOTORS CORP.

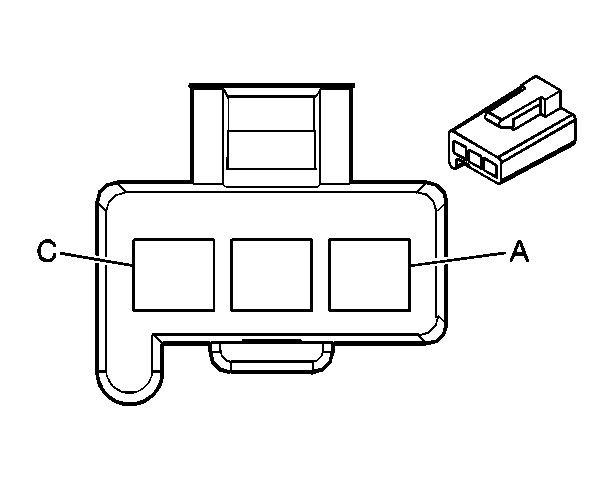

Connector Part Information		12041431 3-Way F M/P 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	LT GRN	265	Passenger Door Key Switch Signal
B	TAN	294	Door Lock Actuator Unlock Control
C	GRY	295	Door Lock Actuator Lock Control

Door Contact Plate - Right Cargo - C2 (Door Side)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12041431 3-Way F M/P 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	LT GRN	265	Passenger Door Key Switch Signal
B	TAN	294	Door Lock Actuator Unlock Control
C	GRY	295	Door Lock Actuator Lock Control

Door Contact Plate - Left Cargo (Door Side)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	BLK	1450	Ground
B-C	-	-	Not Used
D	PPL	293	Rear Defog Element Supply Voltage

Door Contact Plate - Left Cargo (Body Side)

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052856 4-Way F Metri-Pack 280 (BLK)
Pin	Wire Color	Circuit No.	Function
A	PPL	293	Rear Defog Element Supply Voltage
B	PPL	293	Rear Defog Element Supply Voltage
C	PNK/BLK	1303	Cargo/Liftgate Ajar Switch Signal
D	BLK	1450	Ground
