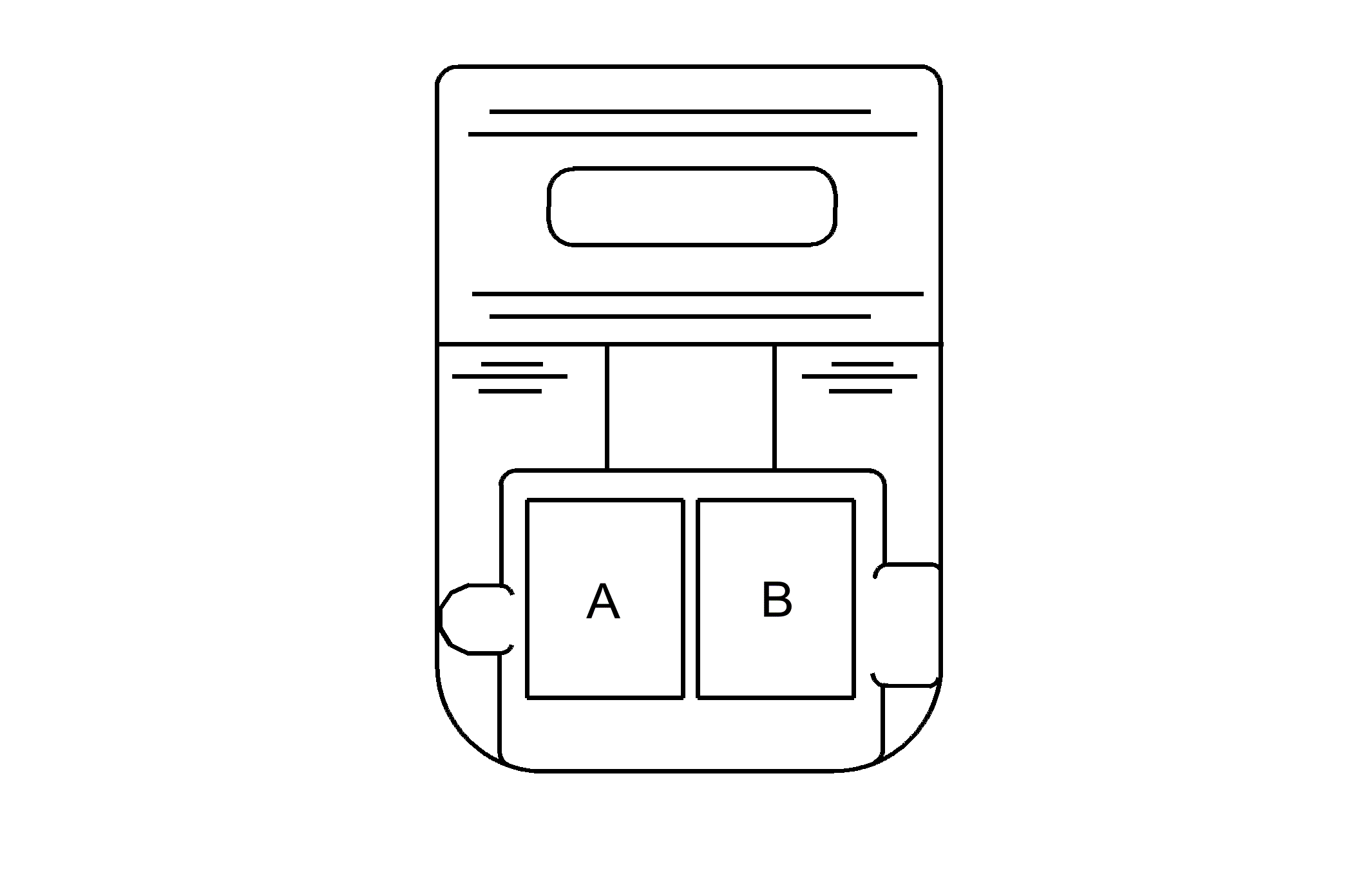

3-2 Shift Solenoid (SS) Valve Assembly Connector End View, Wiring Harness Side
3-2 Shift Solenoid (SS) Valve Assembly, Wiring Harness Side
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 12146094
- Conn 2F M/P 150.2 P2S (MD GRY)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| A |
WHT |
687 |
3-2 Shift Solenoid Valve Control |
| B |
RED |
839C |
Ignition 1 Voltage |
