Electronic Adjustable Pedals (EAP) Relay Connector End View

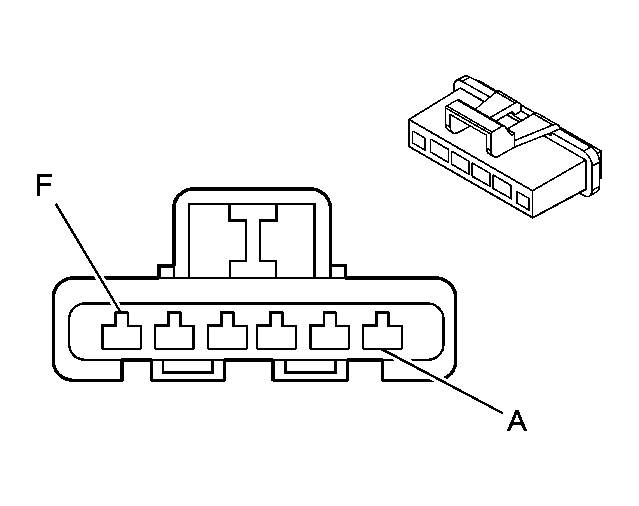

Electronic Adjustable Pedals (EAP) Relay

GM62452Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12059561
  • 6-Way F Multi-Pack Series (BLK)
Pin Wire Color Circuit No. Function
A YEL 5129 Adjustable Pedals Relay Rearward Control
B ORN/BLK 5285 Adjustable Pedals Motor Rearward Control
C ORN 3940 Battery Positive Voltage
D LT BLU 5499 Adjustable Pedals Relay Control
E PPL 5286 Adjustable Pedals Motor Forward Control
F PPL 5130 Adjustable Pedals Relay Forward Control
