Installation Procedure

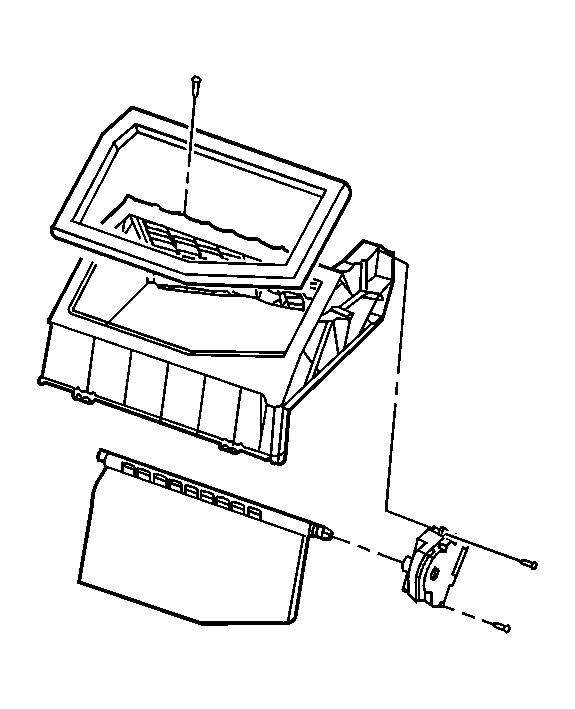

    Fig 1: View Of Recirculation Actuator & Door (Delphi)
    GM391381Courtesy of GENERAL MOTORS CORP.
  1. Install the recirculation door.
  2. Install the recirculation actuator.

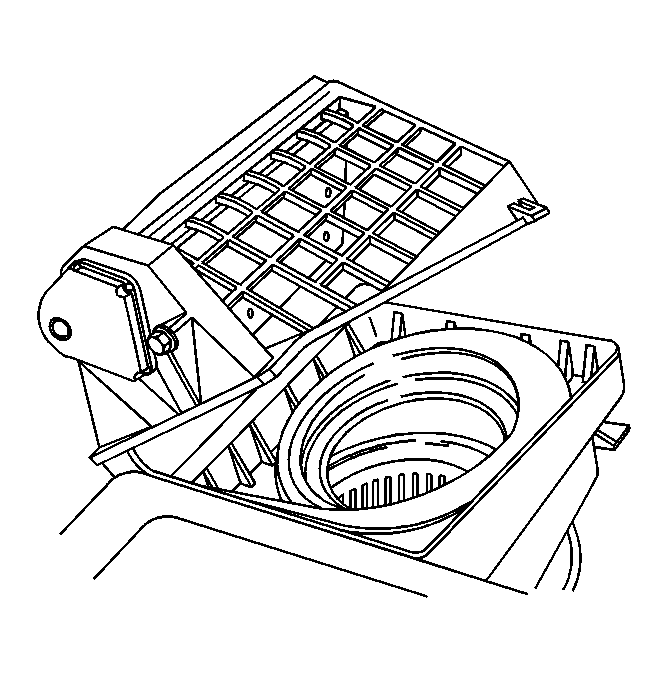

    3. Fig 2: View Of Recirculation Actuator Mounting Screws (Delphi)
    GM363769Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the recirculation actuator mounting screws.

    Tighten:  Tighten the screws to 1.9 N.m (17 lb in).

    4. Fig 3: Identifying Electrical Connectors
    GM372310Courtesy of GENERAL MOTORS CORP.
  4. Connect the recirculation actuator electrical connection (1).
  5. Install the HVAC module assembly. Refer to HVAC Module Assembly Replacement .
