Installation Procedure

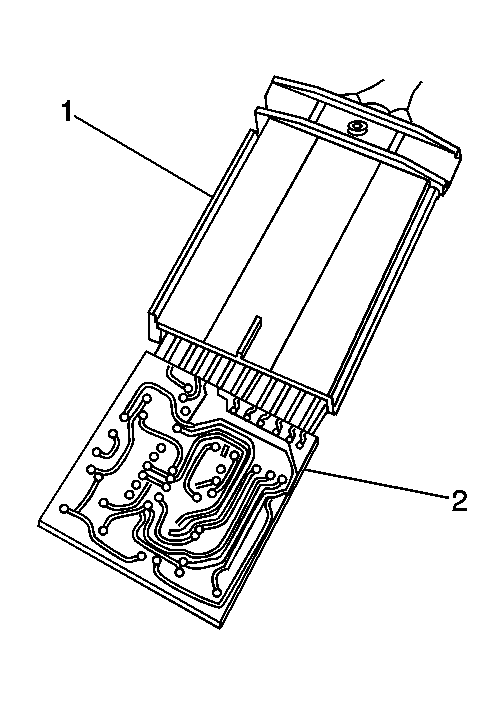

    Fig 1: View Of Auxiliary HVAC Control Processor & Box
    GM962574Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary HVAC control processor (2) to the box. (1)
  2. Install the cover to the auxiliary HVAC control processor (2).

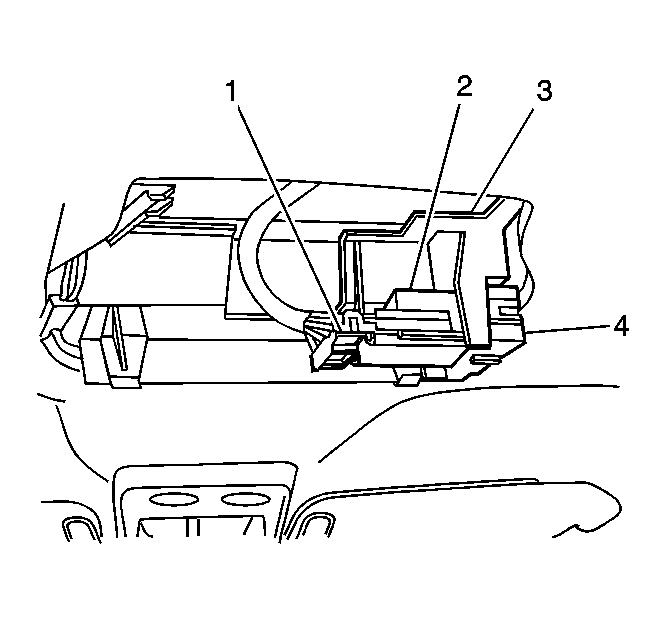

    3. Fig 2: View Of Auxiliary HVAC Control Processor & Bracket
    GM962578Courtesy of GENERAL MOTORS CORP.
  3. Install the auxiliary HVAC control processor (2) to the bracket (3).
  4. Install the auxiliary rear HVAC control assembly. Refer to HVAC Control Assembly Replacement - Rear Auxiliary .
