Installation Procedure

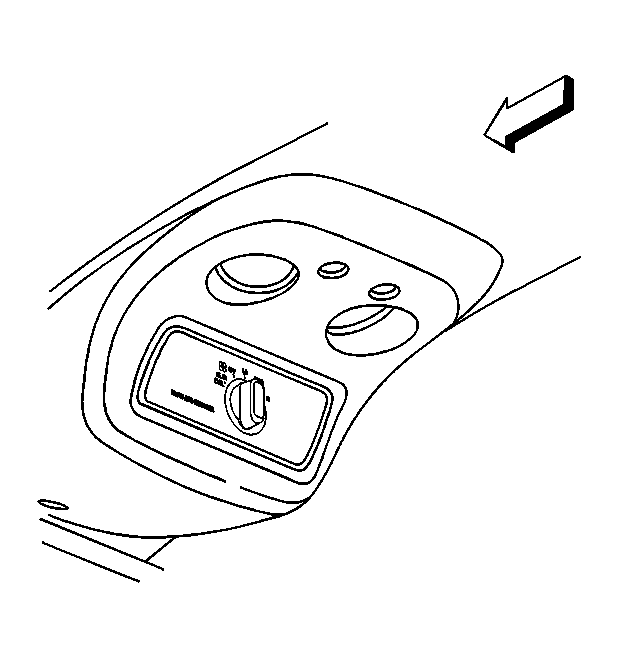

    Fig 1: View Of HVAC Control Assembly - Front Auxiliary (Front Overhead Control A/C Only)
    GM612493Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary HVAC control assembly to the overhead console.
  2. Connect the electrical connectors to the auxiliary HVAC control assembly.
  3. Install the overhead console to the headliner.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the overhead console screw.

    Tighten:  Tighten the screw to 2 N.m (18 lb in).
