Rear Brake Shield Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

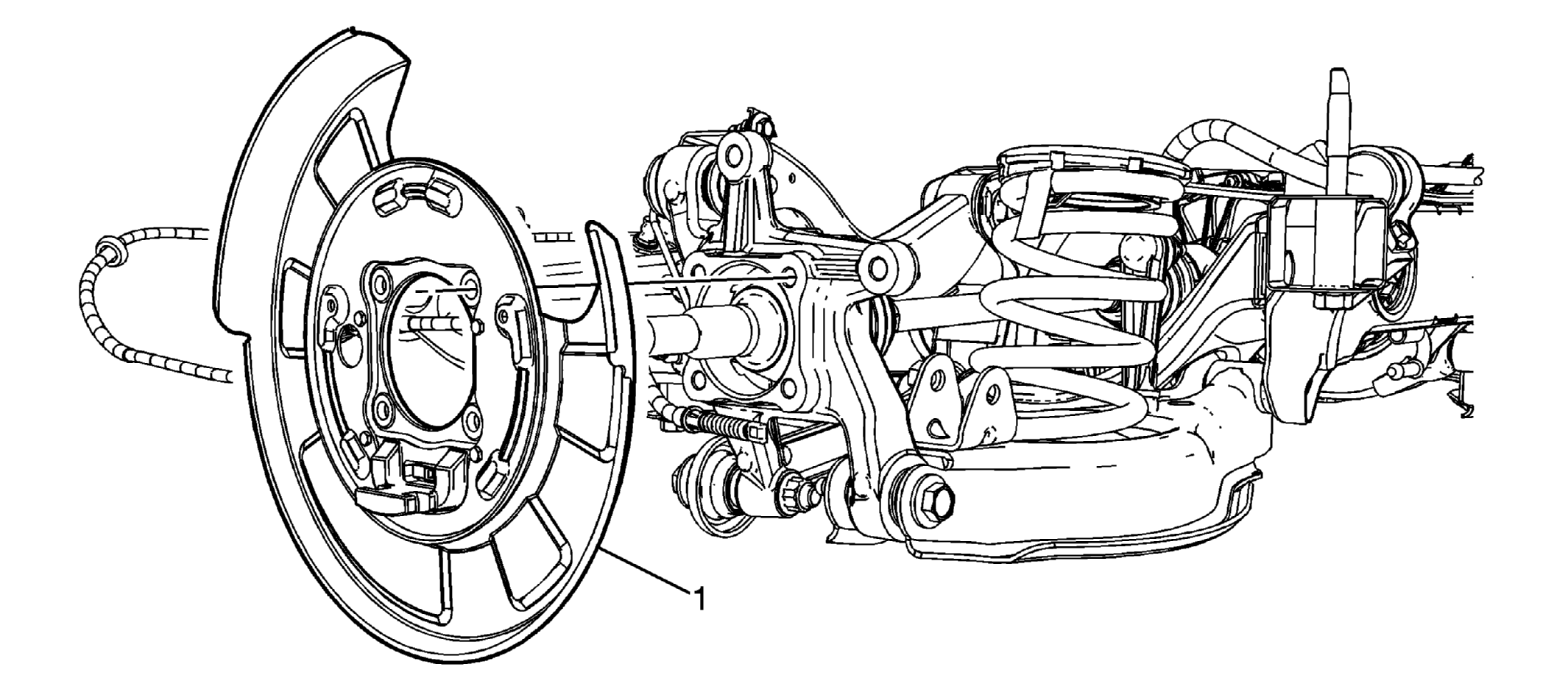

Fig 1: View Of Rear Disc Brake Splash Shield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to Brake Dust Warning . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the park brake shoes. Refer to Parking Brake Shoe Replacement . Remove the wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement . Disconnect the park brake cable from the actuator and mounting bracket. Refer to Parking Brake Rear Cable Replacement . Remove the wheel bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .
1	Disc Brake Backing Plate

Callout

Component Name

WARNING: Refer to Brake Dust Warning .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation .
Remove the park brake shoes. Refer to Parking Brake Shoe Replacement .
Remove the wheel speed sensor. Refer to Rear Wheel Speed Sensor Replacement .
Disconnect the park brake cable from the actuator and mounting bracket. Refer to Parking Brake Rear Cable Replacement .
Remove the wheel bearing/hub assembly. Refer to Rear Wheel Bearing and Hub Replacement .

Disc Brake Backing Plate
