Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the trim panel on the seat from the front to the back.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the trim panel (1) to the seat by pushing in until the retaining clips are locked in place.
  3. Install the screws retaining the seat back release handle and the seat recliner handle to the seat, if removed.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

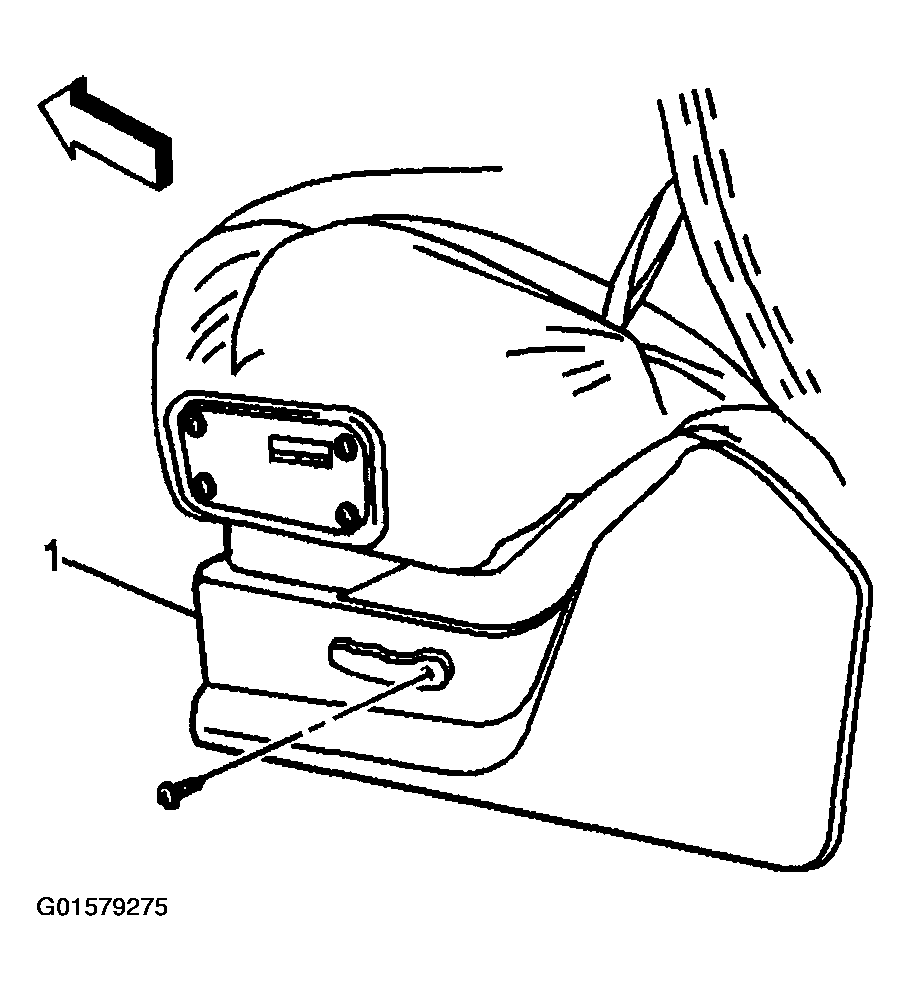

    Fig 1: Front Seat Trim Panel
    G01579275Courtesy of GENERAL MOTORS CORP.
