Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch bezel from the seat. Refer to Seat Switch Bezel Replacement   .

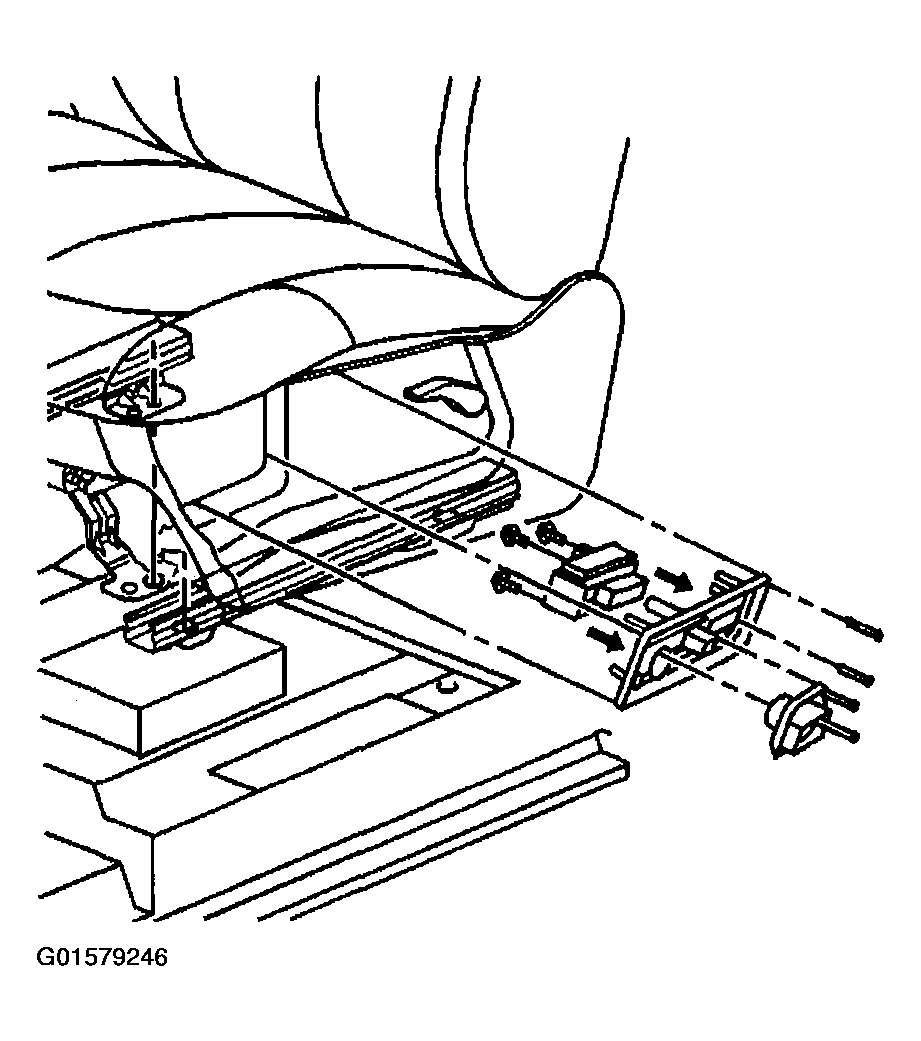

    Fig 1: Removing Power Seat Switch Bezel
    G01579246Courtesy of GENERAL MOTORS CORP.
  2. Remove the power seat switch to bezel screws.
  3. Remove the power seat switch.

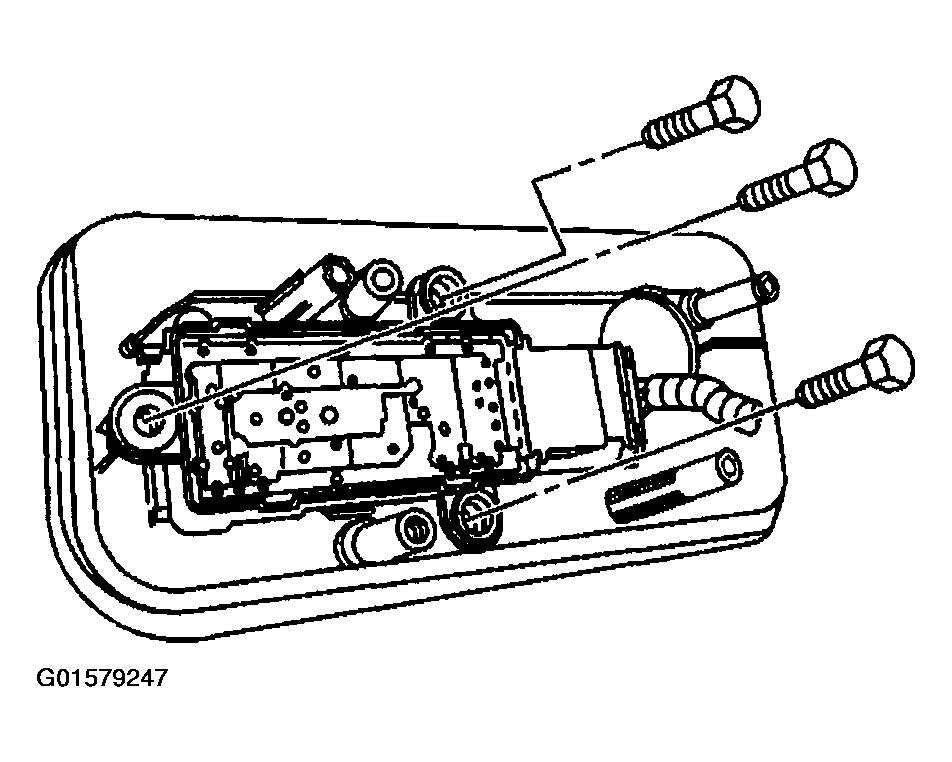

    Fig 2: Removing Power Seat Switch To Bezel Screws
    G01579247Courtesy of GENERAL MOTORS CORP.
