Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power seat adjuster switch assembly to the seat switch bezel.
  2. Install the lumbar support switch to the seat switch bezel.
  3. Connect the electrical connectors.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws retaining the power seat switch bezel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

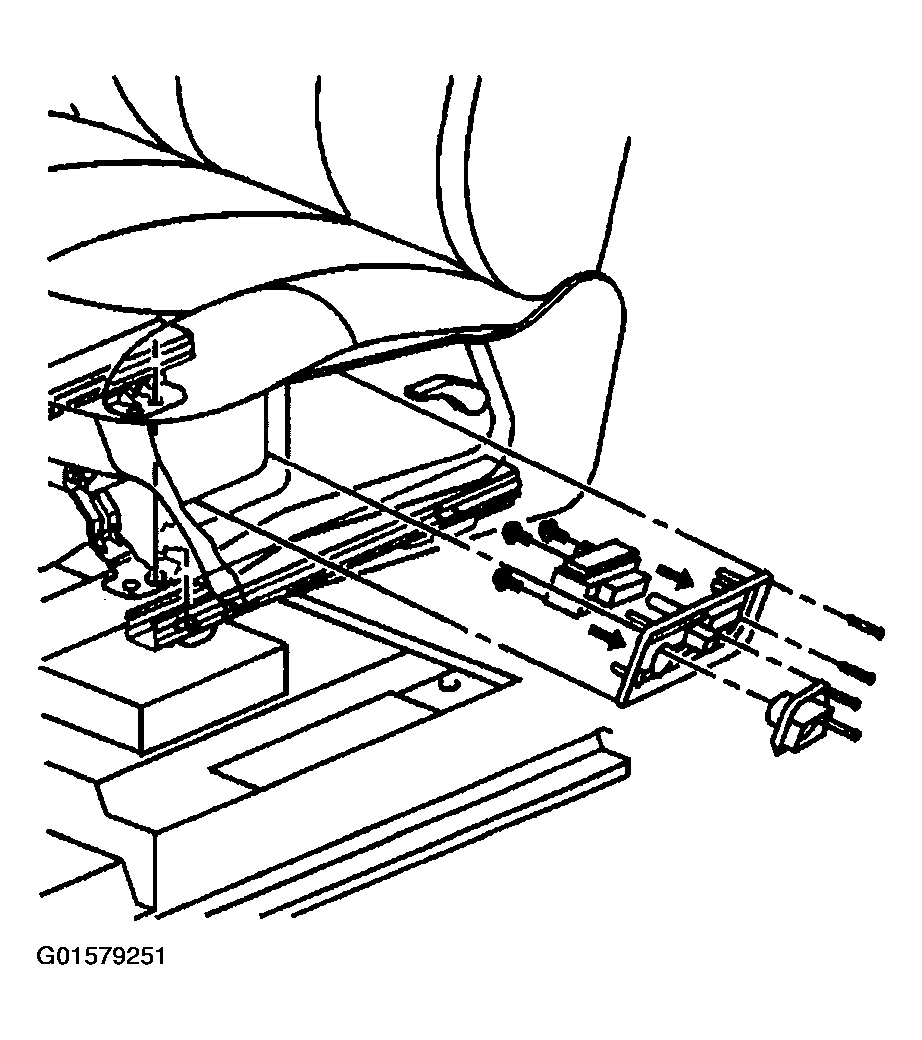

    Fig 1: Seat Switch Bezel
    G01579251Courtesy of GENERAL MOTORS CORP.
