Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front and the rear leg trim covers.
  2. Remove the seat back recliner handle screw from the trim panel, if equipped.
  3. Remove the jack assembly, If required.
  4. Remove the covers in order to access the seat bolts.
  5. Disconnect the electrical connectors, if equipped.
  6. Remove the seat retaining bolts.
  7. Remove the seat from the vehicle.

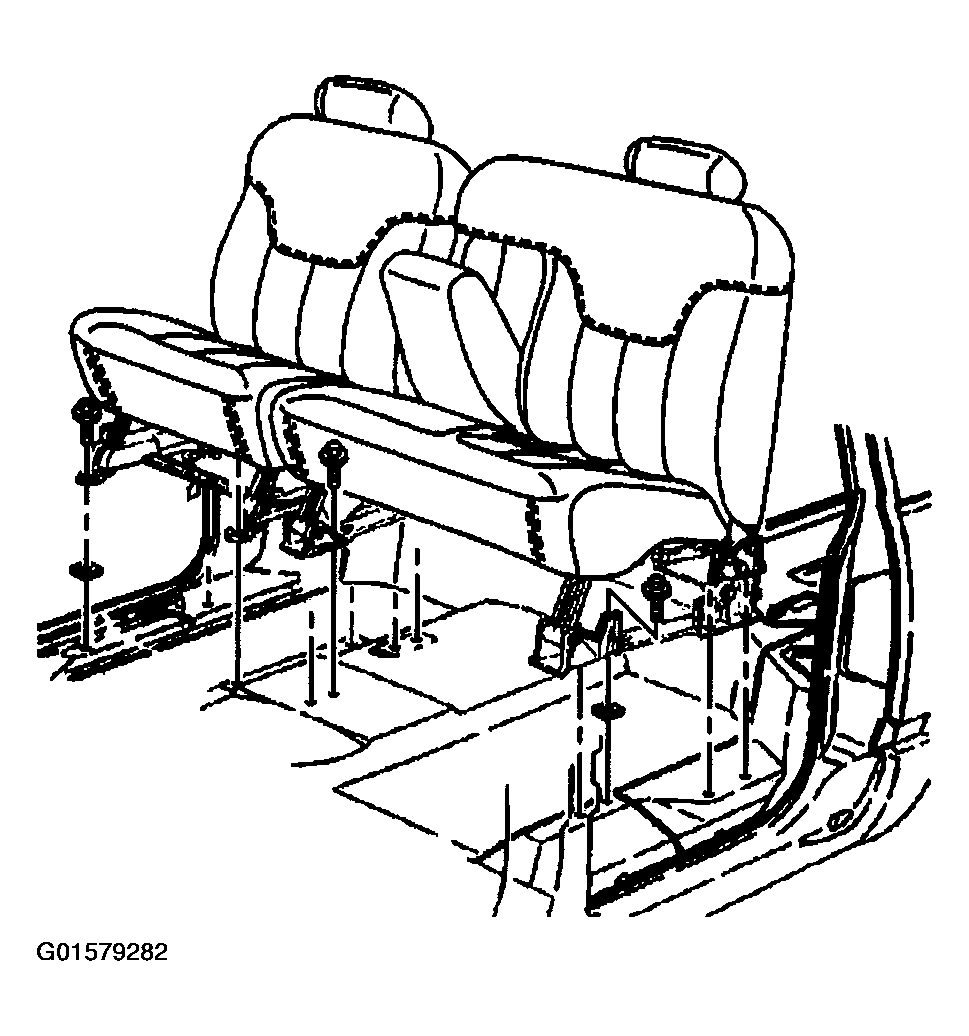

    Fig 1: Rear Seat (60/40 Split)
    G01579282Courtesy of GENERAL MOTORS CORP.
