Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front center seat on top of the floor locating studs.
  2. Install the front left and right bucket seats. Refer to Seat Replacement-Front Bucket   .

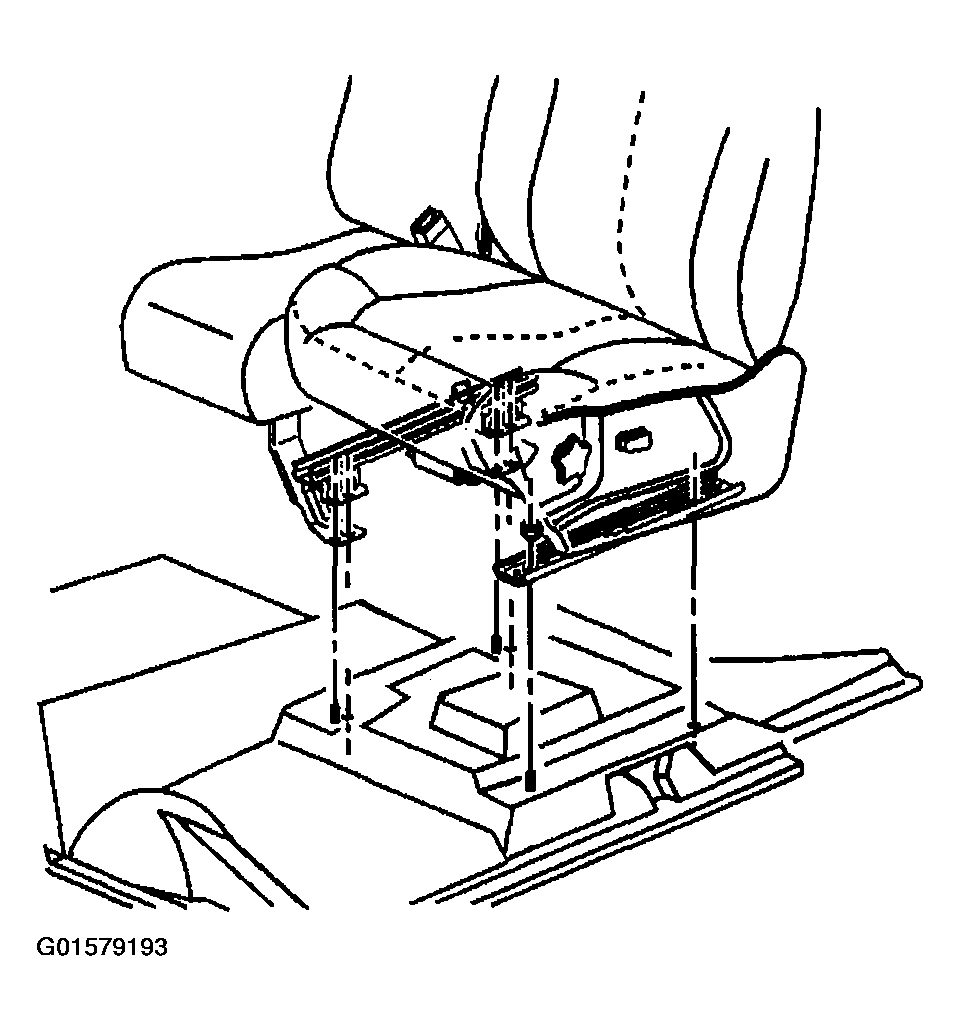

    Fig 1: Installing Center Seat
    G01579193Courtesy of GENERAL MOTORS CORP.
