Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the following components to the seat cushion frame:
    • The plastic retainers (3)
    • The frame suspension (2)
    • The frame springs (1)
  2. Install the seat cushion trim cover and pad. Refer to Seat Cushion Trim Cover And Pad Replacement   .
  3. Install the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  4. Re-zero the inflatable restraint passenger presence system. Refer to PASSENGER PRESENCE SYSTEM REZEROING PROCEDURE .

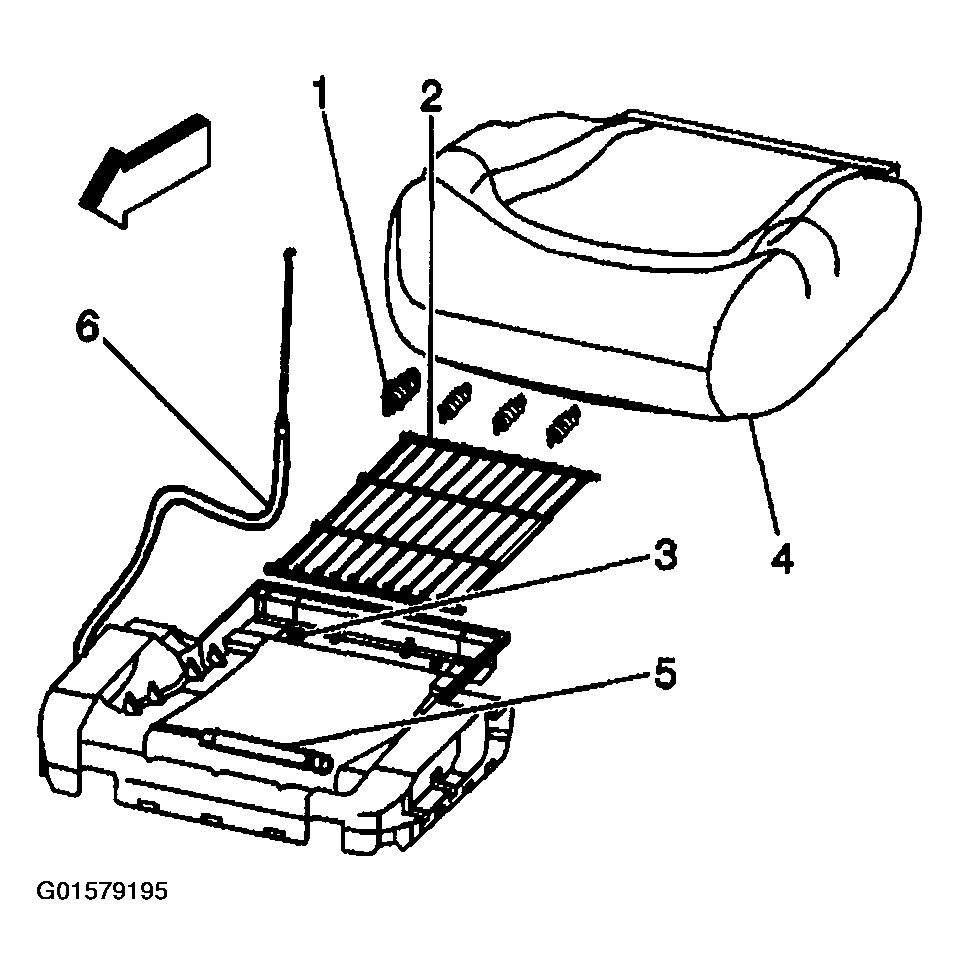

    Fig 1: Front Seat Cushion Frame
    G01579195Courtesy of GENERAL MOTORS CORP.
