Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the seat from the vehicle. Refer to Seat Replacement-Front Bucket   .
  2. Remove the head restraint and guides. Refer to Head Restraint Replacement   .
  3. Remove the seat trim panel. Refer to Trim Panel Replacement-Front Seat   .
  4. Disconnect the lumbar cable (6) underneath the seat cushion (disconnect the lumbar wire harness if equipped with power lumbar).
  5. Remove the seat back trim cover and pad. Refer to Seat Back Cover And Pad Replacement-Front   .
  6. Remove the lumbar assembly (or power lumbar/bolster assembly if equipped). Refer to Lumbar Replacement-Front Seat   .
  7. Remove the seat belt retractor. Refer to SEAT BELT RETRACTOR REPLACEMENT-LEFT FRONT or SEAT BELT RETRACTOR REPLACEMENT-RIGHT FRONT .
  8. Remove the inboard pivot bolt (1).
    9. Fig 1: Inboard Pivot Bolt
    G01579218Courtesy of GENERAL MOTORS CORP.
  9. Remove the recliner arm attachment bolts (2).
  10. Remove the frame from the vehicle.
  11. Transfer all necessary components to the new seat back frame.

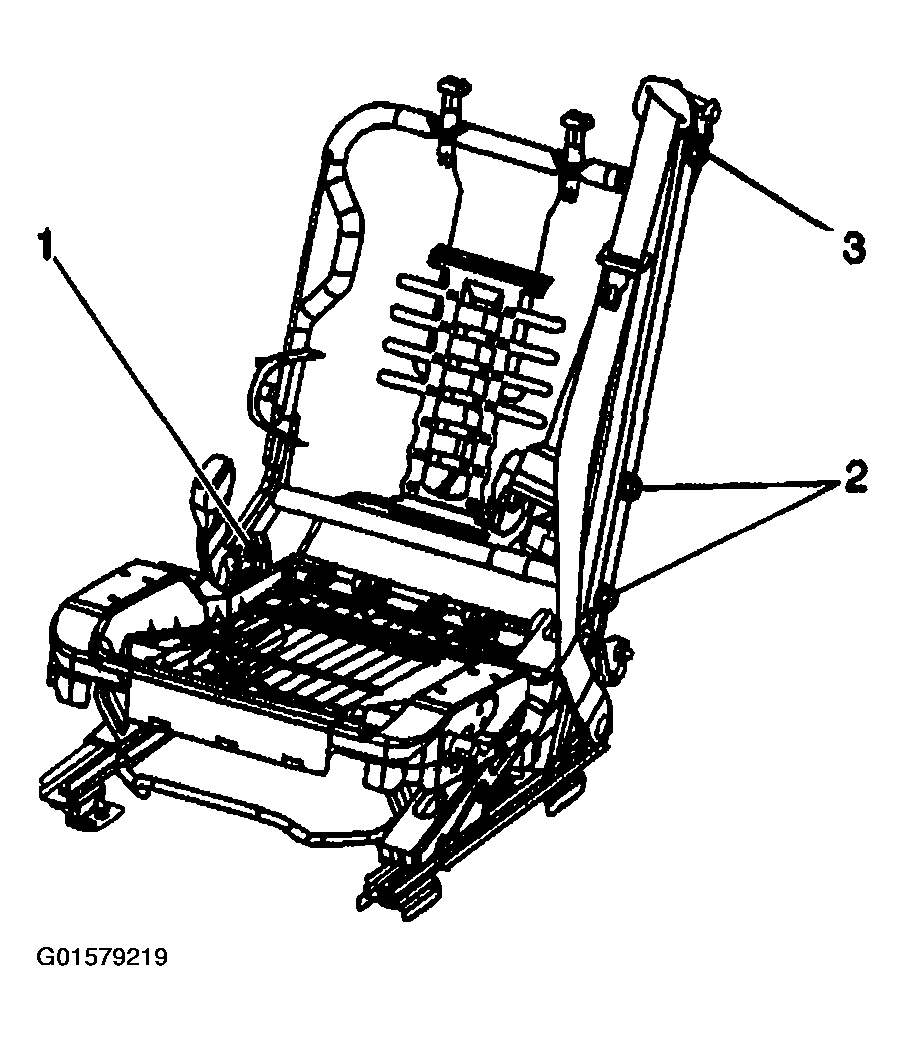

    Fig 2: Recliner Arm Attachment Bolts
    G01579219Courtesy of GENERAL MOTORS CORP.
