Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat from the vehicle. Refer to Seat Replacement-Rear (Extended Cab W/4Th Door)   or Seat Replacement-Rear (Extended Cab)   or Seat Replacement-Rear (60/40 Split)   .
  2. Remove the seat back folding cover, if equipped.
  3. Remove the armrest from the seat back, if equipped. Refer to Armrest Replacement-Rear Seat (60/40 Split)   .
  4. Remove the head restraints (1) from the seat back. Refer to Head Restraint Replacement   .
  5. Release the J-clips from the seat back cover.
  6. Release the hook, and the loop strips retaining the seat back cover (2) to the foam pad (12).
  7. In order to ease removal, place a piece of cardboard between the seat back cover and the foam pad.
  8. Working from side to side, carefully lift the seat back cover from the foam pad.

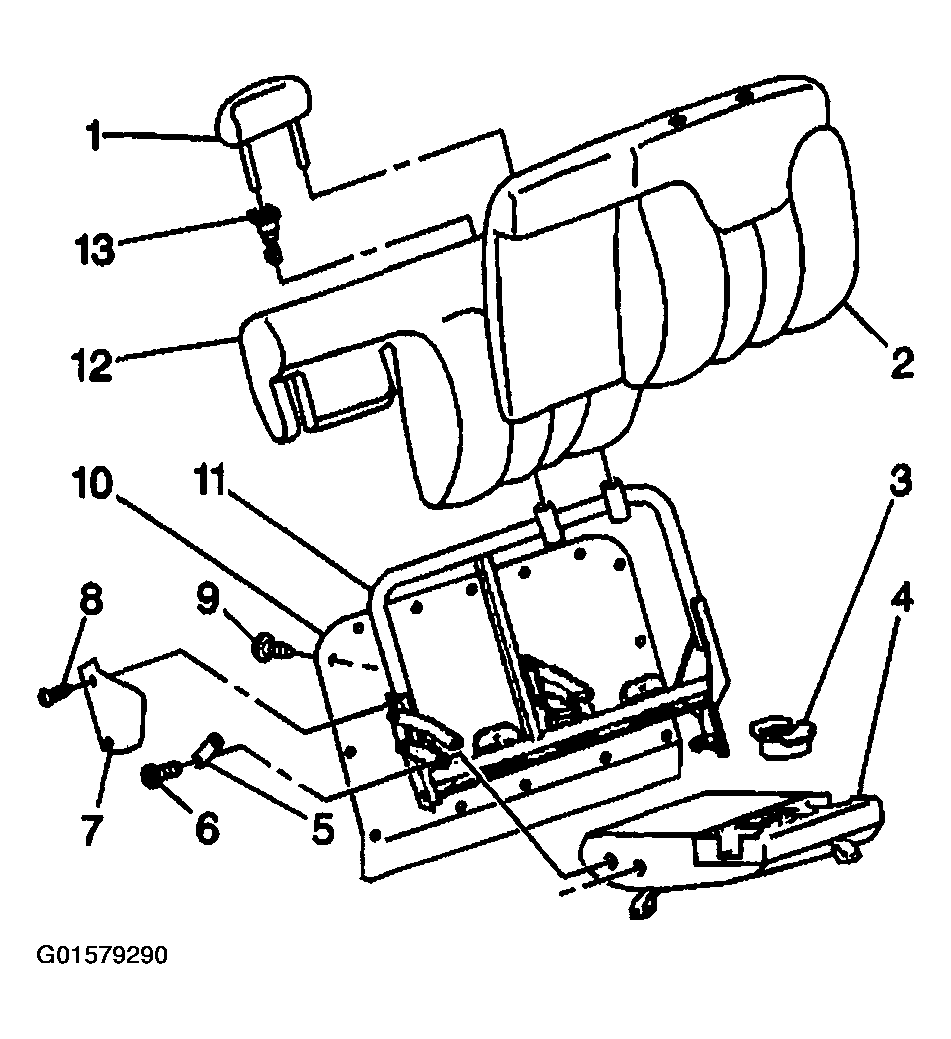

    Fig 1: Rear Seat Back Cover & Pad
    G01579290Courtesy of GENERAL MOTORS CORP.
