Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power seat switch bezel containing the lumbar switch (1) from the seat. Refer to Seat Switch Bezel Replacement   .
  2. Remove the lumbar switch screws from the power seat switch bezel.
  3. Remove the lumbar switch.

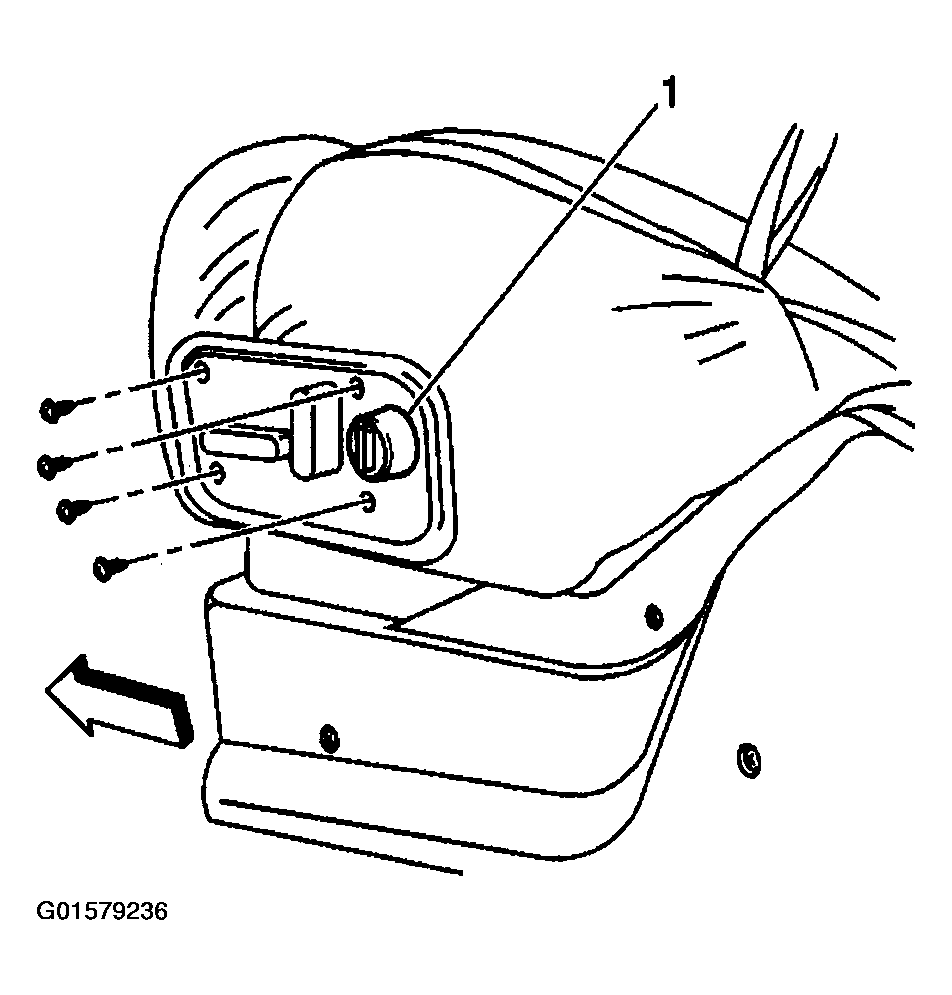

    Fig 1: Removing Lumbar Switch & Screws
    G01579236Courtesy of GENERAL MOTORS CORP.
