Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the power lumbar/bolster assembly on the seat.
  2. Connect the electrical connectors to the motors.
  3. Fasten the lumbar wire at the bottom of the frame.
  4. Attach the lumbar clip onto the top of the seat frame.

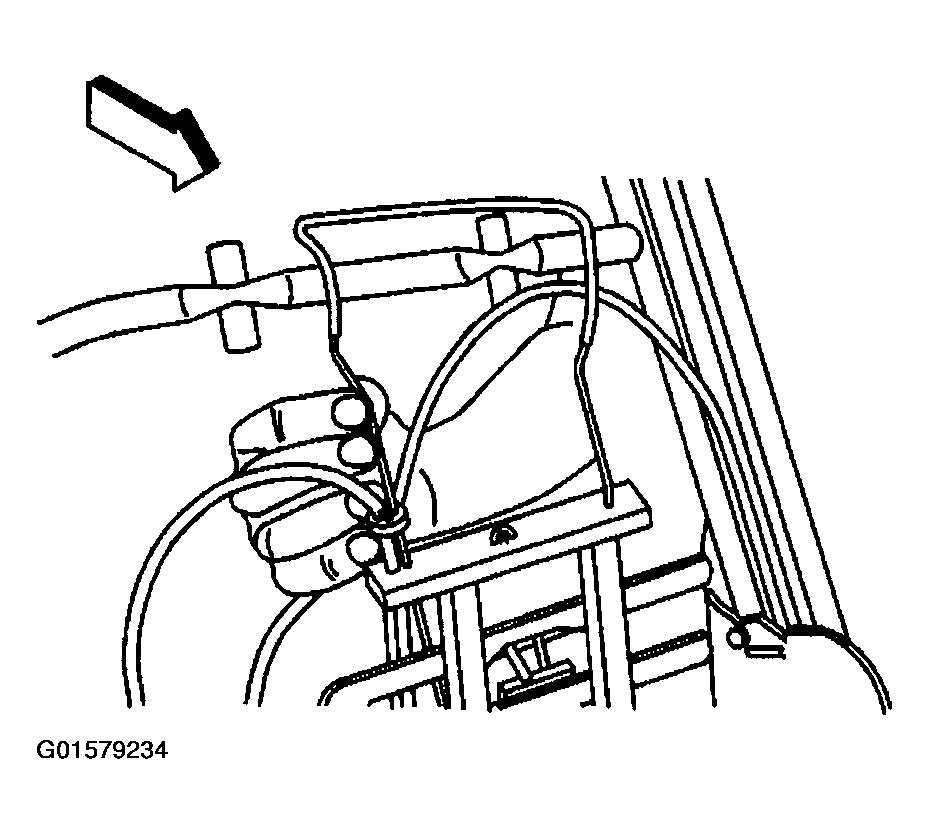

    Fig 1: Installing Lumbar Wire To Bottom Of Seat Frame
    G01579234Courtesy of GENERAL MOTORS CORP.
  5. Install the rivets to secure the bolster paddles (1).
  6. Install the seat back cover and pad. Refer to Seat Back Cover And Pad Replacement-Front   .
  7. Install the head restraint and guides. Refer to Head Restraint Replacement   .
  8. Install the seat in the vehicle. Refer to Seat Replacement-Front Bucket   .

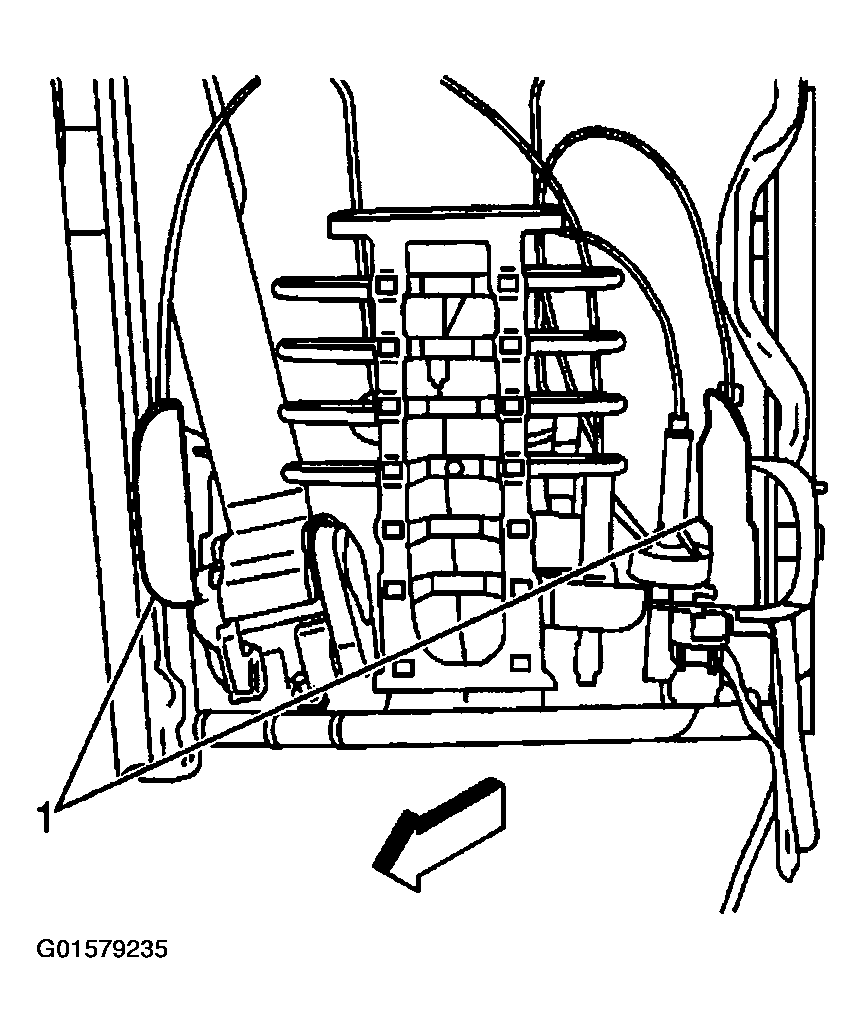

    Fig 2: Installing Rivets To Secure Bolster Paddles
    G01579235Courtesy of GENERAL MOTORS CORP.
