Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the center armrest to the seat frame.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the bolts to the center armrest.

    Tighten

    Tighten the bolt to 9 N.m (80 lb in).

  3. Install the cover to the center armrest, if removed.

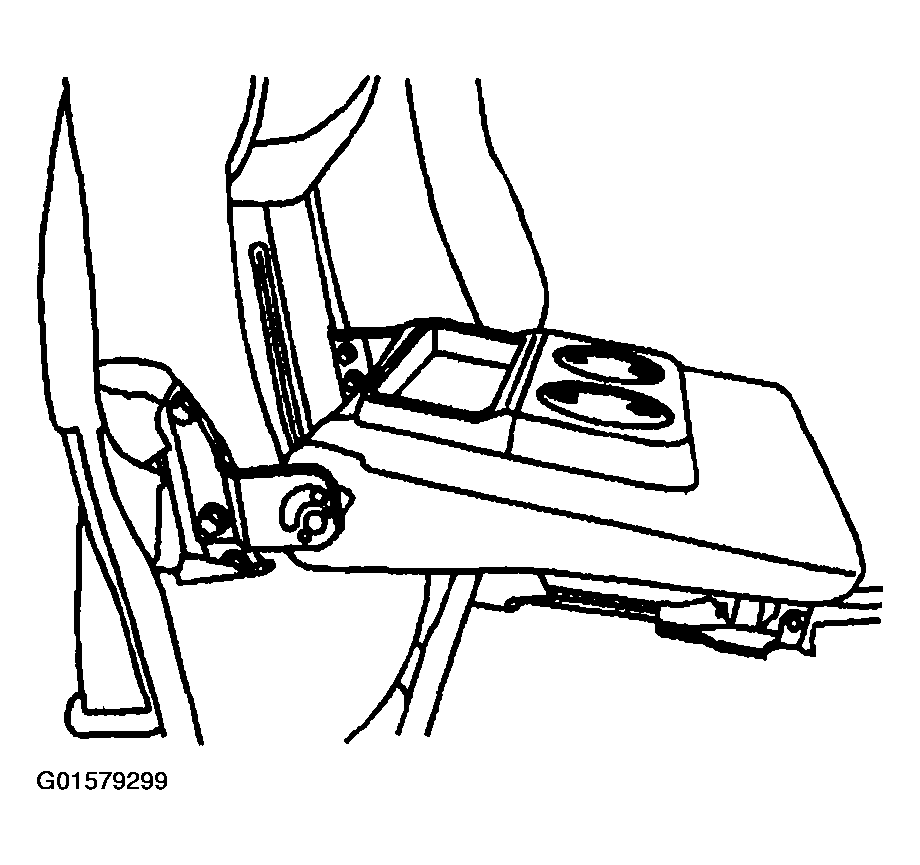

    Fig 1: Rear Seat Armrest (60/40 Split)
    G01579299Courtesy of GENERAL MOTORS CORP.
