Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the clip in the slot of the seat frame.
  2. Install the rubber band on the clip to retain it in place.
  3. Fold down the seat cover.
  4. Install the arm rest by pressing in until it is fully seated.
  5. Connect the heating element wire connector.
  6. Set the front seat back in the forward position.
  7. Pull down on the seat cover in order to install the 2 push pins retaining the seat back to the card board.
  8. Connect the J-clip at the bottom of the seat.
  9. Push on the seat back cover to ensure the cover is held in place by the velcro.

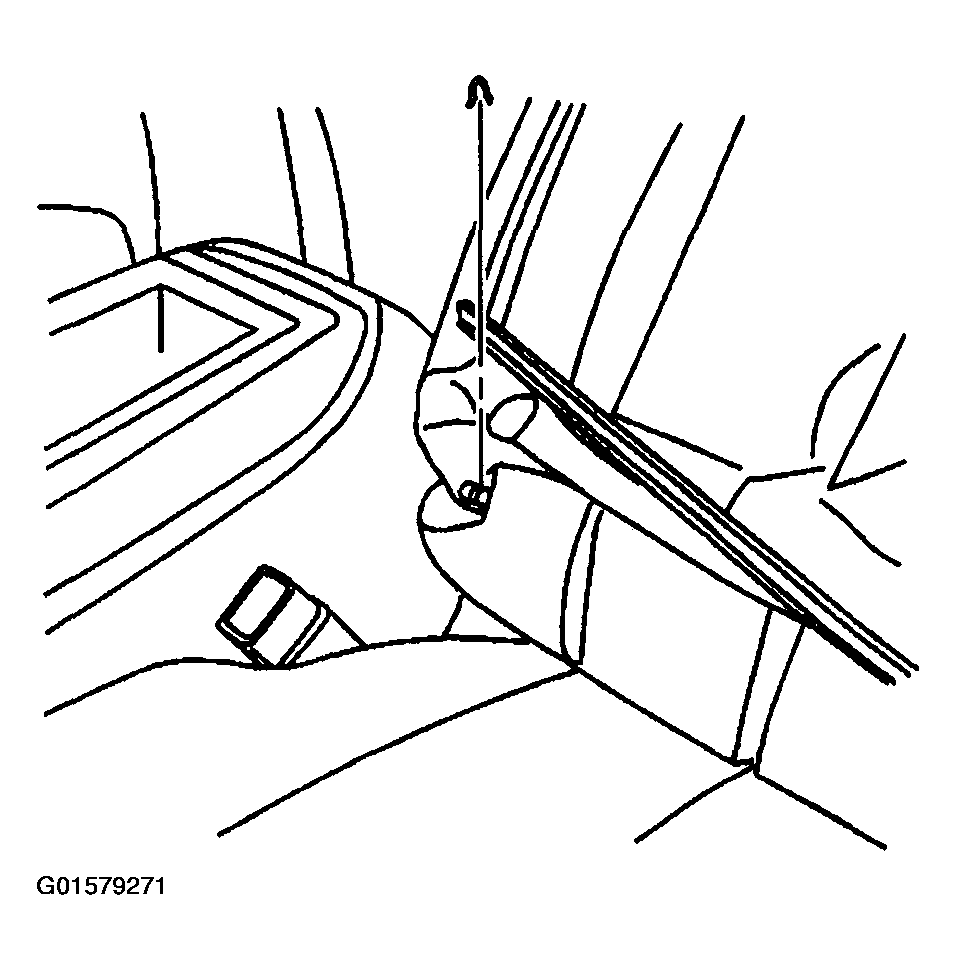

    Fig 1: Front Seat Armrest
    G01579271Courtesy of GENERAL MOTORS CORP.
