Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .
  2. Disconnect the speed sensor electrical connector (1).

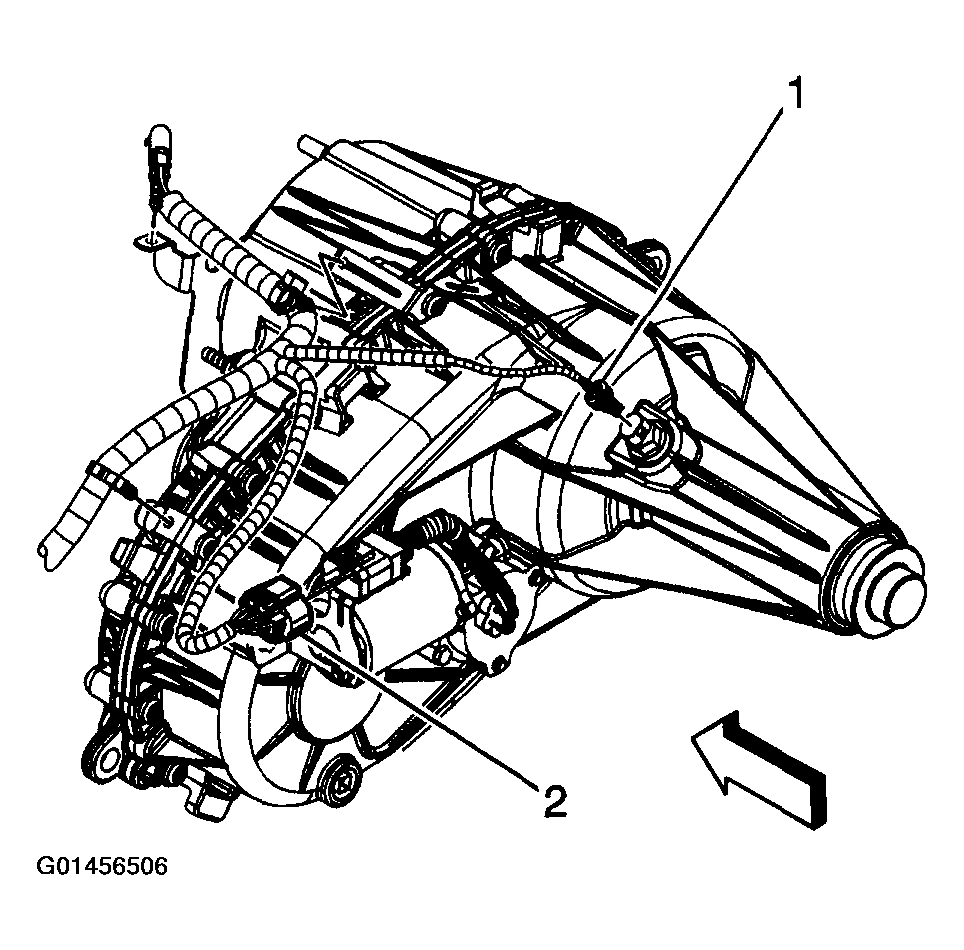

    Fig 1: Disconnecting Speed Sensor Electrical Connector
    G01456506Courtesy of GENERAL MOTORS CORP.
  3. Remove the speed sensor and O-ring seal.

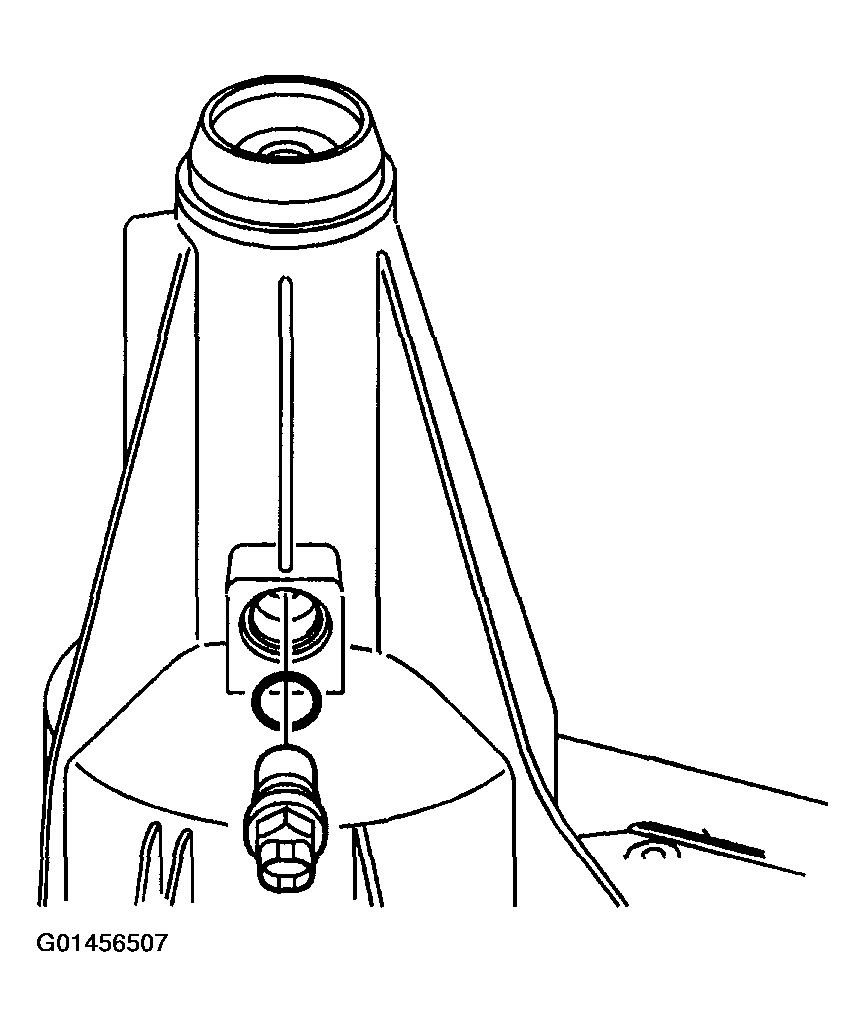

    Fig 2: Removing Speed Sensor And O-Ring Seal
    G01456507Courtesy of GENERAL MOTORS CORP.
