Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the speed sensor with a NEW O-ring seal.

    Tighten

    Tighten the sensor to 17 N.m (13 lb ft).

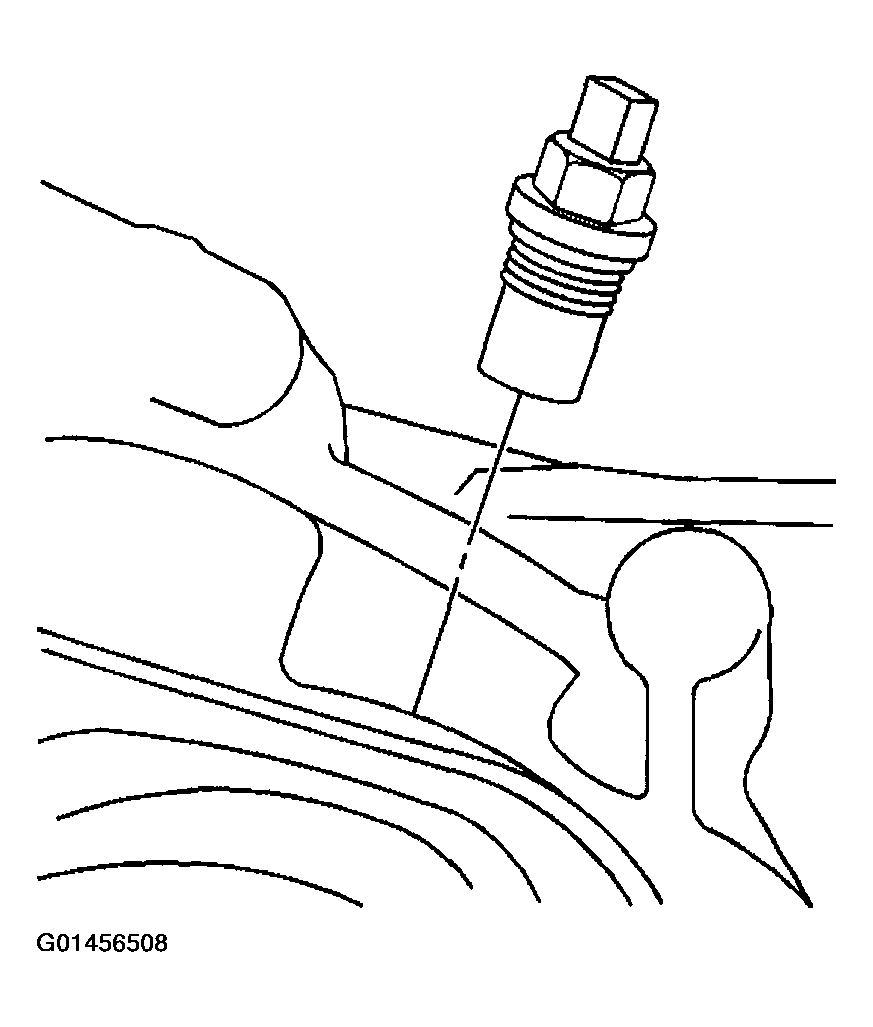

    Fig 1: Installing Speed Sensor With O-Ring Seal
    G01456508Courtesy of GENERAL MOTORS CORP.
  2. Connect the speed sensor electrical connector (1).
  3. Install the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .

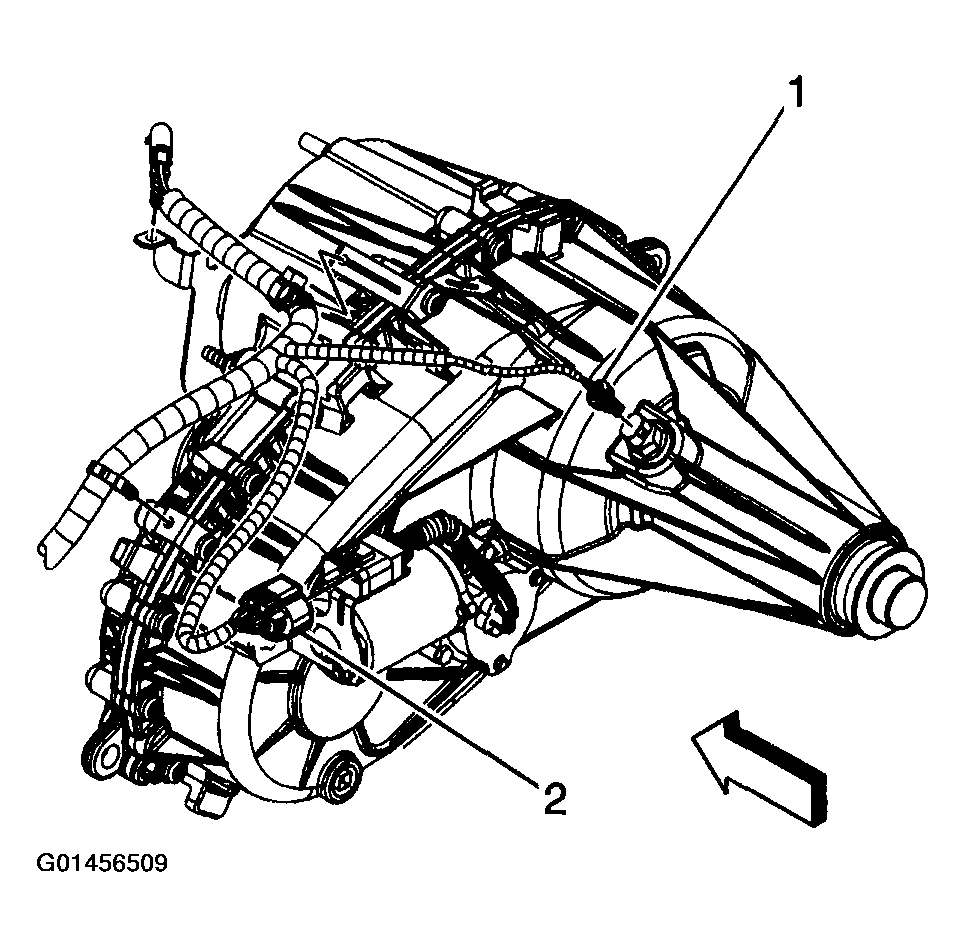

    Fig 2: Connecting Speed Sensor Electrical Connector
    G01456509Courtesy of GENERAL MOTORS CORP.
