Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel (I/P) cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.
  2. Remove the air deflector louver.
  3. Disengage the retainers, and pull out the headlamp, shift control, and cargo lamp switches in order to disconnect the electrical connectors.

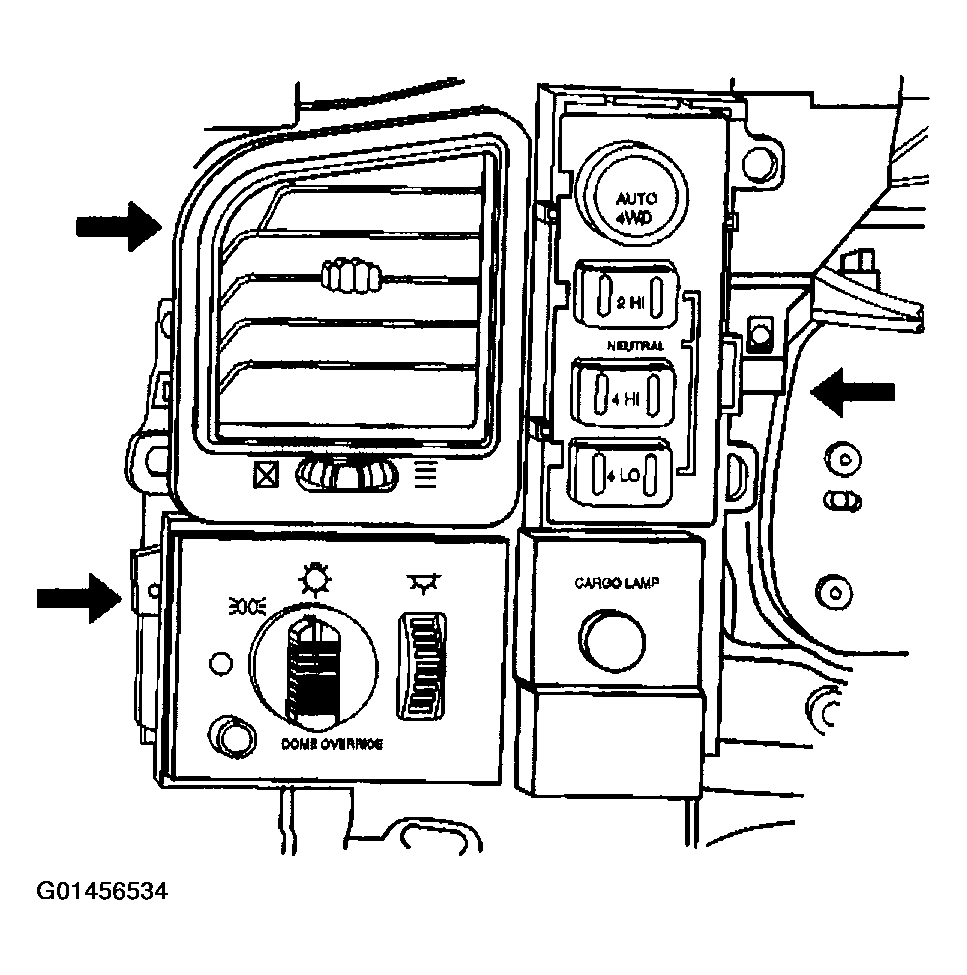

    Fig 1: Locating Air Deflector Louver, Headlamp, Shift Control And Cargo Lamp Switches
    G01456534Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the following electrical connectors:
    • Cargo lamp switch (1)
    • Shift control switch (2, 3)
    • Headlamp switch (4)
  5. Remove the headlamp, shift control, and cargo lamp switch housing.

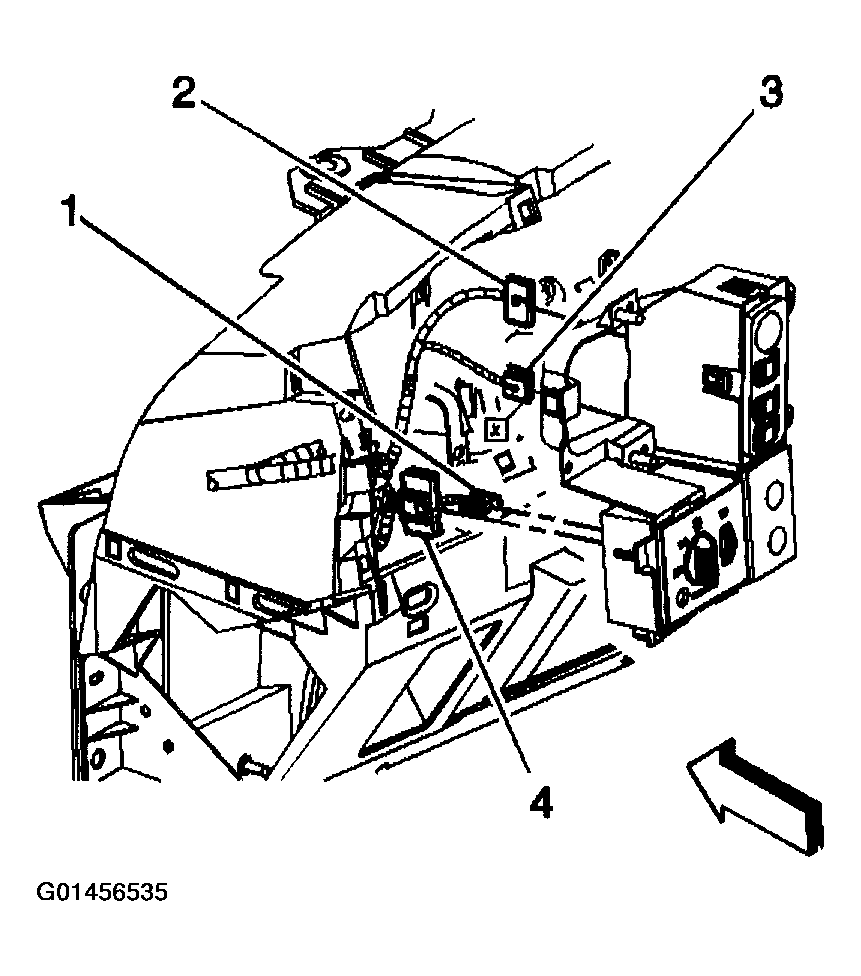

    Fig 2: Removing Headlamp, Shift Control, And Cargo Lamp Switch Housing
    G01456535Courtesy of GENERAL MOTORS CORP.
  6. Remove the shift control switch from the housing.

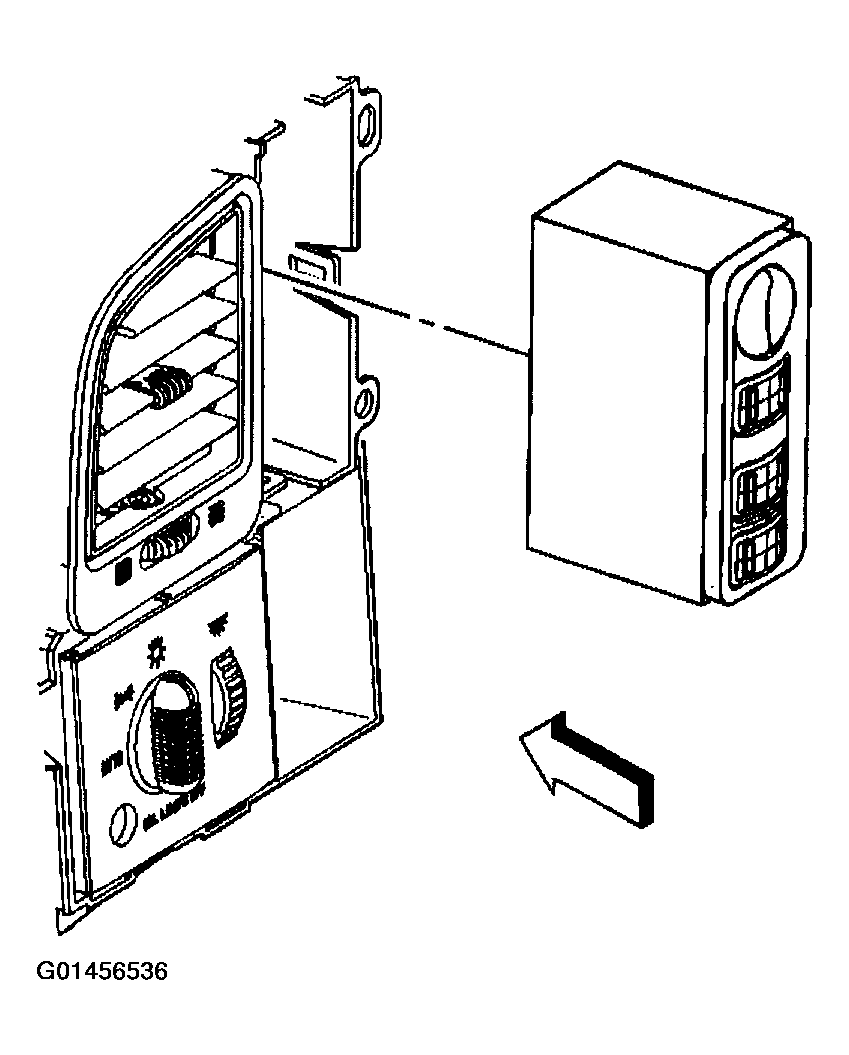

    Fig 3: Removing Shift Control Switch From Housing
    G01456536Courtesy of GENERAL MOTORS CORP.
