Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift control switch to the housing.

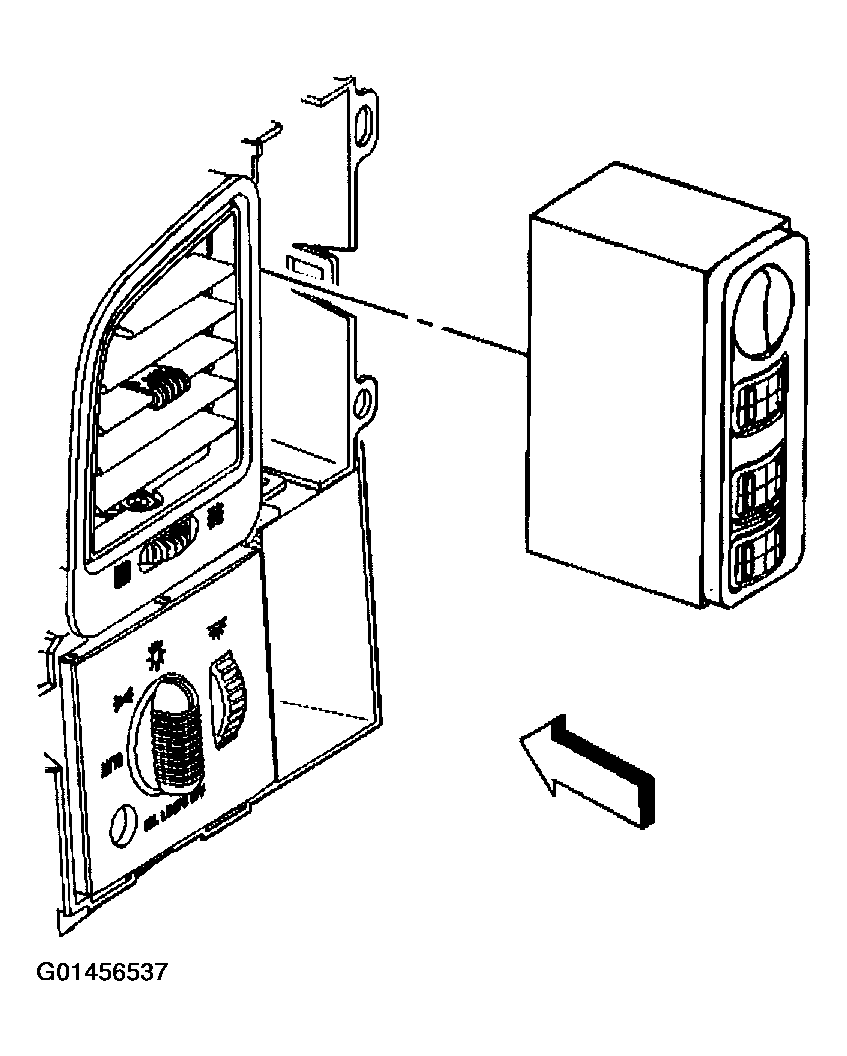

Fig 1: Installing Shift Control Switch To Housing
Courtesy of GENERAL MOTORS CORP.
Install the headlamp, shift control, and cargo lamp switch housing.
Connect the following electrical connectors:
- Cargo lamp switch (1)
- Shift control switch (2, 3)
- Headlamp switch (4)

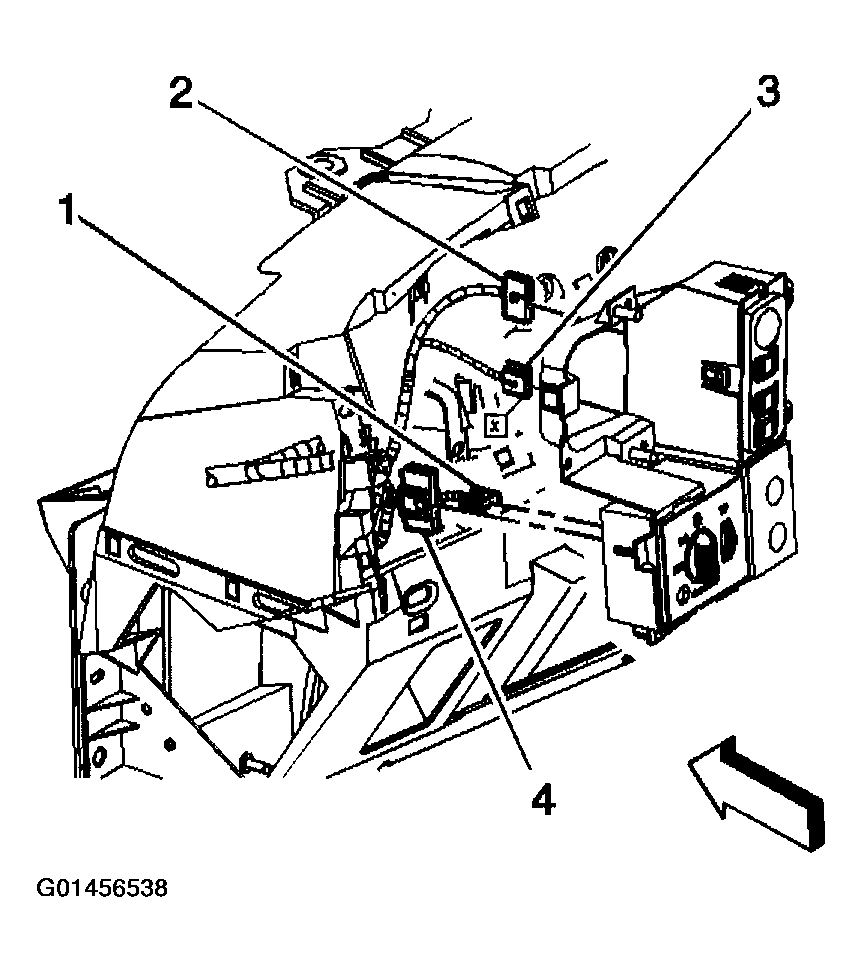

Fig 2: Installing Headlamp, Shift Control, And Cargo Lamp Switch Housing
Courtesy of GENERAL MOTORS CORP.
Push in the headlamp, shift control, and cargo lamp switches in order to engage the retainers.
Install the air deflector louver.
Install the I/P cluster bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in Instrument Panel, Gages, and Console.

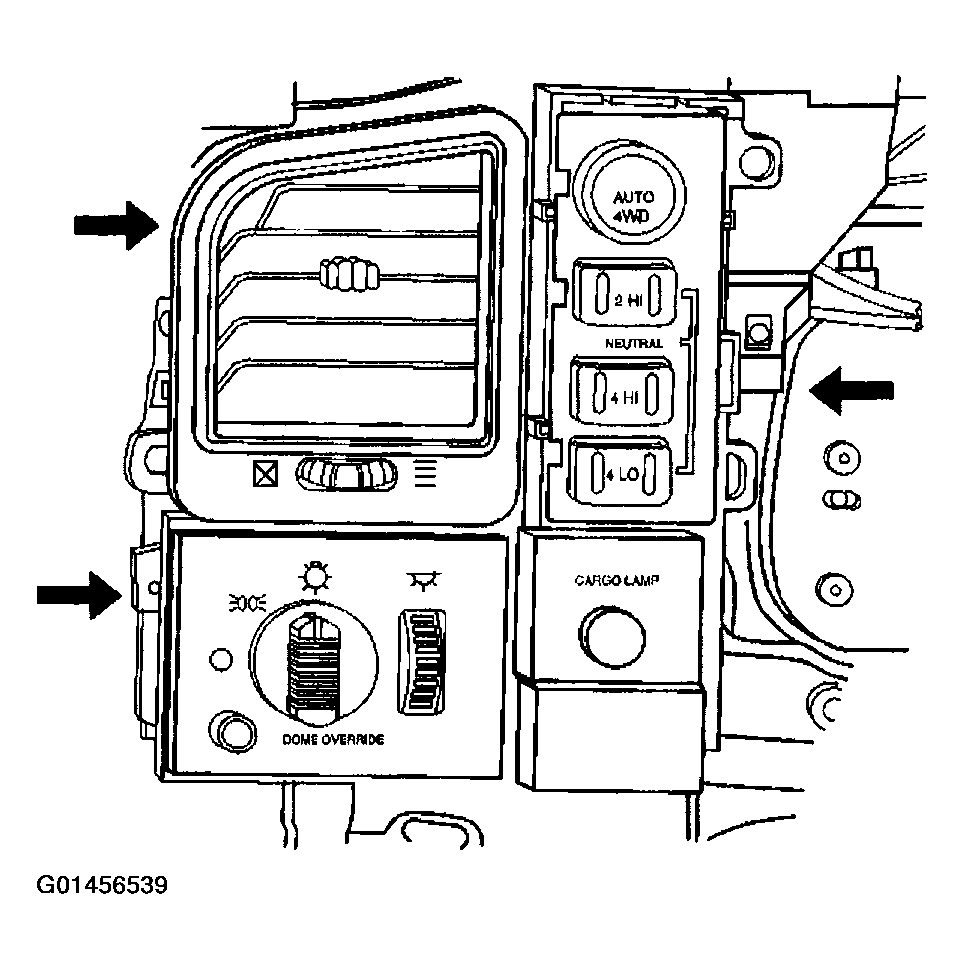

Fig 3: Installing Air Deflector Louver, Headlamp, Shift Control, And Cargo Lamp Switches
Courtesy of GENERAL MOTORS CORP.
