Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Install the shift control module to the bracket.

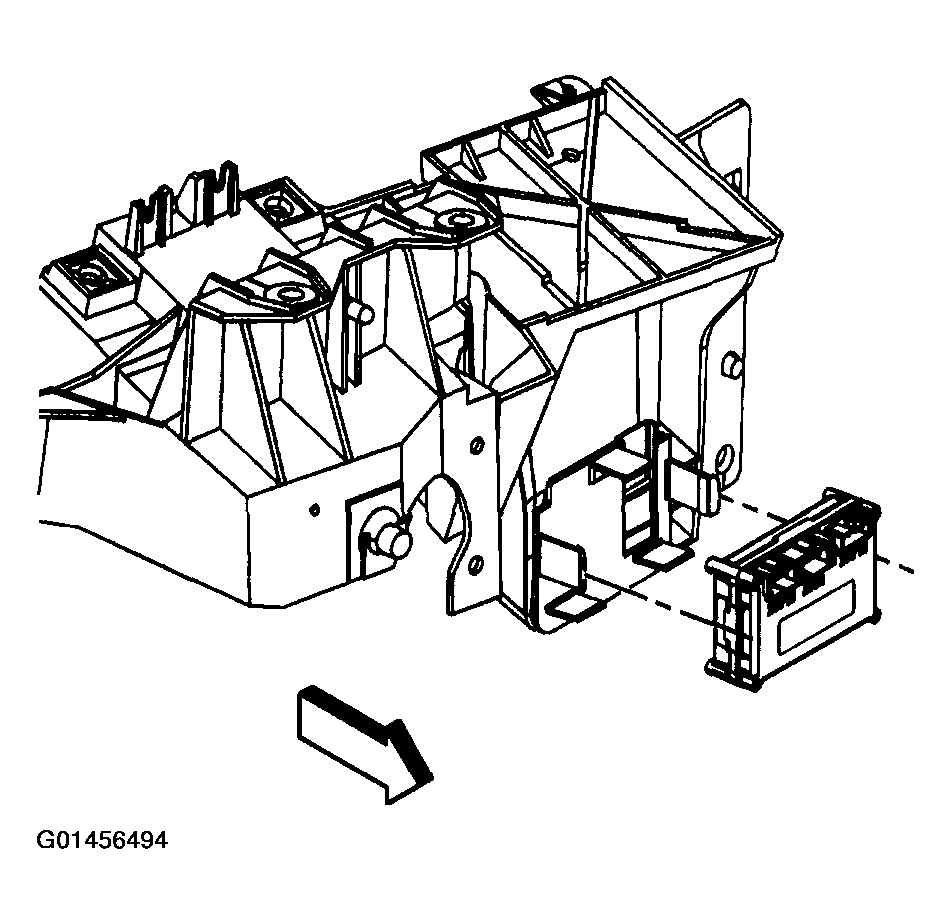

Fig 1: Installing Shift Control Module To Bracket
Courtesy of GENERAL MOTORS CORP.
Connect the shift control module electrical connectors.
Start the engine and test the automatic transfer case system for proper shift operation.

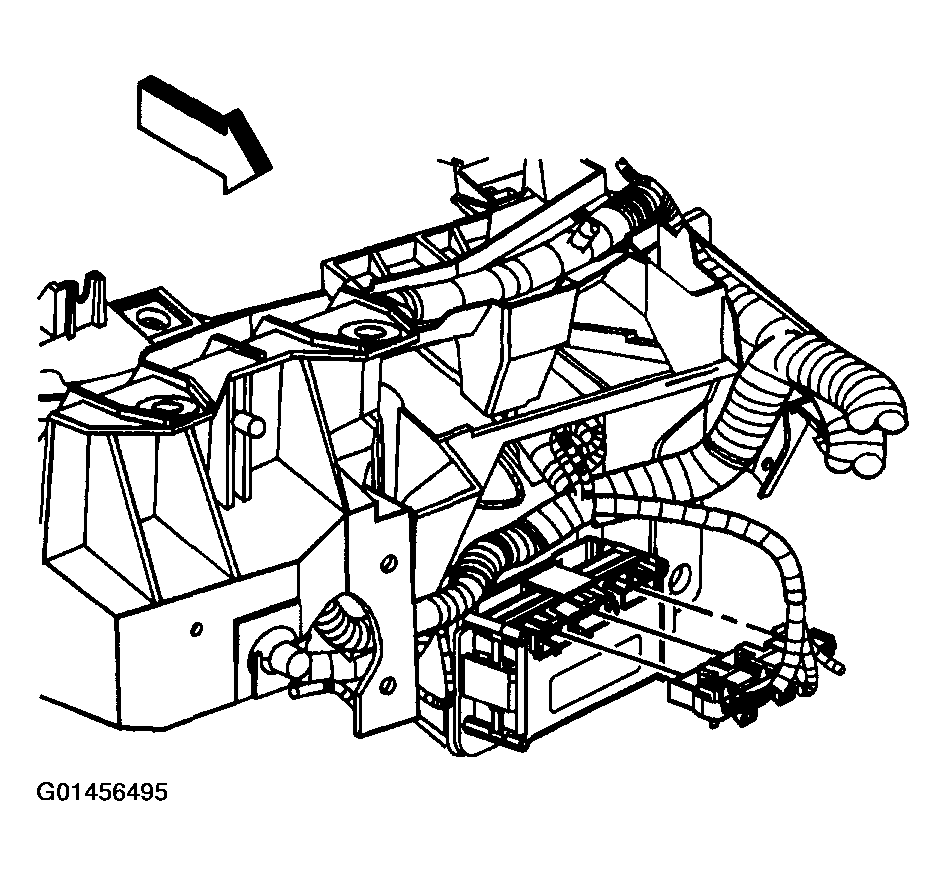

Fig 2: Connecting Shift Control Module Electrical Connectors
Courtesy of GENERAL MOTORS CORP.
