Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transfer case shield, if equipped. Refer to TRANSFER CASE SHIELD REPLACEMENT .
  2. Remove the front propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT - FRONT in Propeller Shaft.
  3. Disconnect the encoder motor electrical connector (2).

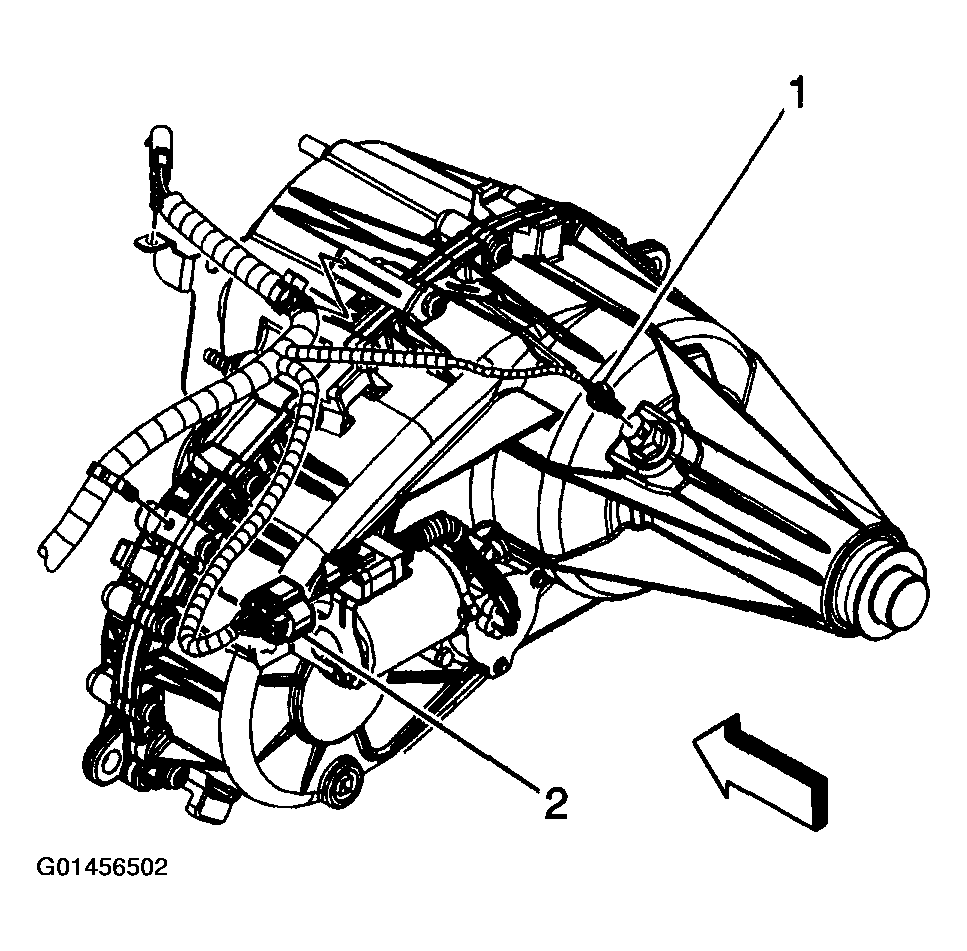

    Fig 1: Disconnecting Encoder Motor Electrical Connector
    G01456502Courtesy of GENERAL MOTORS CORP.
  4. Remove the encoder motor bolts.
  5. Remove the encoder motor.

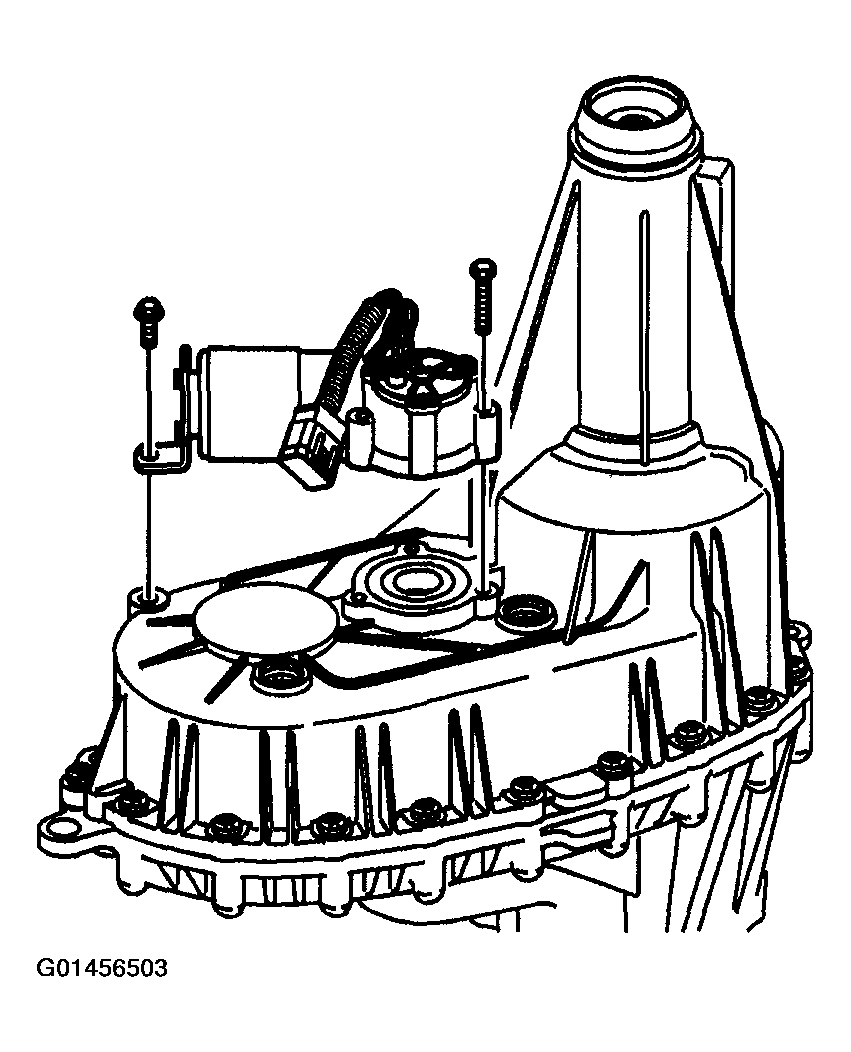

    Fig 2: Removing Encoder Motor
    G01456503Courtesy of GENERAL MOTORS CORP.
