Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

Important:  If the gasket or the seal becomes damaged, replace it. DO NOT use any type of silicone sealer or liquid gasket maker in place of the seal or gasket.

  1. Install a NEW transfer case adapter seal.
  2. Install the transfer case adapter.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the transfer case adapter bolts.

    Tighten

    Tighten the bolts to 50 N.m (37 lb ft).

  4. Install the transfer case. Refer to TRANSFER CASE ASSEMBLY REPLACEMENT .

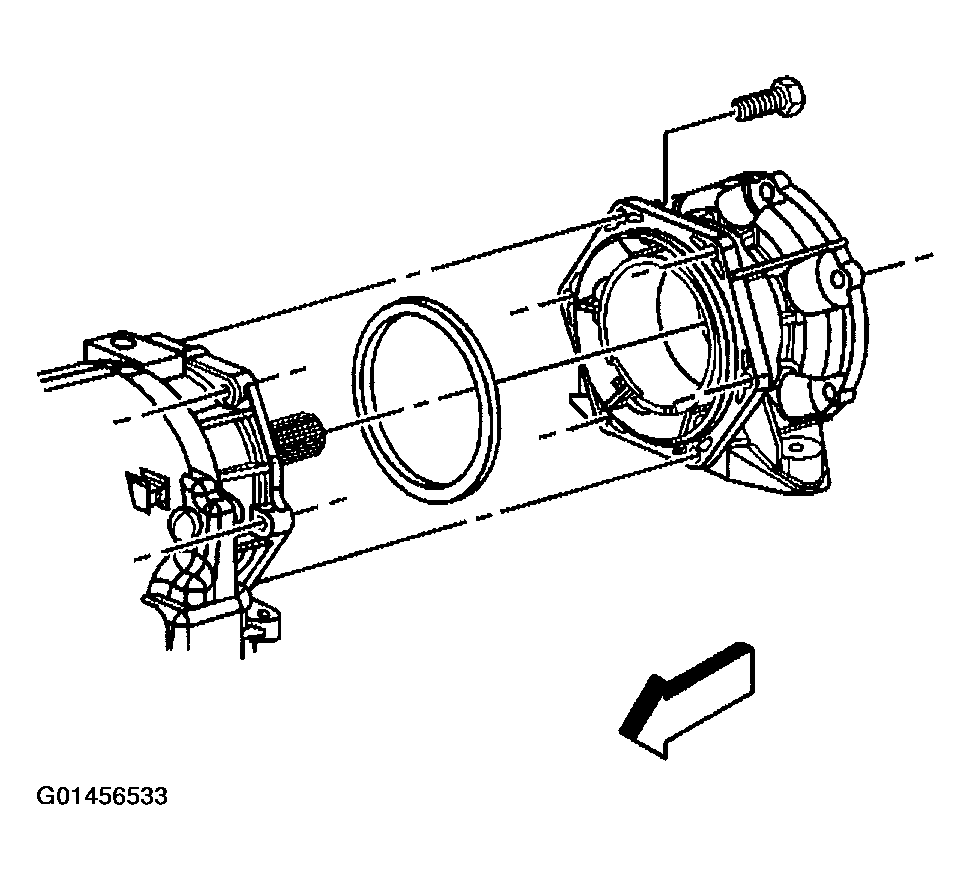

    Fig 1: Installing Transfer Case Adapter
    G01456533Courtesy of GENERAL MOTORS CORP.
