Transfer Case Control Connector End Views

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

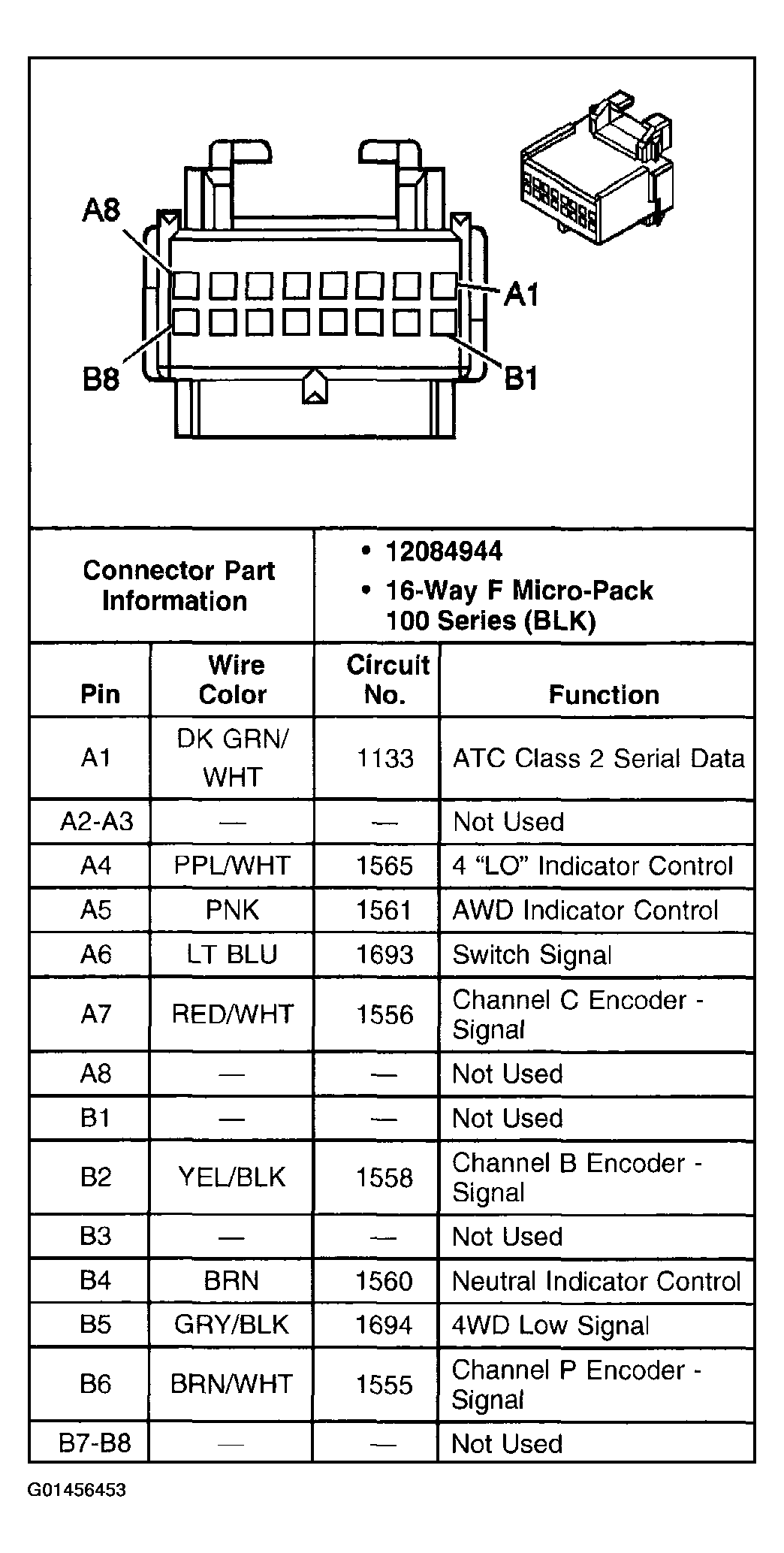

Fig 1: Identifying Transfer Case Shift Control Module - C1 Terminals

Courtesy of GENERAL MOTORS CORP.

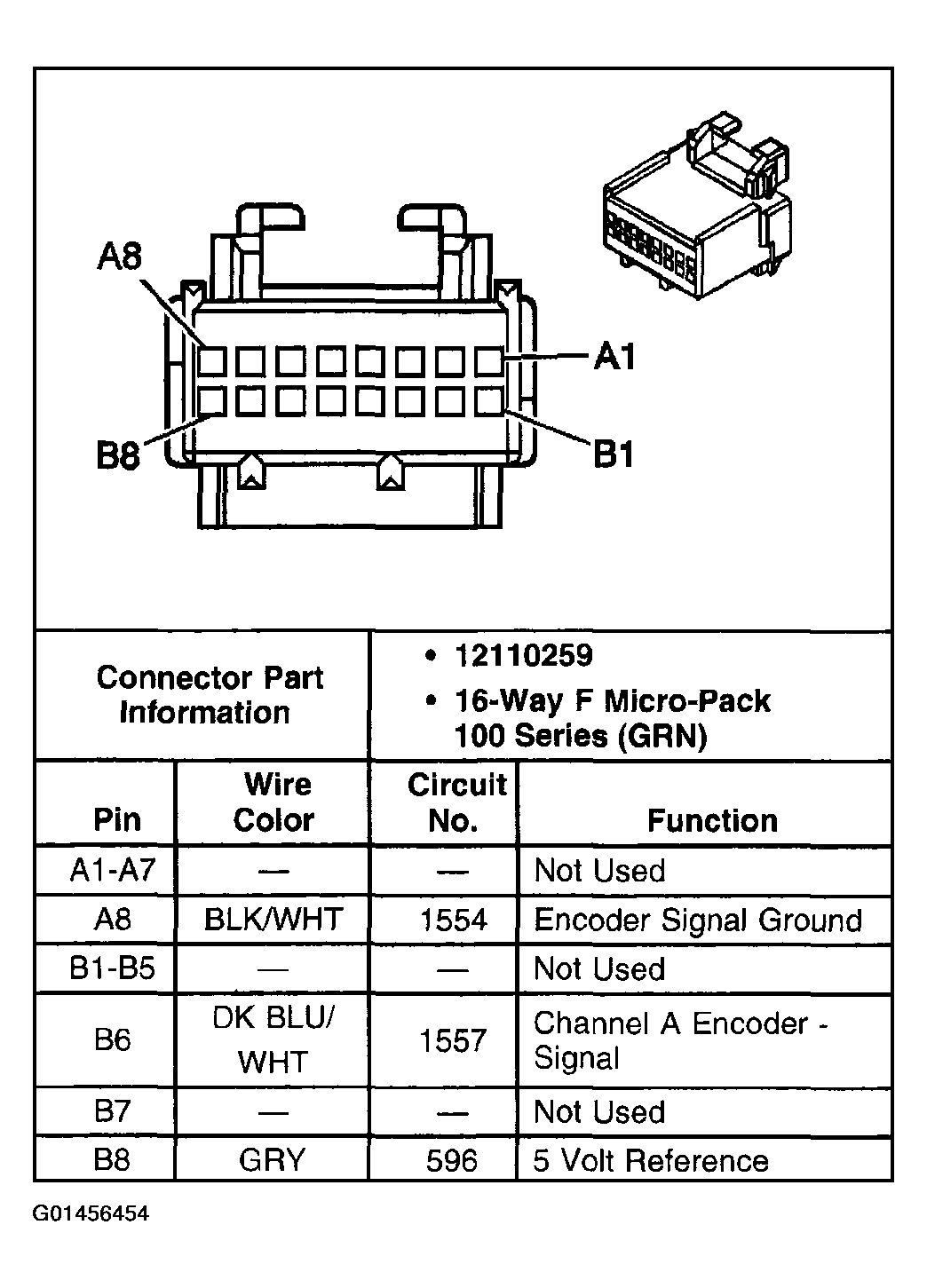

Fig 2: Identifying Transfer Case Shift Control Module - C2 Terminals

Courtesy of GENERAL MOTORS CORP.

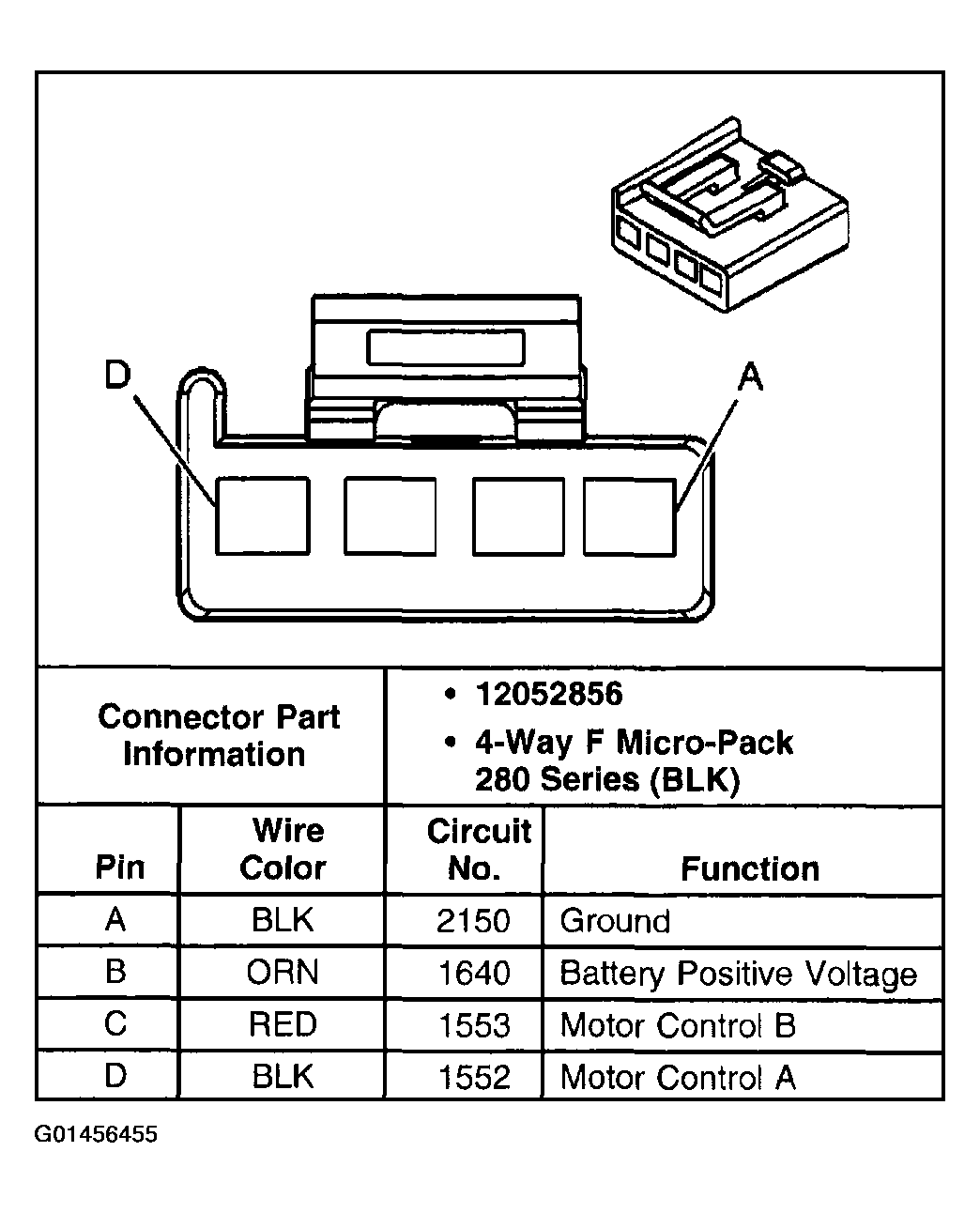

Fig 3: Identifying Transfer Case Shift Control Module - C3 Terminals

Courtesy of GENERAL MOTORS CORP.

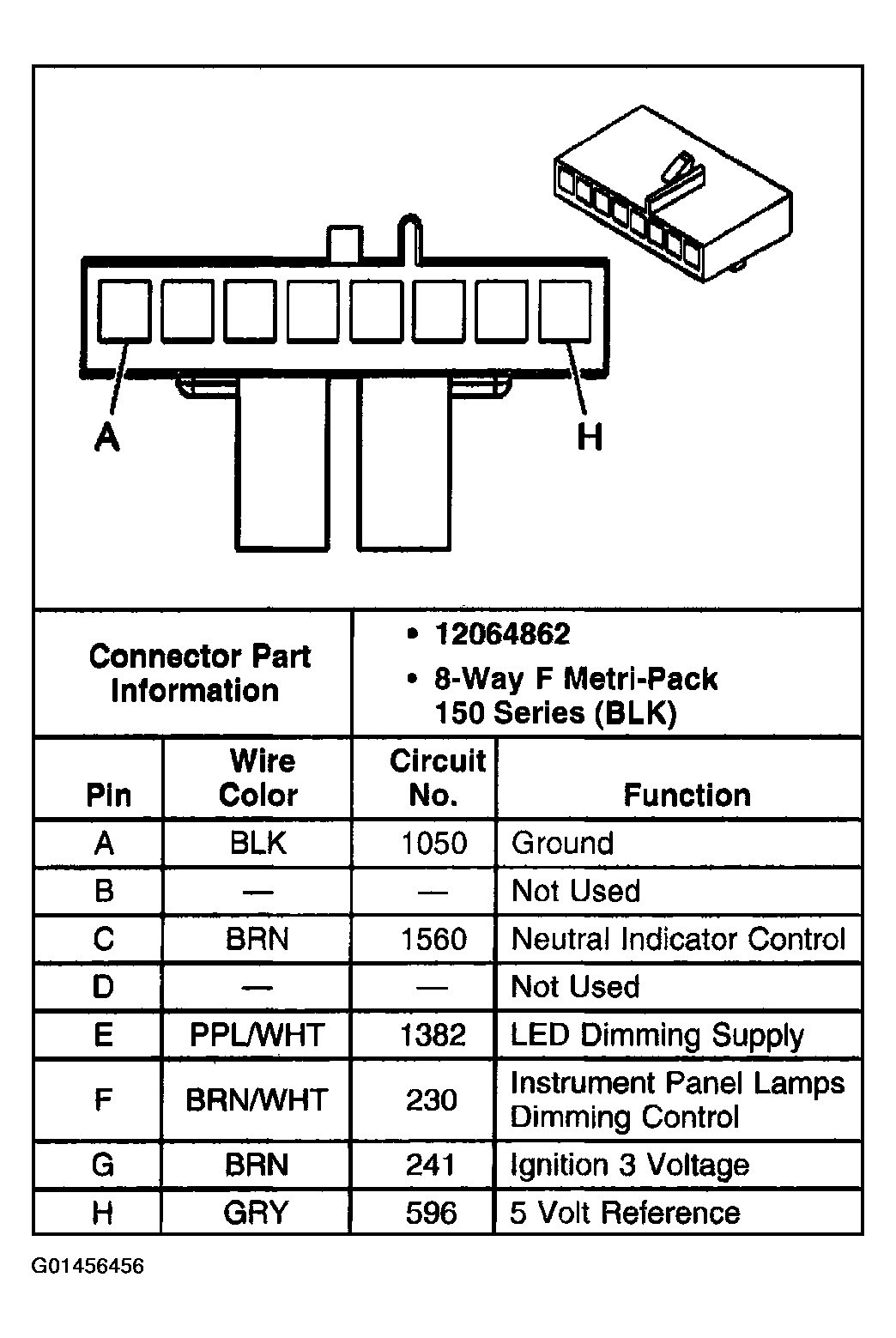

Fig 4: Identifying Transfer Case Shift Control Switch - C1 Terminals

Courtesy of GENERAL MOTORS CORP.

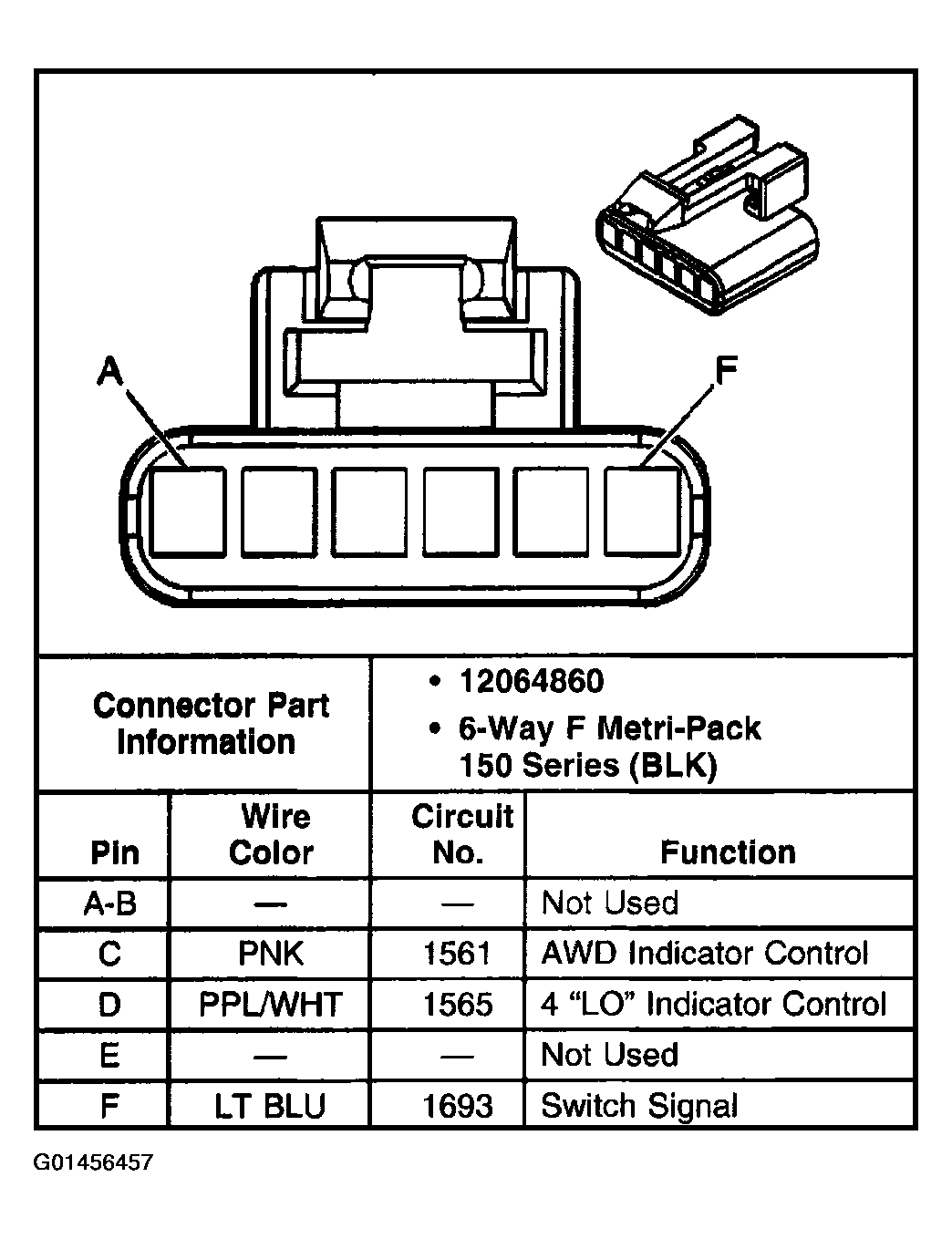

Fig 5: Identifying Transfer Case Shift Control Switch - C2 Terminals

Courtesy of GENERAL MOTORS CORP.

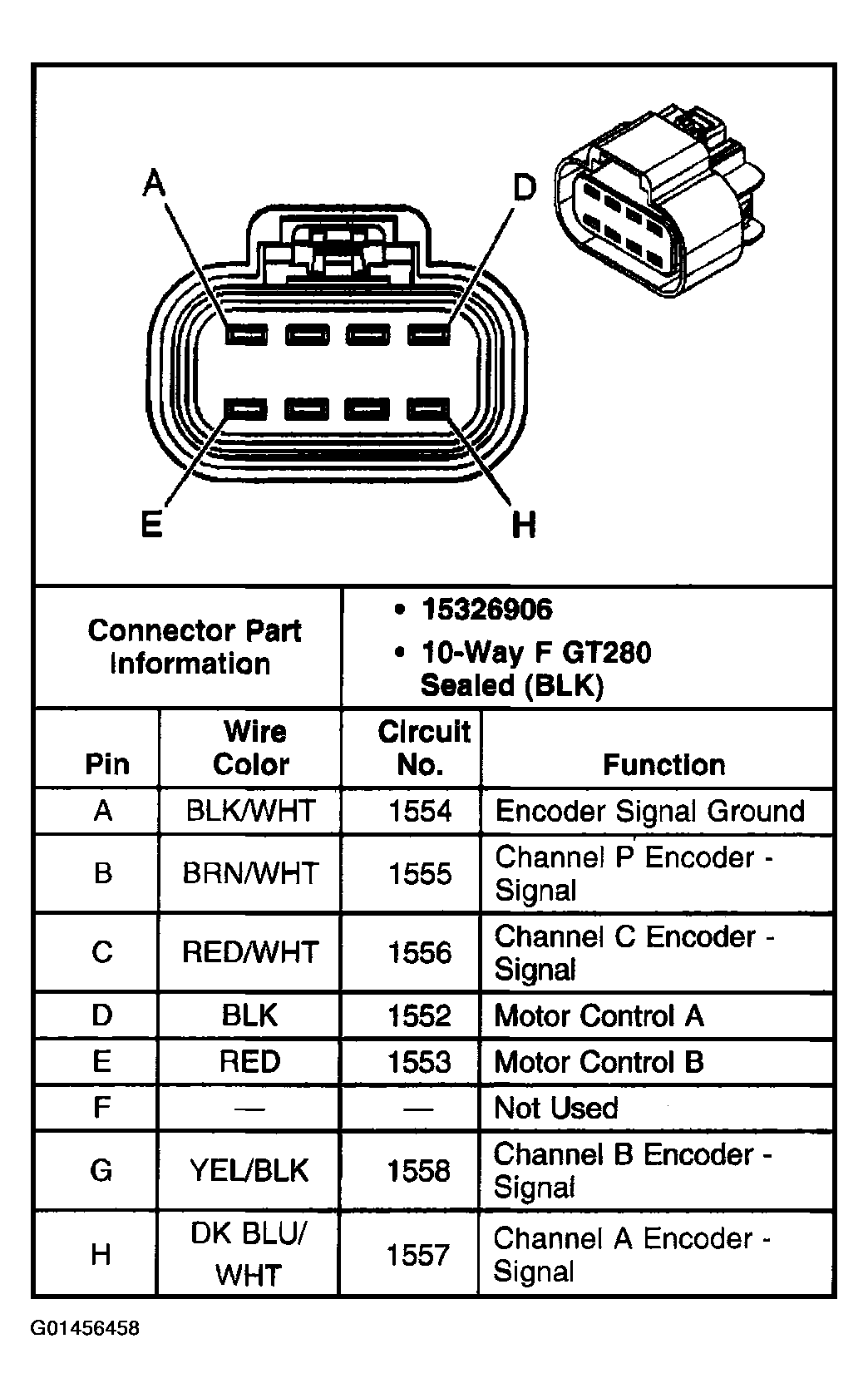

Fig 6: Identifying Transfer Case - Encoder Motor Terminals

Courtesy of GENERAL MOTORS CORP.
