Transfer Case Control Component Views

WARNING: This page is about a different car, the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Cadillac Escalade ESV. However, it is still accessible from the selected car via links, so may be relevant.

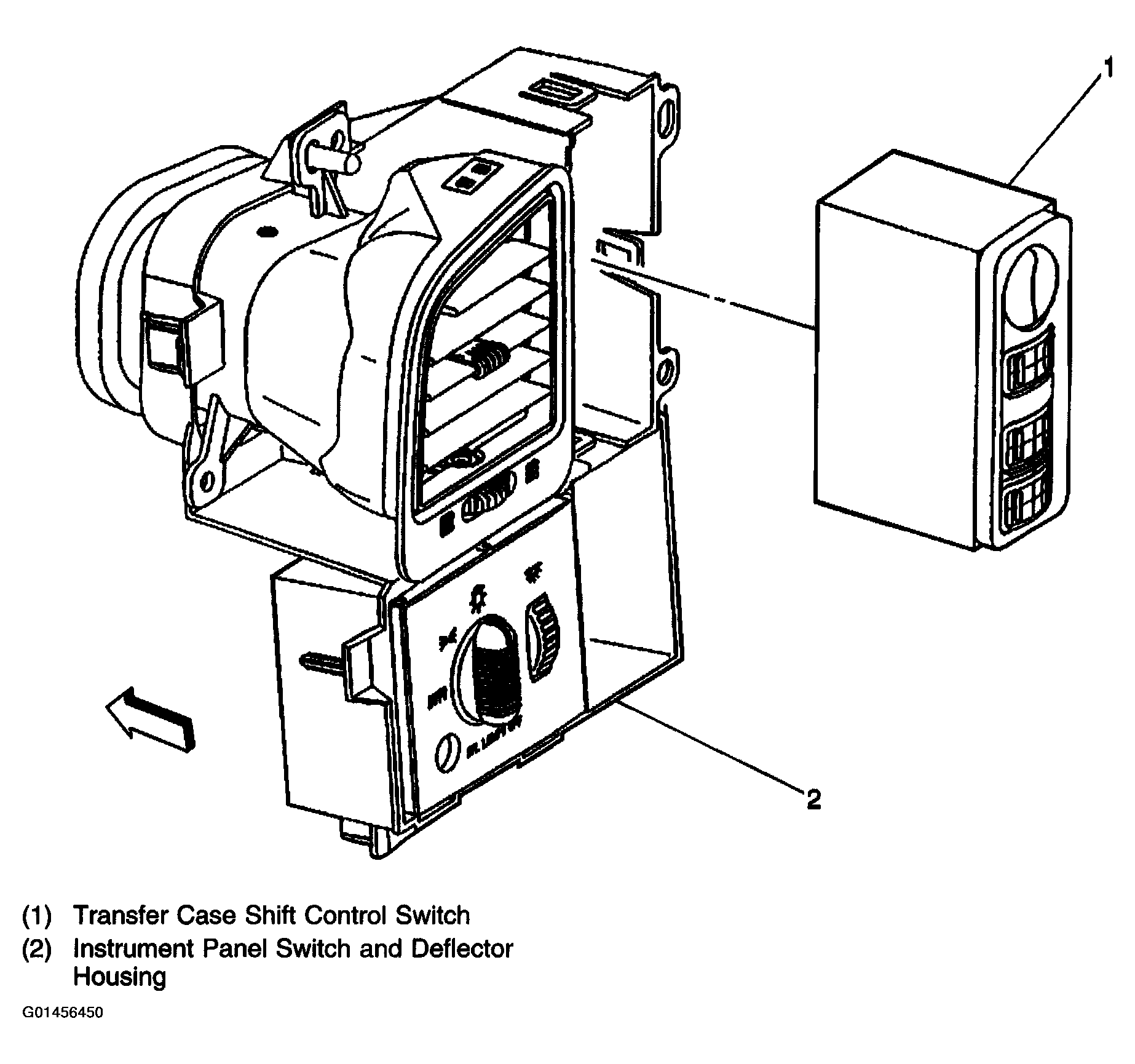

Fig 1: Locating Transfer Case Shift Control Switch
G01456450Courtesy of GENERAL MOTORS CORP.

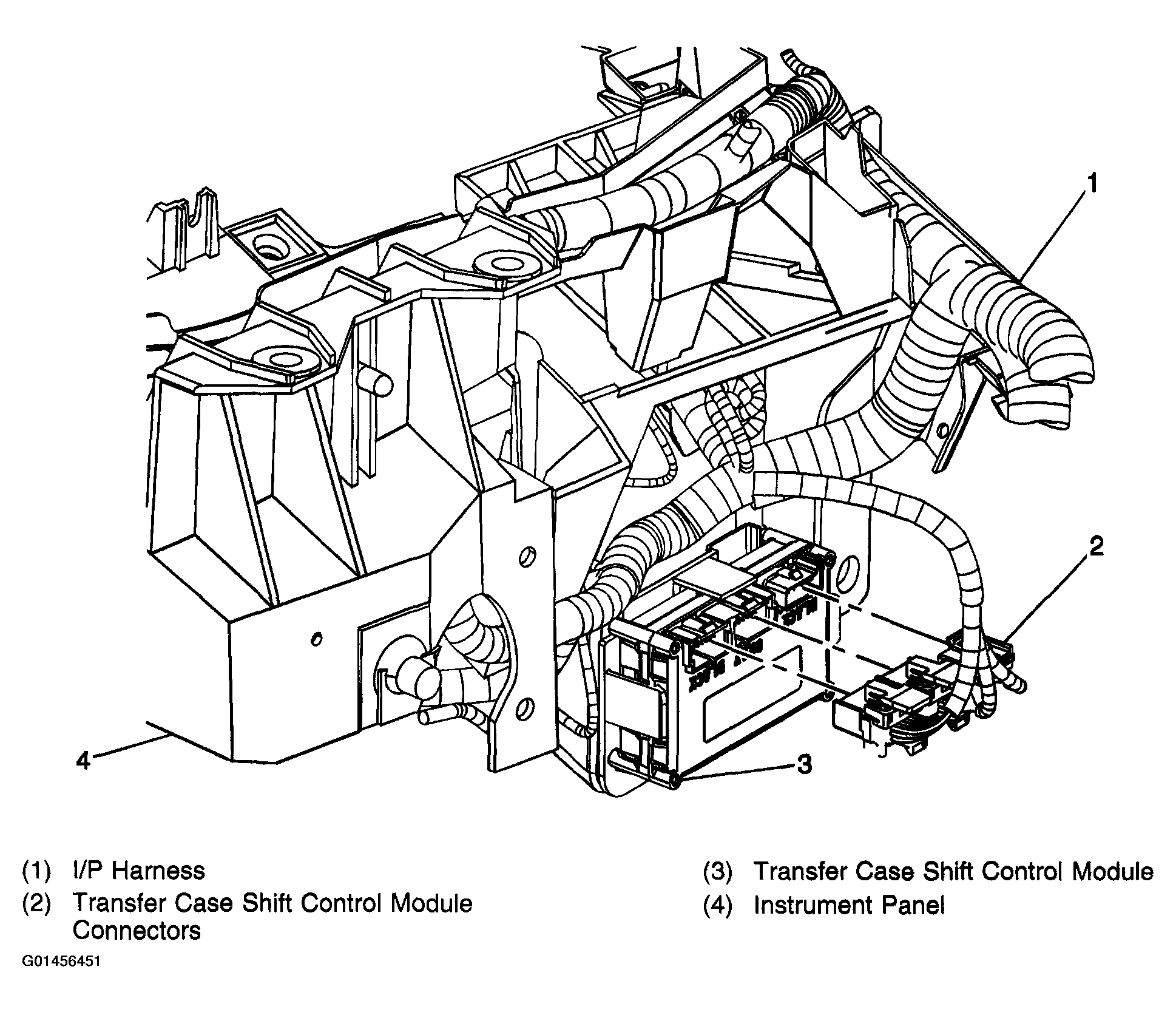

Fig 2: Locating Transfer Case Shift Control Module
G01456451Courtesy of GENERAL MOTORS CORP.

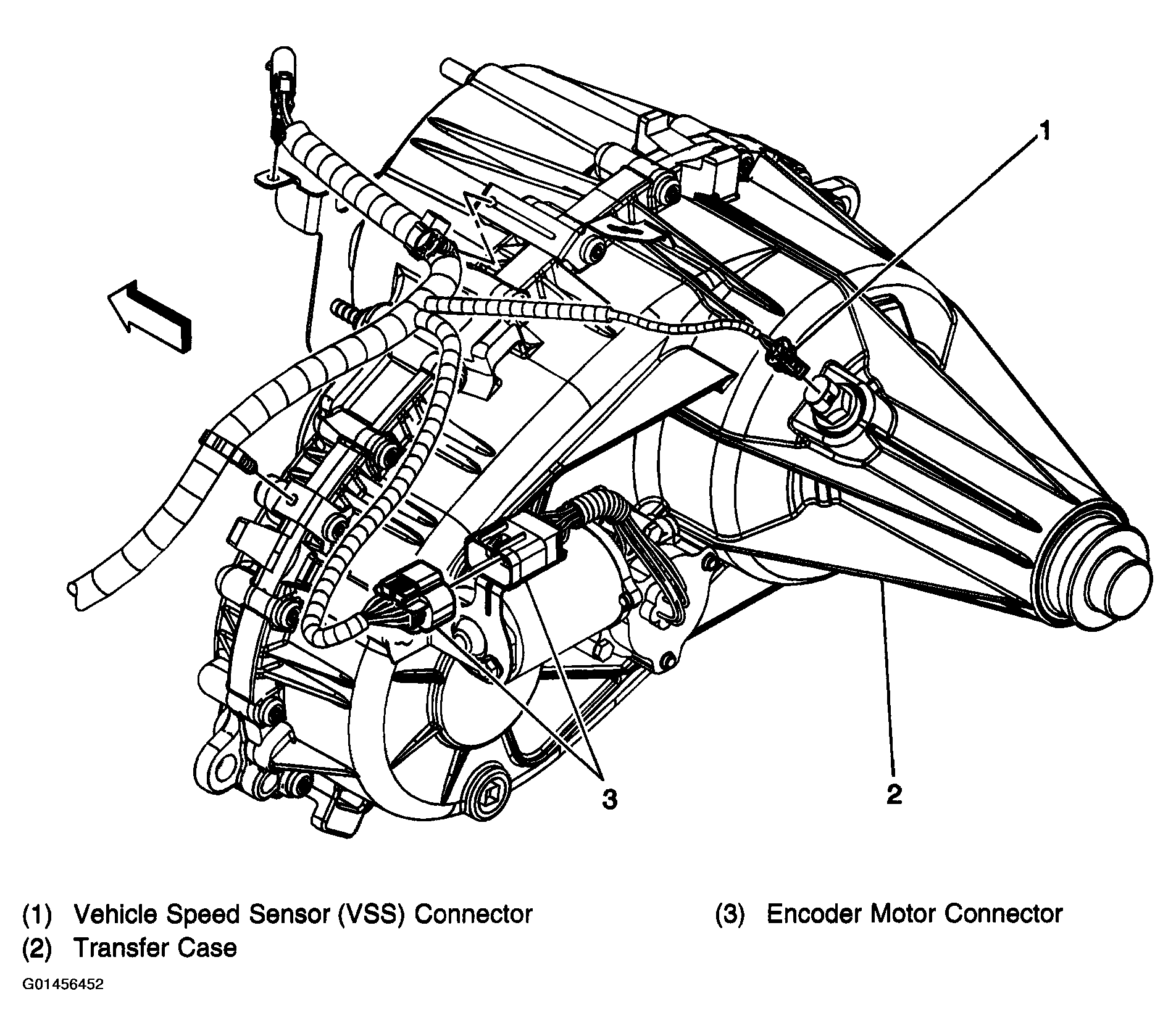

Fig 3: Identifying Transfer Case-BW 4482-NR4
G01456452Courtesy of GENERAL MOTORS CORP.
