Removal Procedure

  1. Remove the window. Refer to Window Replacement - Front Door .
  2. Remove the window glass weatherstrip. Refer to Weatherstrip Replacement - Front Door Window .
  3. Remove the window run channel bolts.
  4. Remove the front and the rear window run channels from the door.

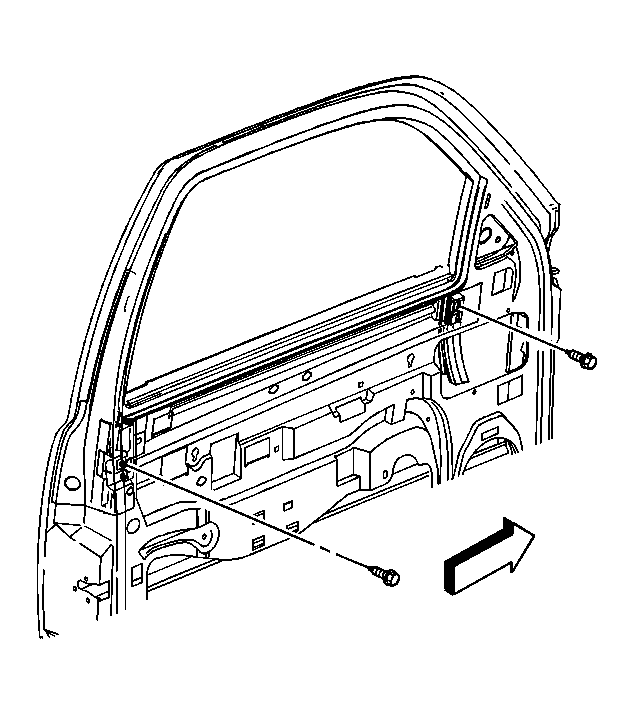

    5. Fig 1: Removing Front & Rear Window Run Channel Bolts
    GM370114Courtesy of GENERAL MOTORS CORP.
