Installation Procedure

  1. Install the connecting link into the sunroof channel (1).

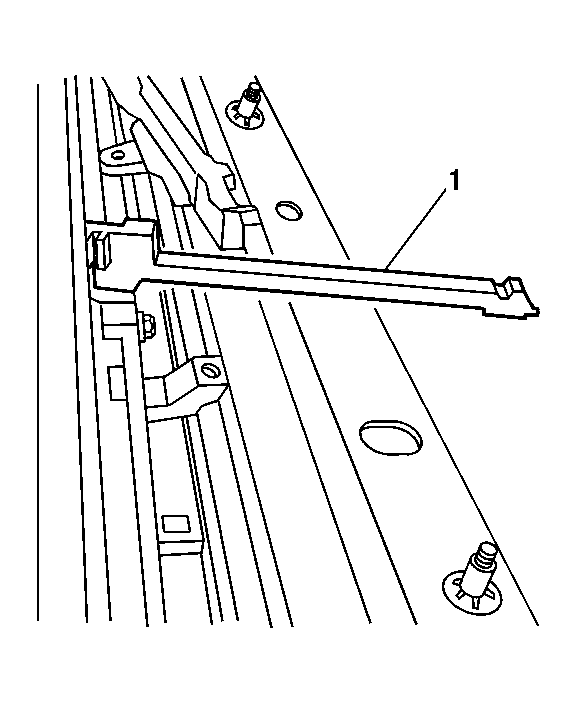

    2. Fig 1: View Of Connecting Link
    GM1364296Courtesy of GENERAL MOTORS CORP.
  2. Install the system stopper (1) by pressing into place.

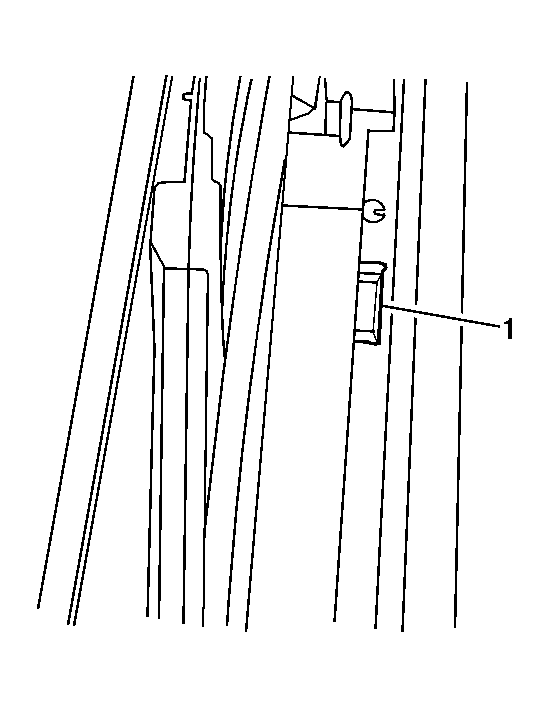

    3. Fig 2: View Of System Stopper
    GM1364308Courtesy of GENERAL MOTORS CORP.
  3. Install the water channel guide (1) by pushing the water channel guide into the rear of the track.

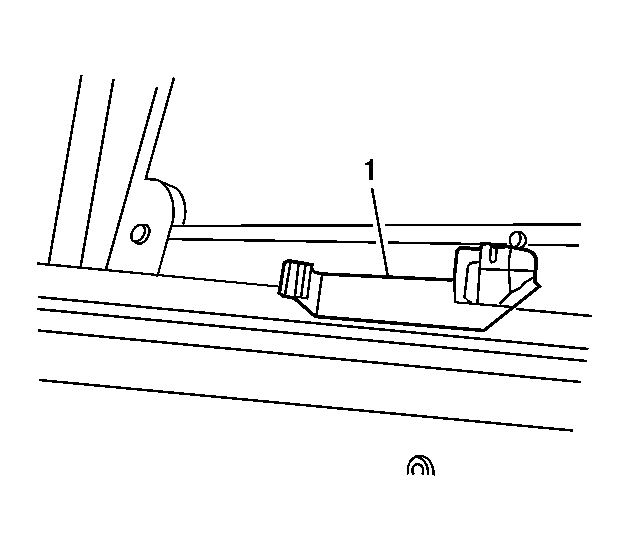

    4. Fig 3: View Of Water Channel Guide
    GM1364289Courtesy of GENERAL MOTORS CORP.
  4. Using the sunroof motor manual override (1), move the sunroof lift mechanism to the forward position.

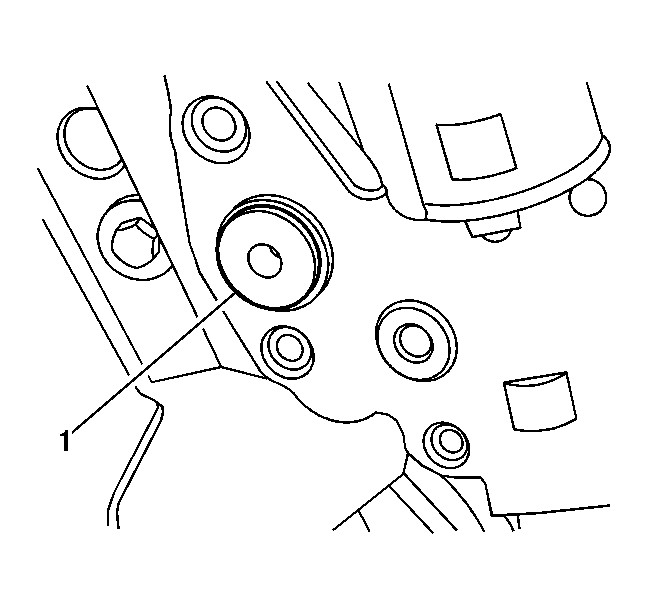

    5. Fig 4: Identifying Sunroof Motor Manual Override
    GM1364285Courtesy of GENERAL MOTORS CORP.
  5. Align the lift mechanism to the connecting link.
  6. Install the pin guide (2) and secure with pin guide screw (1).

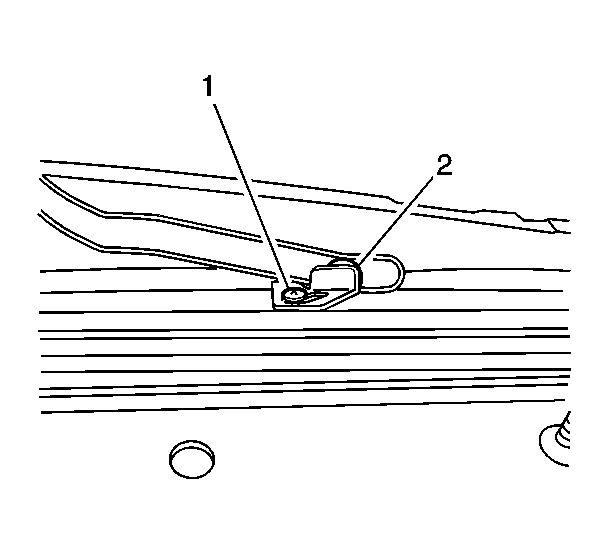

    7. Fig 5: View Of Pin Guide Screw & Pin Guide
    GM1364286Courtesy of GENERAL MOTORS CORP.
  7. Install the roof drain channel. Refer to Roof Drain Channel Replacement .
  8. Install the sunroof module into the vehicle. Refer to Sunroof Module Assembly Replacement .
  9. Install the sunroof window. Refer to Sunroof Window Replacement .
