Installation Procedure

  1. Position the seat back frame on the seat.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the recliner arm attachment bolts (2).

    Tighten:  Tighten the bolts to 53 N.m (39 lb ft).

  3. Install the inboard pivot bolt (1).

    Tighten:  Tighten the bolt to 35 N.m (26 lb ft).

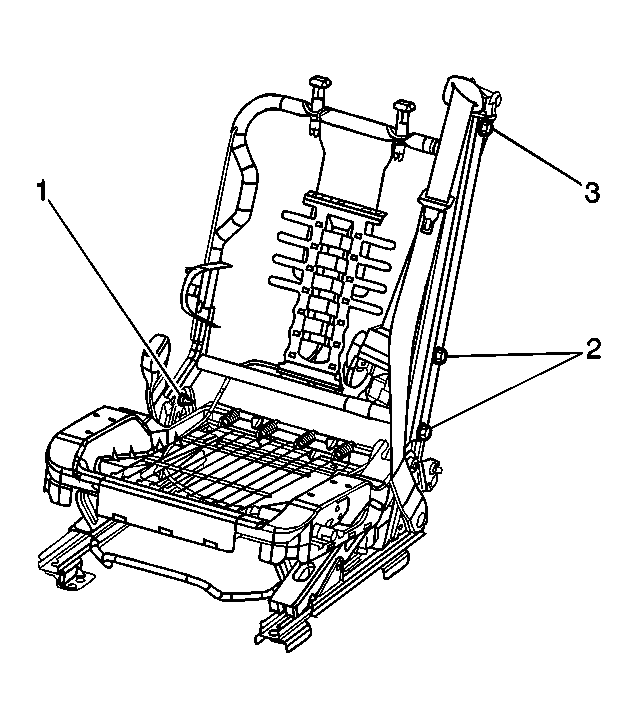

    4. Fig 1: View Of Inboard Pivot Bolt & Recliner Arm Attachment Bolts
    GM386187Courtesy of GENERAL MOTORS CORP.
  4. Install the seat belt retractor. Refer to Seat Belt Retractor Replacement - Left Front or Seat Belt Retractor Replacement - Right Front in Seat Belts.
  5. Install the lumbar assembly (or power lumbar/bolster assembly if equipped). Refer to Lumbar Replacement - Front Seat .
  6. Install the seat back trim cover and pad. Refer to Seat Back Cover and Pad Replacement - Front (W/O ULT)  or Seat Back Cover and Pad Replacement - Front (W/ULT) .
  7. Connect the lumbar cable (6) underneath the seat cushion (disconnect the wire harness if equipped with power lumbar).
    8. Fig 2: View Of Lumbar Cable And Front Seat Cushion Frame Components
    GM407184Courtesy of GENERAL MOTORS CORP.
  8. Install the seat trim panel. Refer to Trim Panel Replacement - Front Seat .
  9. Install the head restraint and guides. Refer to Head Restraint Replacement (Cadillac)  or Head Restraint Replacement (Non-Cadillac)  or Head Restraint Replacement (Folding) .
  10. Install the seat into the vehicle. Refer to Seat Replacement - Front Bucket .
