Installation Procedure

  1. Position the hitch platform to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the platform hitch bolts to the frame rails and the rear bumper.

    Tighten:  Tighten the bolts to 125 N.m (92 lb ft).

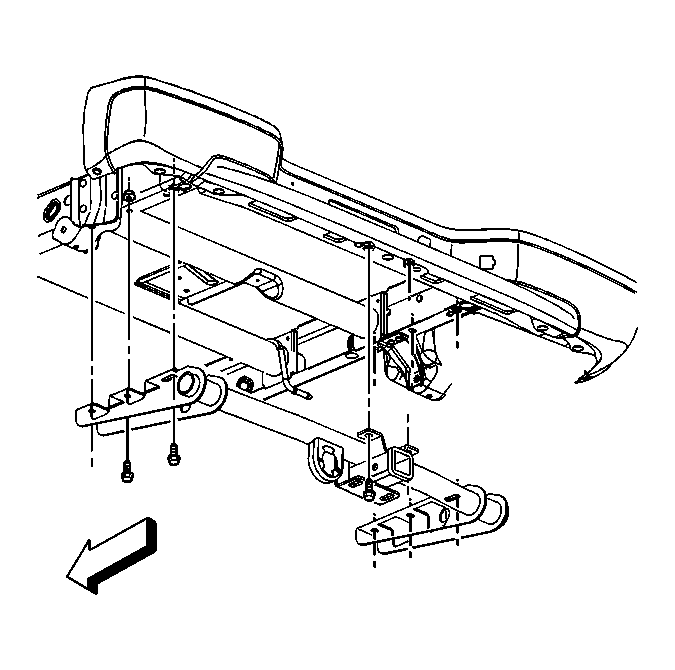

    3. Fig 1: Installing Hitch Platform
    GM349060Courtesy of GENERAL MOTORS CORP.
  3. Connect the trailer wiring harness.
    4. Fig 2: Connecting Trailer Wiring Harness
    GM399253Courtesy of GENERAL MOTORS CORP.
