Installation Procedure

  1. Install the rocker panel molding bracket (4) to the vehicle.
  2. Install the rivets (3) that secure the rocker panel molding bracket (4) to the vehicle.
  3. Install the assist step brackets (5) to the vehicle.
    4. NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the 5 retaining bolts (1) to the inner side of the rocker panel.

    Tighten:  Tighten the bolts (1) to 29 N.m (21 lb ft).

  5. Install the 5 retaining bolts (2) to the inner side of the rocker panel.

    Tighten:  Tighten the bolts (1) to 10 N.m (89 lb in).

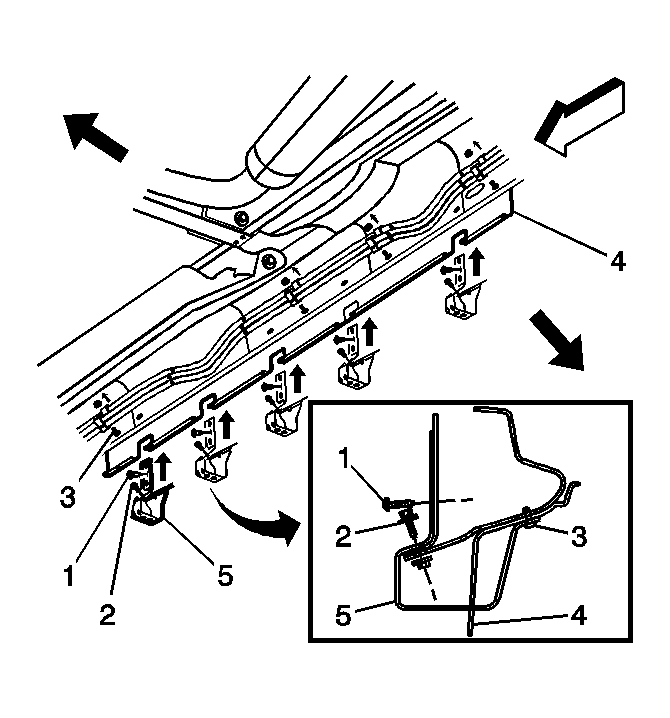

    6. Fig 1: Installing Rocker Panel Molding Bracket & Assist Step Brackets (Z-71)
    GM756541Courtesy of GENERAL MOTORS CORP.
  6. Install the 5 stud plates (1) to the 5 assist step brackets (2).

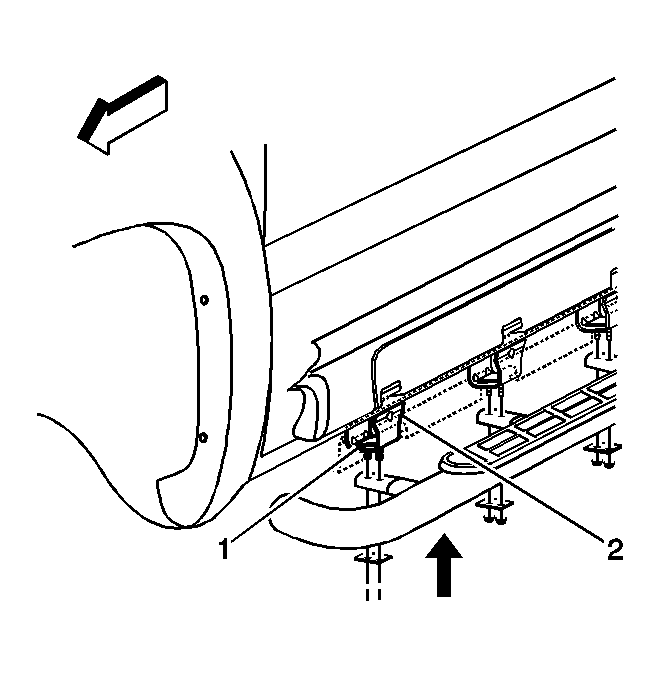

    7. Fig 2: Installing Stud Plates To Assist Step Brackets (Z-71)
    GM756547Courtesy of GENERAL MOTORS CORP.
  7. Install the rivets (1) that secure the assist step brackets to the rocker panel.

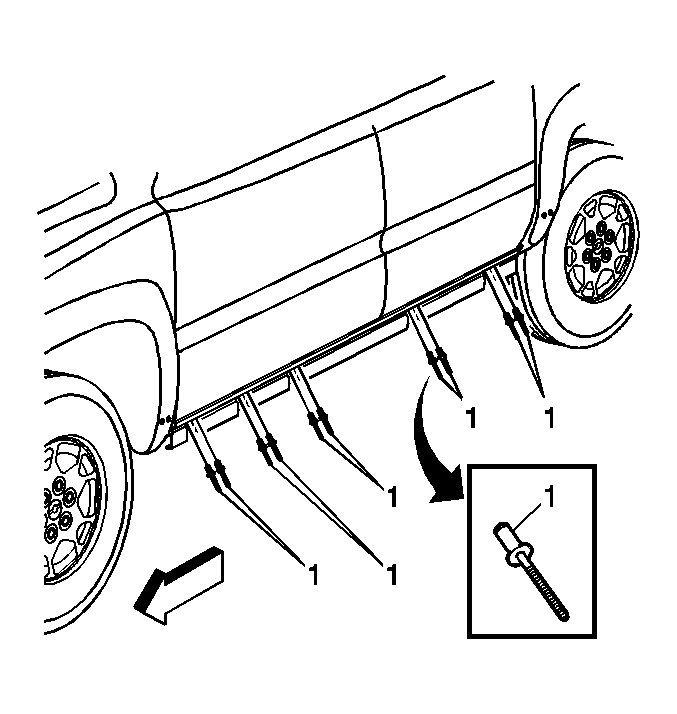

    8. Fig 3: Installing Rivets Securing Assist Step Brackets To Rocker Panel (Z-71)
    GM756551Courtesy of GENERAL MOTORS CORP.
  8. Install the rocker panel molding. Refer to Molding Replacement - Rocker Panel (Z-71) or Molding Replacement - Rocker Panel (Utility) in Exterior Trim.
  9. With the aid of an assistant, install the assist step to the vehicle.
  10. Install the spacers and the nuts (1).

    Tighten:  Tighten the bolts (1) to 29 N.m (21 lb ft).

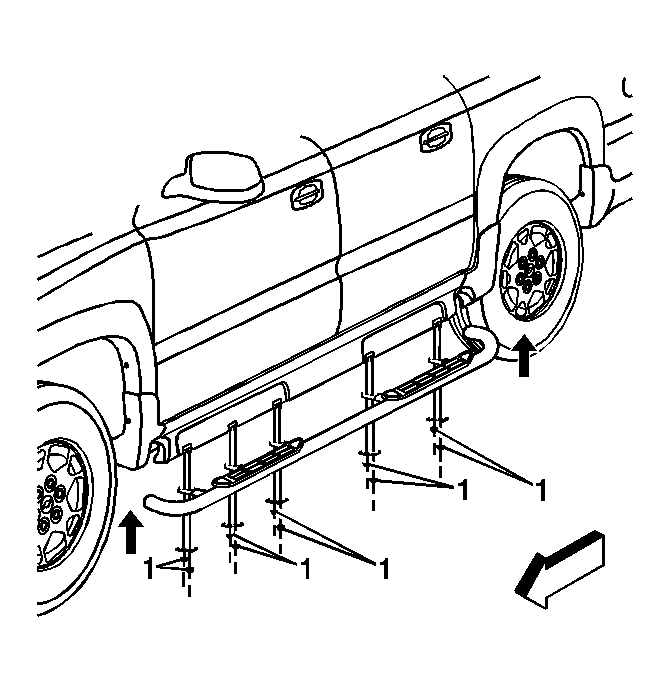

    11. Fig 4: Installing Assist Step Spacers & Nuts (Z-71)
    GM756539Courtesy of GENERAL MOTORS CORP.
