Installation Procedure

    IMPORTANT: Use the thread locker GM P/N 12345382 to all bolt threads prior to assembly.
  1. Install the assist step brackets to the vehicle.
  2. Install the bolts (6) to the brackets and ensure that the brackets are seated securely to the inner rocker panel.
  3. Install the heater and A/C tubes retaining nuts to the studs, if equipped. Refer to Heater Pipe Replacement - Auxiliary in Heating, Ventilation, and Air Conditioning.
  4. With an assistant, install the assist step to the vehicle.
  5. Install the bolts (3,1) to the assist step bracket, and leave the bolts loose.

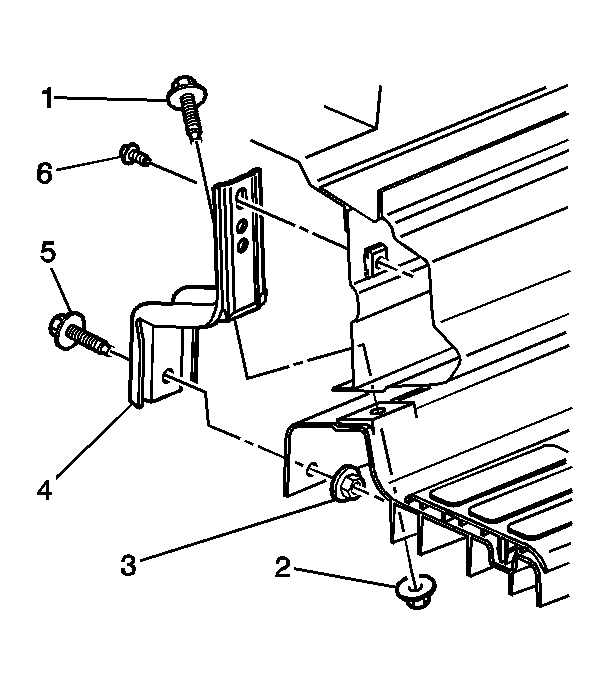

    6. Fig 1: Installing Assist Step Brackets (Escalade)
    GM695543Courtesy of GENERAL MOTORS CORP.
  6. Install the bottom fender bolt (2) and the washer to the vehicle.
    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Tighten the assist step fasteners in the following sequence:

    Tighten:

    1. Tighten the front fender bolt to 25 N.m (18 lb ft).
    2. Tighten the bracket bolt to 25 N.m (18 lb ft).
    3. Tighten the assist step bracket bolt (2) to 9 N.m (80 lb in).
    4. Tighten the assist step to the bracket bolt to 9 N.m (80 lb in).

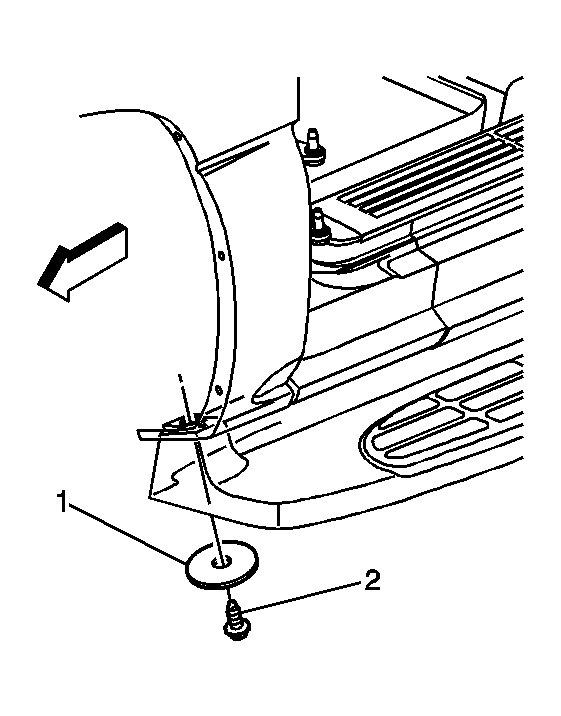

    8. Fig 2: Installing Bottom Fender Bolt (Escalade)
    GM695514Courtesy of GENERAL MOTORS CORP.
  8. Install the assist step rear cover to the vehicle.
  9. Install the push-in retainer.

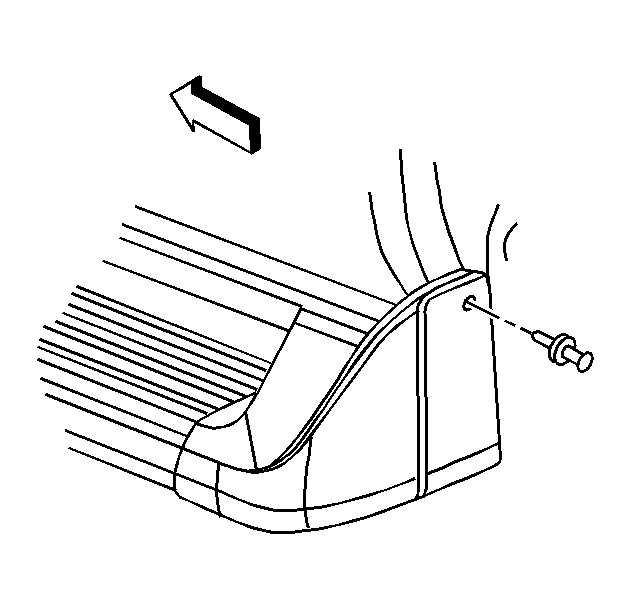

    10. Fig 3: Installing Assist Step Rear Cover Push-In Retainer (Escalade)
    GM768234Courtesy of GENERAL MOTORS CORP.
  10. Install the assist step front cover to the vehicle.
  11. Install the push-in retainer.

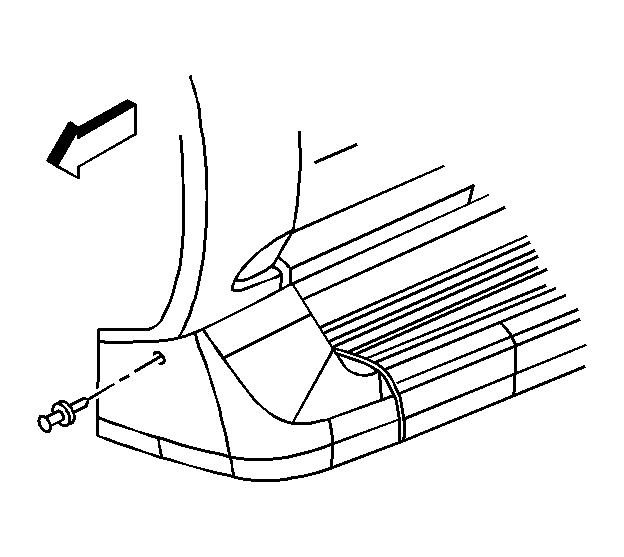

    12. Fig 4: Installing Assist Step Front Cover Push-In Retainer (Escalade)
    GM768242Courtesy of GENERAL MOTORS CORP.
