Installation Procedure

  1. Allow the DVD screen to hang.
  2. Connect the wire harness to the module.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 2 module retaining screws (2).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

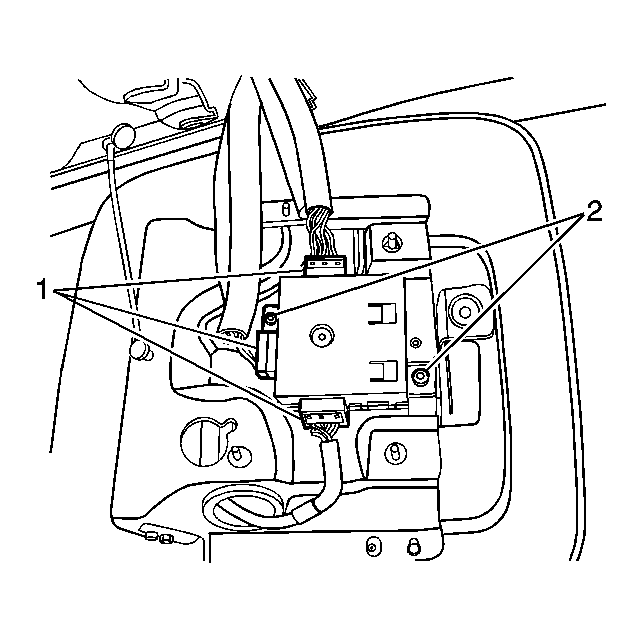

    4. Fig 1: Installing Module Retaining Screws (3rd Row)
    GM1410124Courtesy of GENERAL MOTORS CORP.
  4. Install the DVD player until the assembly retainer clicks in place.
  5. Install the 4 retaining screws (1).

    Tighten:  Tighten the screws to 9 N.m (80 lb in).

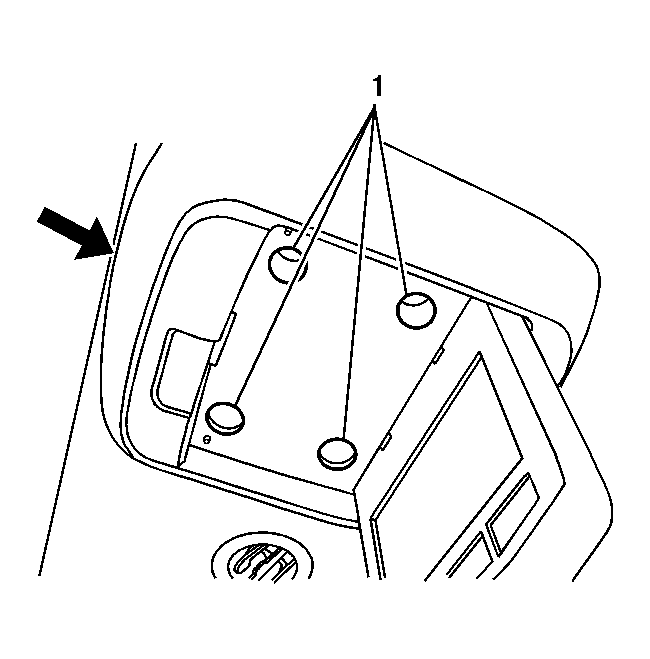

    6. Fig 2: Installing DVD Player Retaining Screws (3rd Row)
    GM1410126Courtesy of GENERAL MOTORS CORP.
