Adjustable Pedals Component Views

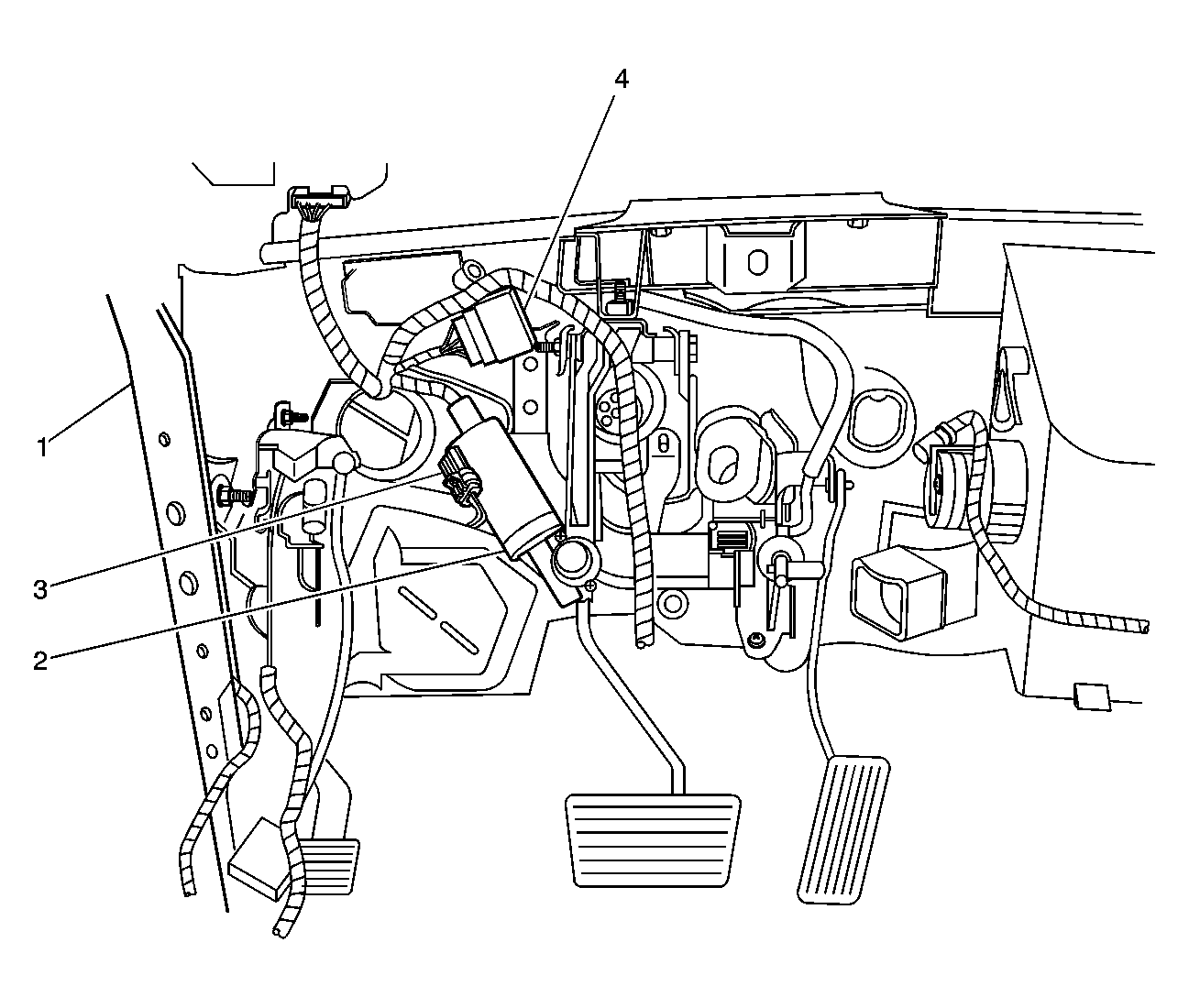

Fig 1: Adjustable Pedals Component View
GM867352Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A-Pillar
2 Electronic Adjustable Pedals (EAP) Assembly
3 Electronic Adjustable Pedals (EAP) Assembly Connector
4 Electronic Adjustable Pedals (EAP) Relay
