Automatic Level Control Suspension Component Views

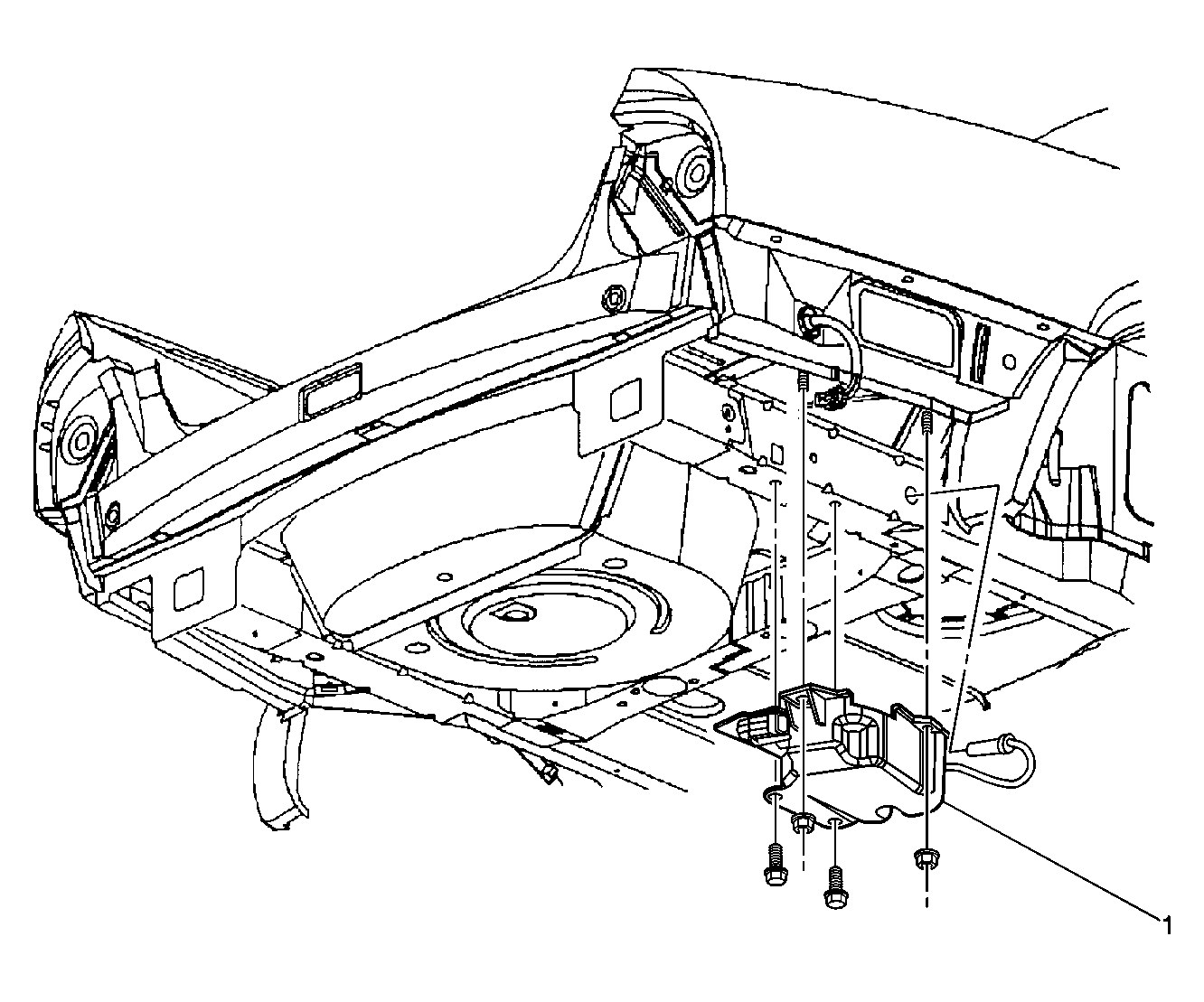

Fig 1: Under the Rear of the Vehicle, Near the Rear Suspension Carrier Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Level Control Compressor

Fig 2: Left Front of the Vehicle, Near the Strut Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Suspension Position Sensor - LR, RR Similar
