Defogger Schematics

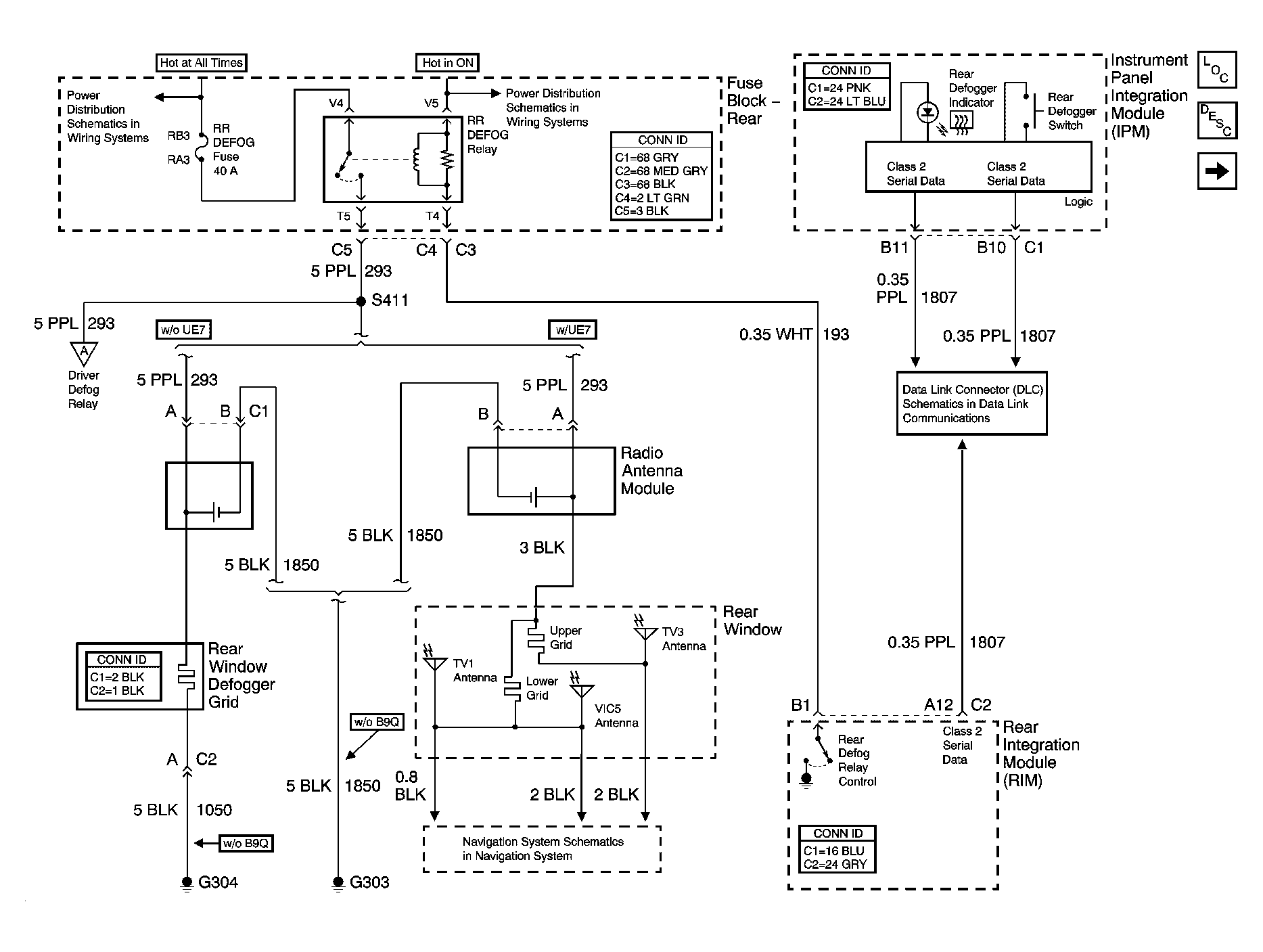

Fig 1: Defogger Schematic

GM1392785

Courtesy of GENERAL MOTORS CORP.

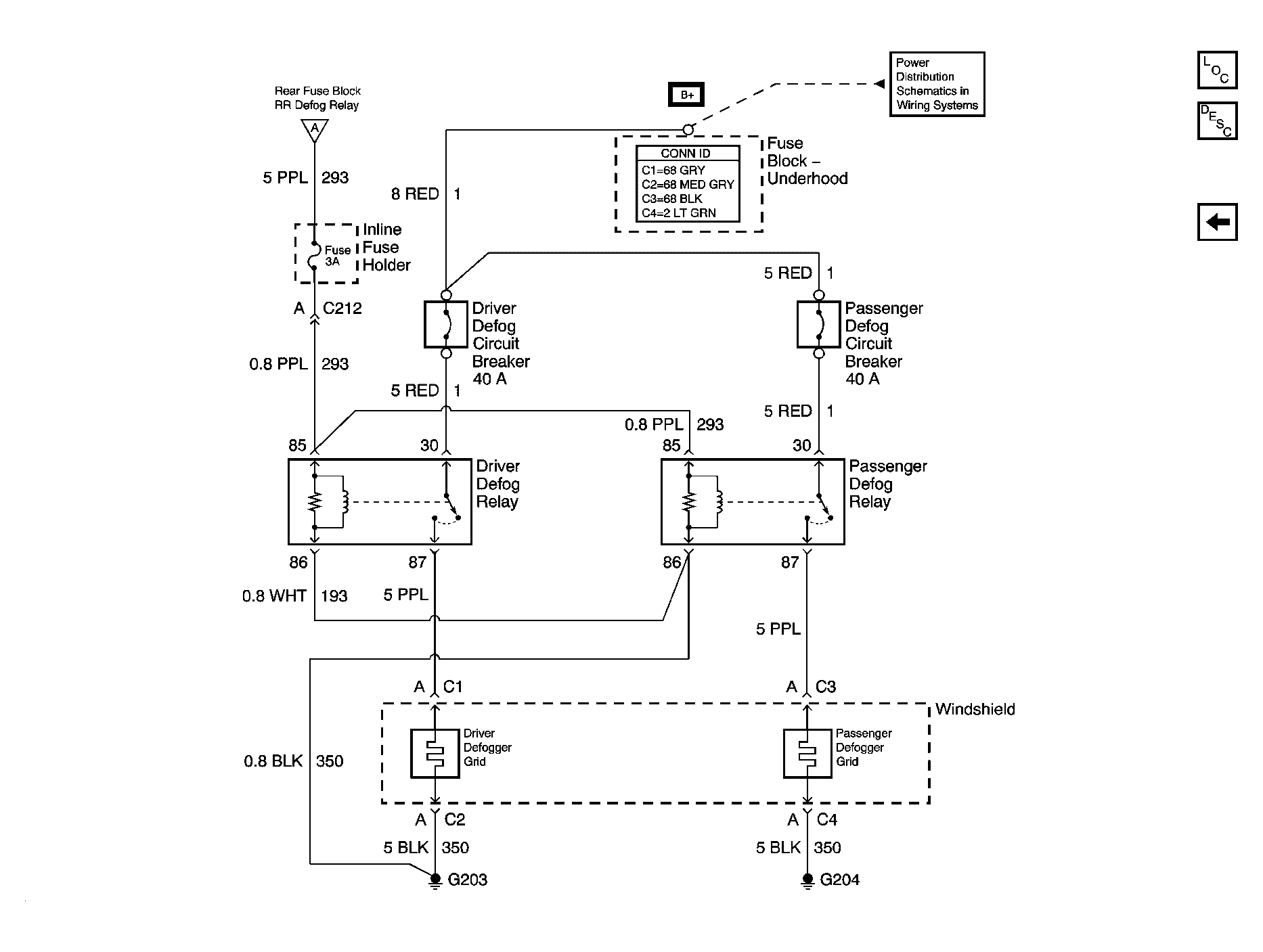

Fig 2: Windshield- w/ WC2/WC8 Schematic

GM1392786

Courtesy of GENERAL MOTORS CORP.
