Installation Procedure

  1. Connect the electrical connectors to the sunroof control module.
    2. Fig 1: View Of Sunroof Control Module Electrical Connectors
    GM107180Courtesy of GENERAL MOTORS CORP.
  2. Install the sunroof control module tabs (2) into the slots (3) located on the sunroof module assembly.
  3. Slide the sunroof control module (1) away from the sunroof motor/actuator until the sunroof control module is fully engaged to the sunroof module assembly.
    4. Fig 2: View Of Sunroof Module Assembly, Tabs & Slots
    GM468361Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Test the proper operation of the sunroof functions before installing the interior trim components.
  4. Reposition the headliner to the center and rearward roof magnets.
  5. Install the passenger side sail panel. Refer to Sail Panel Replacement (Standard) or Sail Panel Replacement (WC2, WC8) in Interior Trim.
    6. Fig 3: View Of Passenger Side Rear Sail Panel
    GM106197Courtesy of GENERAL MOTORS CORP.
  6. Install the passenger side rear seat belt retractor (4). Refer to Seat Belt Retractor Replacement - Rear in Seat Belts.
    7. Fig 4: View Of Rear Passenger Seat Belt Retractor
    GM474797Courtesy of GENERAL MOTORS CORP.
  7. Install the rear seat back. Refer to Seat Back Replacement - Rear (Standard) or Seat Back Replacement - Rear (WC2, WC8) in Seats.
    8. Fig 5: Locating Rear Seat Back Anchor Bolts
    GM106073Courtesy of GENERAL MOTORS CORP.
  8. Install the rear seat cushion. Refer Seat Cushion Replacement - Rear to in Seats.

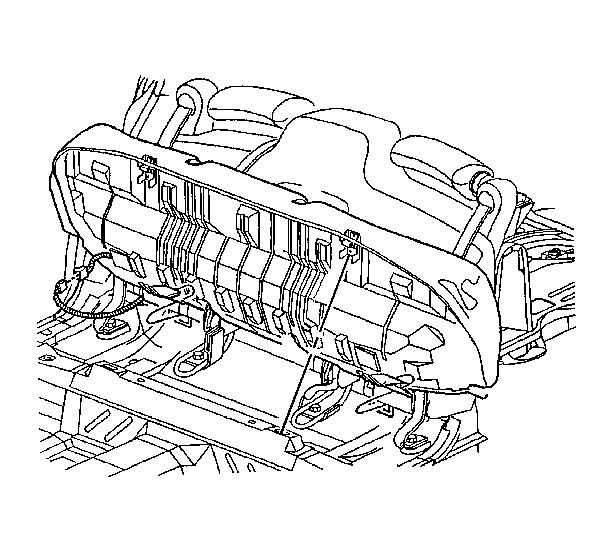

    9. Fig 6: View Of Rear Seat Cushion
    GM106069Courtesy of GENERAL MOTORS CORP.
  9. Align the upper center trim panel retainer, push inward in order to secure.
    10. Fig 7: View Of Upper Center Trim Panel
    GM493161Courtesy of GENERAL MOTORS CORP.
  10. Reposition the passenger rear door opening weatherstrip seal.
  11. Install the passenger side rear assist handle. Refer to Assist Handle Replacement in Interior Trim.
    12. Fig 8: Installing Passenger Side Rear Assist Handle
    GM295014Courtesy of GENERAL MOTORS CORP.
  12. Enable the SIR system. Refer to SIR Disabling and Enabling Zones in Restraints.
  13. Close the passenger rear door.
