Installation Procedure

    Fig 1: View Of Upper Strut Mounting Bolts
    GM402795Courtesy of GENERAL MOTORS CORP.
  1. Install the strut.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the 3 strut tower bolts and washers.

    Tighten:  Tighten 3 strut tower bolts to 66 N.m (49 lb ft).

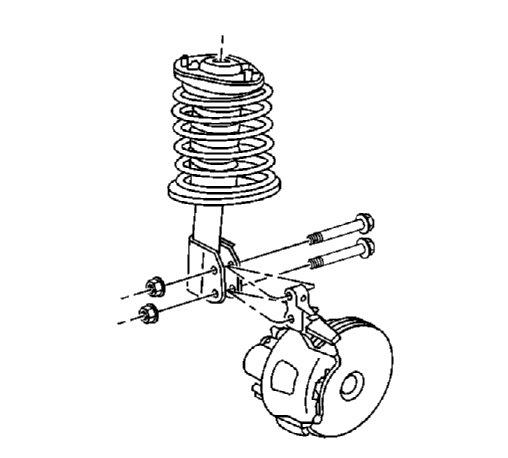

    3. Fig 2: View Of Strut To Knuckle Attaching Nuts & Bolts
    GM474722Courtesy of GENERAL MOTORS CORP.
  3. Install the strut to knuckle bolts and nuts.

    Tighten:  Tighten the strut to knuckle bolts and nuts to 177 N.m (131 lb ft).

  4. Install the brake line bracket to strut.

    Tighten:  Tighten the brake line bracket to 23 N.m (17 lb ft).

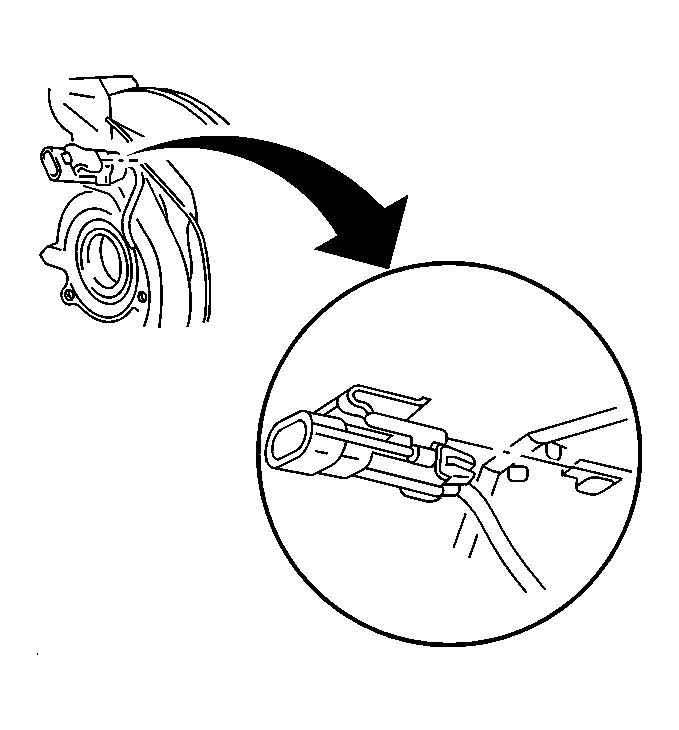

    5. Fig 3: View Of Front Wheel Speed Sensor Connector
    GM105002Courtesy of GENERAL MOTORS CORP.
  5. Install the wheel speed sensor bracket to dust shield.
  6. Connect the wheel speed sensor connector.
  7. Install the wheel and tire. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.

    Tighten:  Tighten the wheel and tire to 125 N.m (80 lb ft).

  8. Lower the vehicle.
