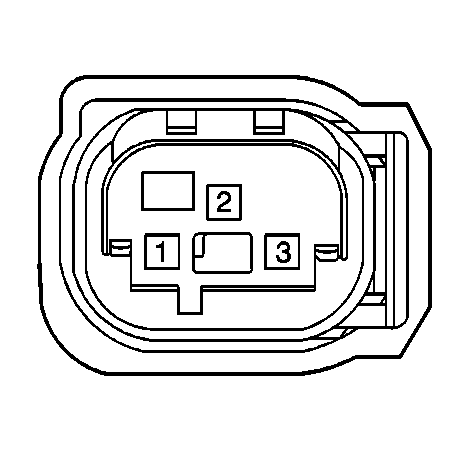

Object Sensor - LR Middle Connector End View
Object Sensor - LR Middle Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
- 15324398
- 3-Way F Quadlock Micro-Pack, Sealed (BLK)
|
| Pin |
Wire Color |
Circuit No. |
Function |
| 1 |
ORN |
2376 |
LR Middle Object Sensor Signal |
| 2 |
GRY |
2379 |
Object Sensor Low Reference |
| 3 |
DK BLU |
2374 |
Object Sensor Supply Voltage |
