Door Lock/Indicator Schematics

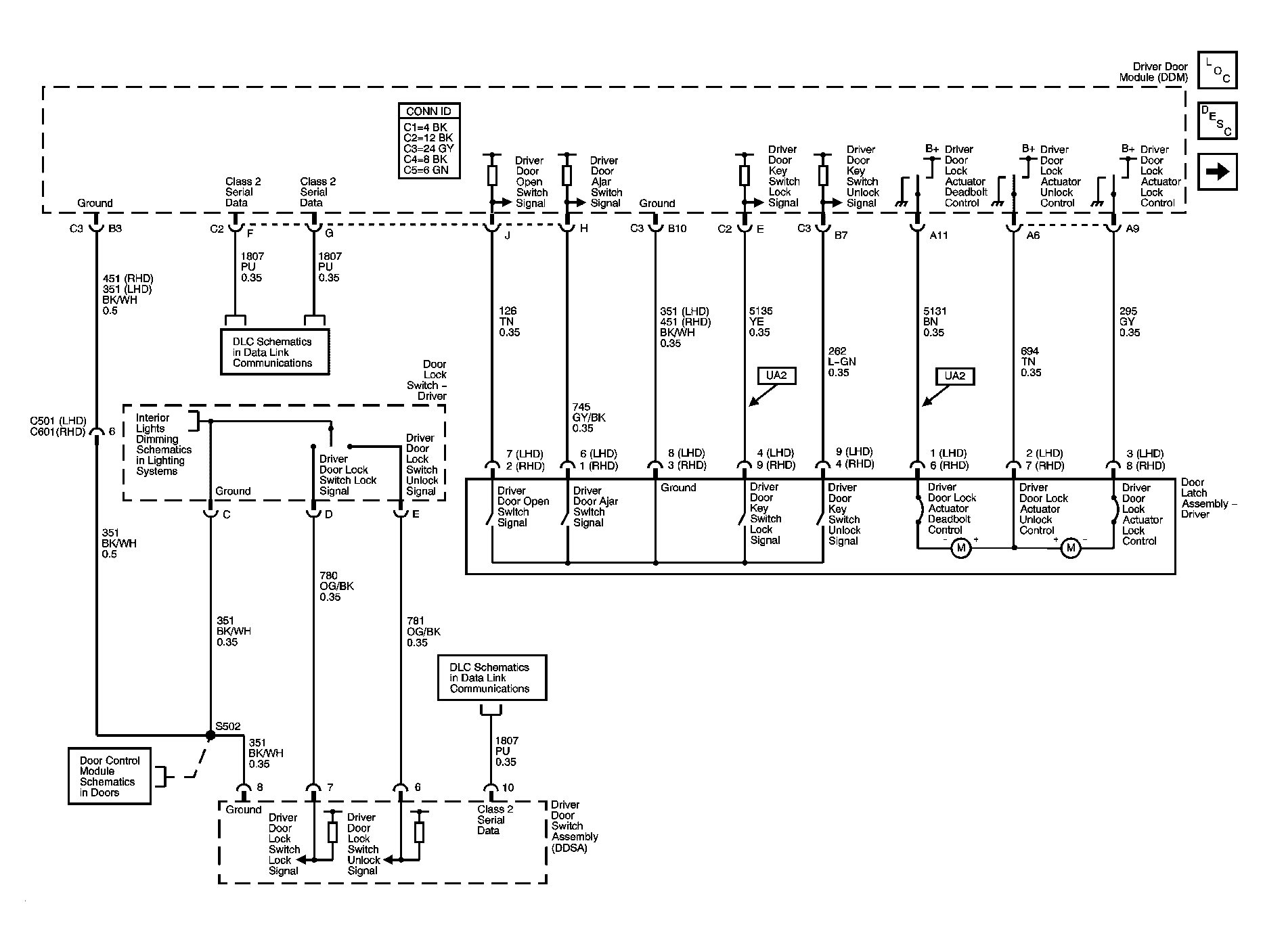

Fig 1: Driver Door Module (DDM), Driver Door Switch Assembly (DDSA), Door Lock Switch and Latch Assembly

Courtesy of GENERAL MOTORS CORP.

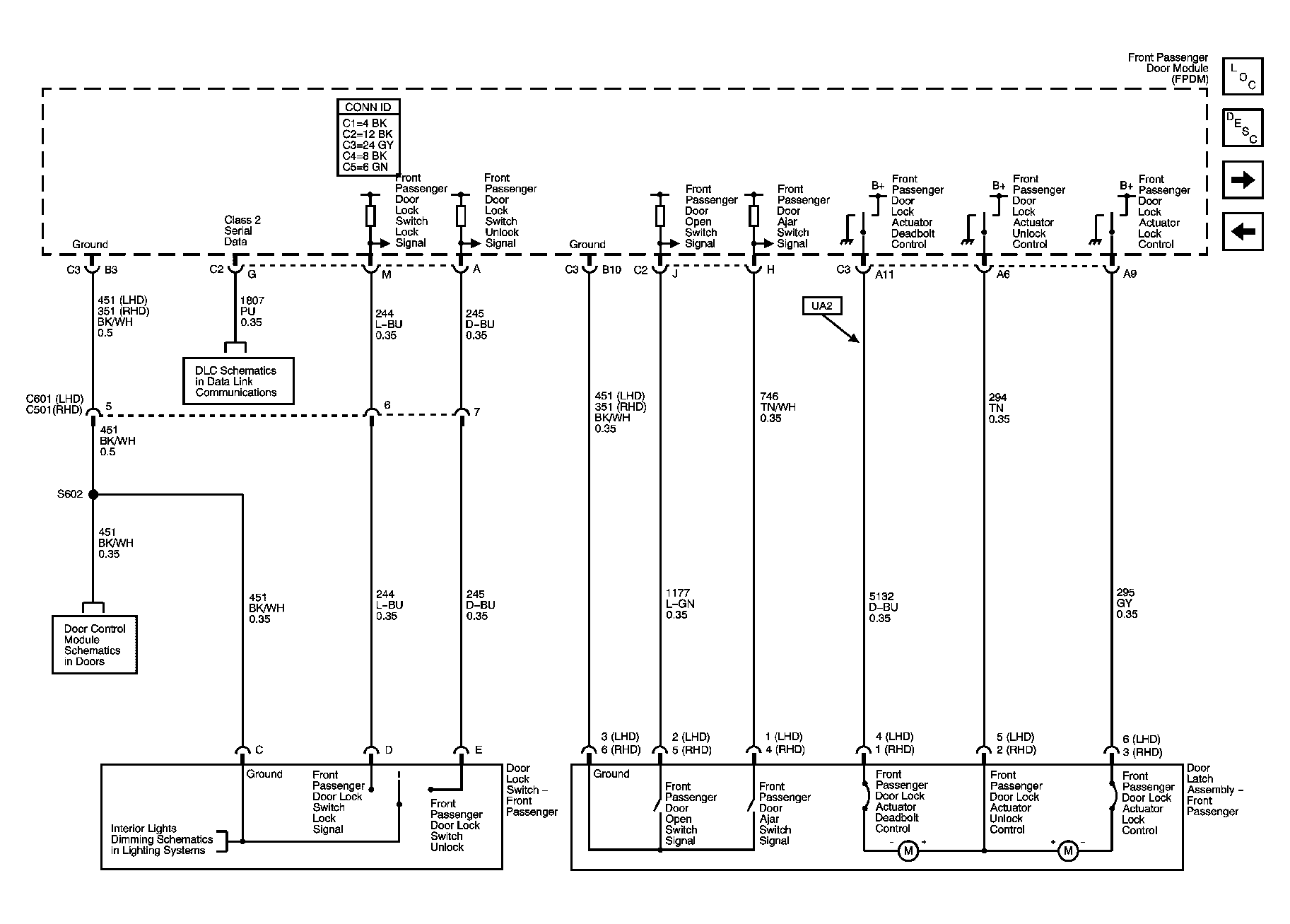

Fig 2: Front Passenger Door Module (FPDM), Front Passenger Door Lock Switch and Latch Assembly

Courtesy of GENERAL MOTORS CORP.

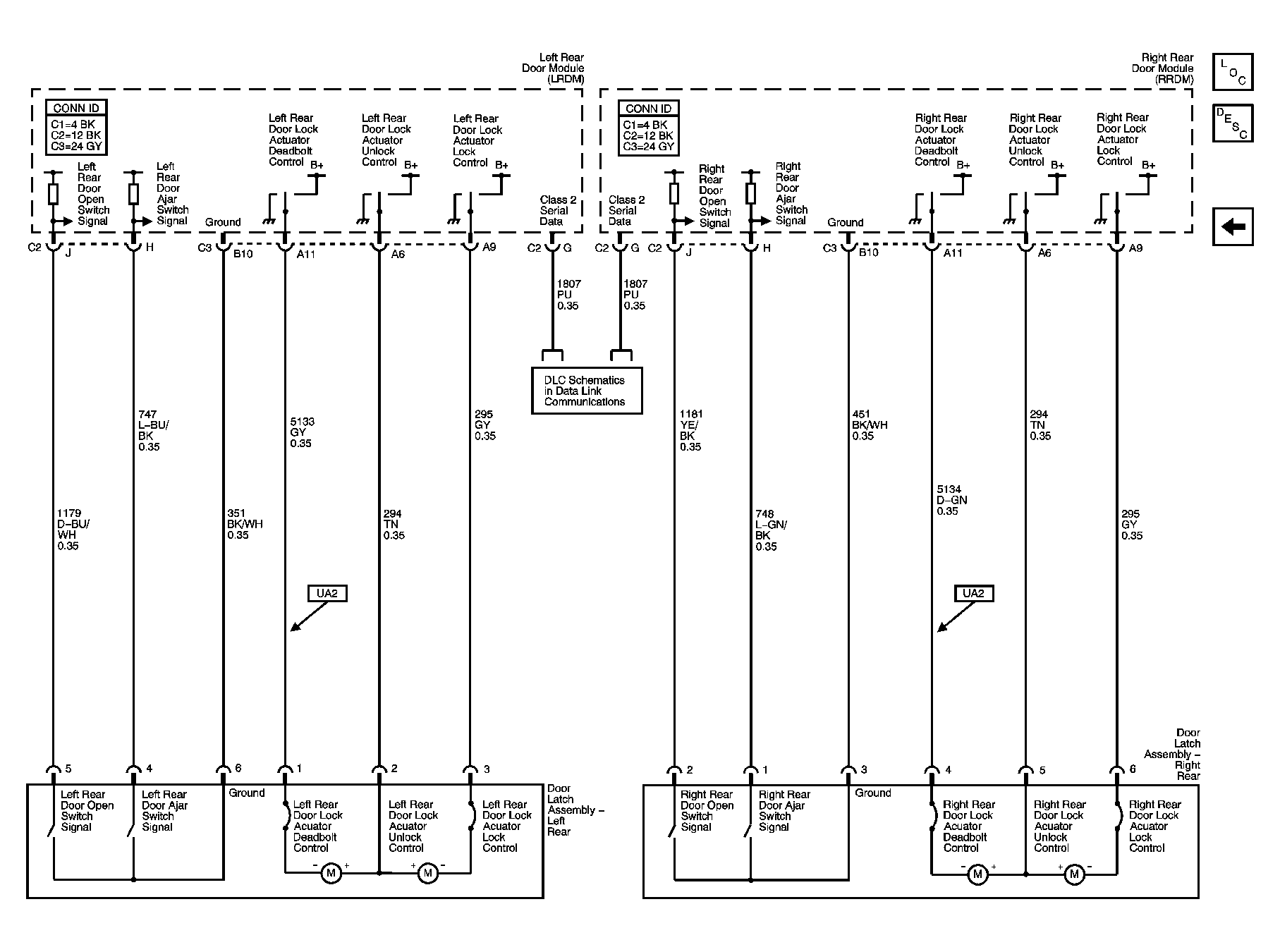

Fig 3: Rear Door Modules and Door Latch Assemblies

Courtesy of GENERAL MOTORS CORP.
