Removal Procedure

  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Pull back the forward half of the water deflector from the door panel to access the check link. Refer to Water Deflector Replacement - Front Door .

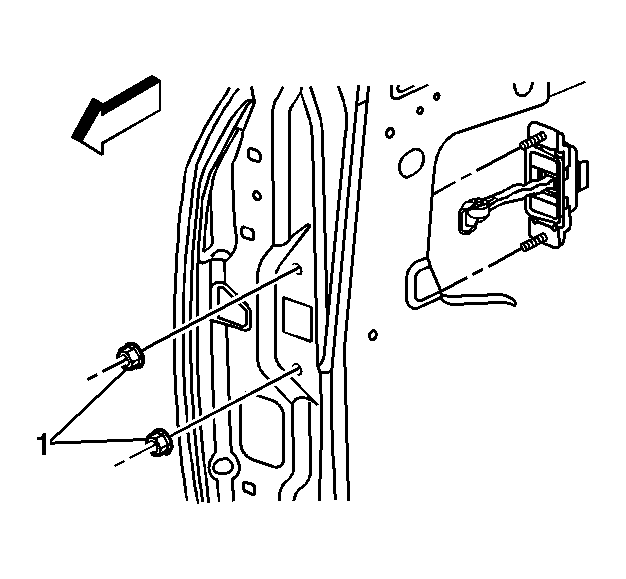

    3. Fig 1: Removing & Installing Front Door Check Link
    GM759947Courtesy of GENERAL MOTORS CORP.
  3. Remove the door check link to body bolt.
  4. Remove the check link to door nuts (1).
  5. Remove the check link from the door.
