Back-Up Light Switch: Removal

  1. Raise and suitably support the vehicle.

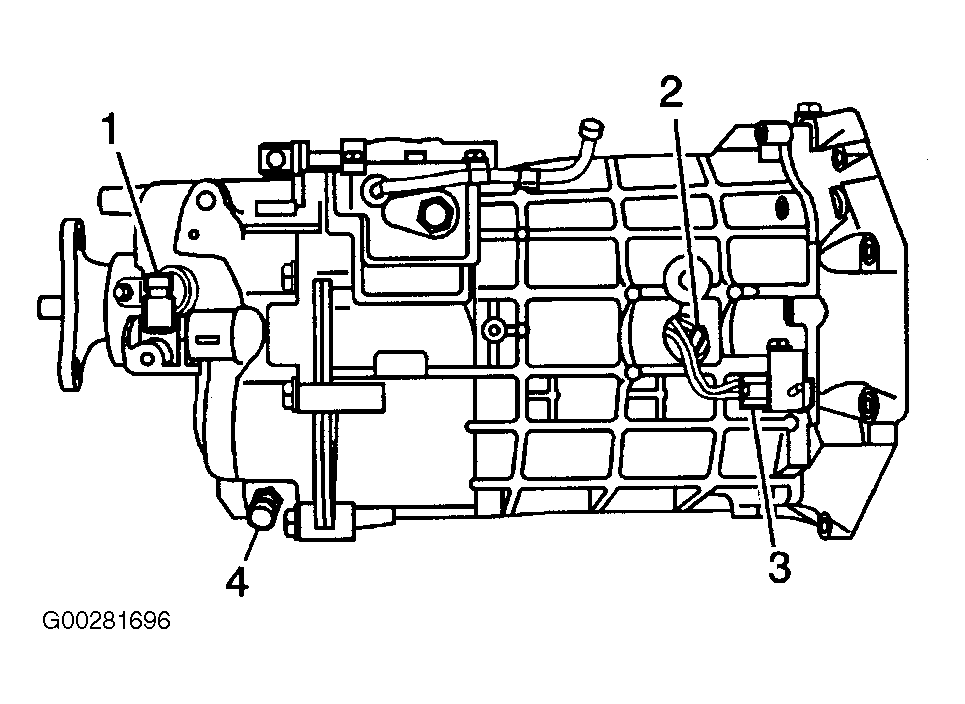

  2. On CTS models, disconnect back-up light switch harness connector (2) from back-up light switch (1). See Fig 1 . On CTSV models, disconnect back-up light switch harness connector (3) from back-up light switch (2). See Figure . On all models, remove back-up light switch assembly. See Figure or Fig 2 .

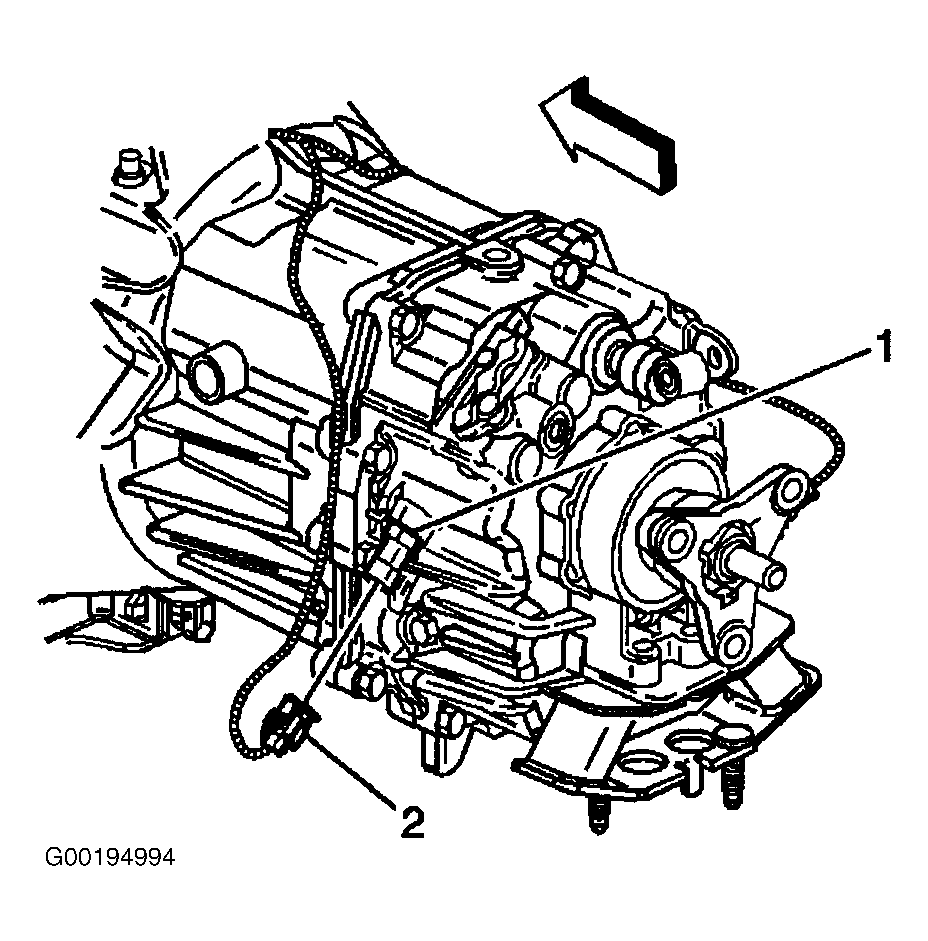

Fig 1: Locating Back-Up Light Switch Harness Connector
G00194994Courtesy of GENERAL MOTORS CORP.

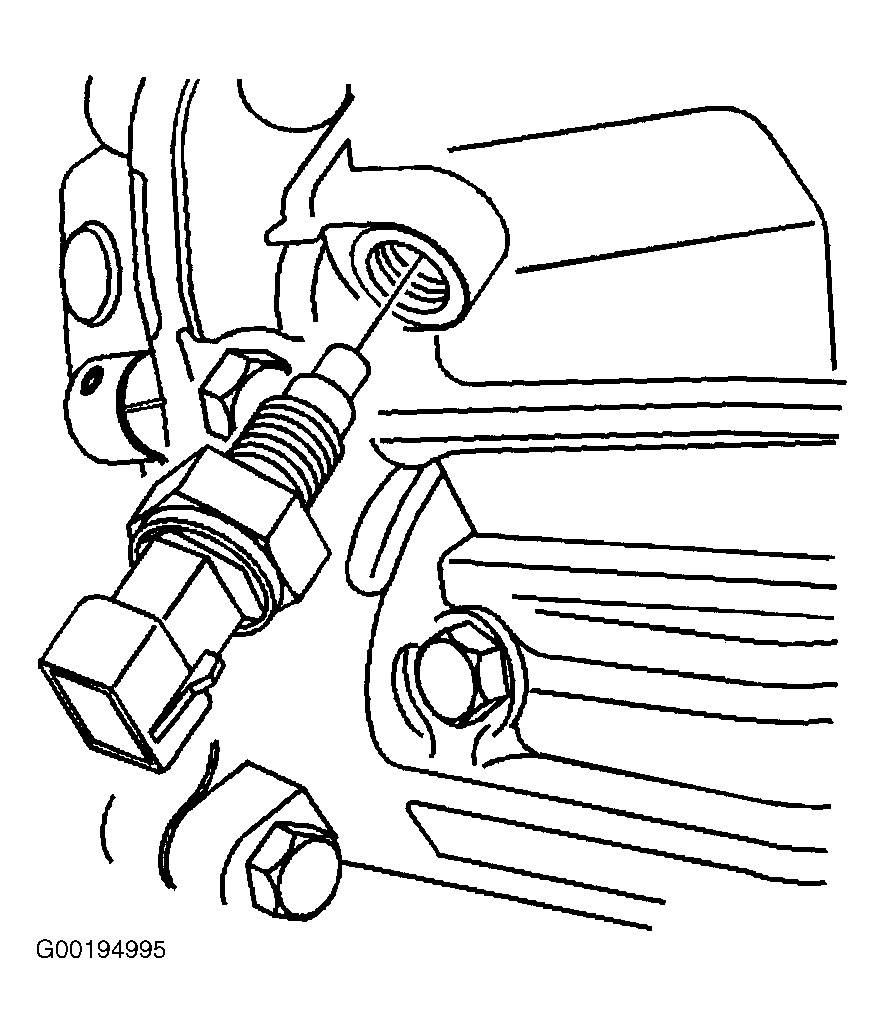

Fig 2: Removing & Installing Back-Up Light Switch Assembly
G00194995Courtesy of GENERAL MOTORS CORP.
