Removal Procedure

  1. Place a drain pan under the vehicle.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls-5.7L.

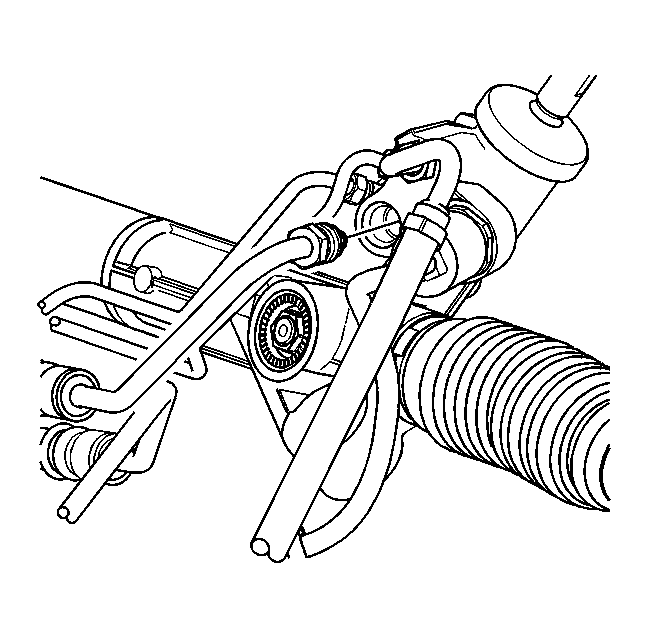

    3. Fig 1: Disconnecting Power Steering Return Hose From The Power Steering Gear
    GM1400682Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the power steering return hose from the power steering gear.
    4. Fig 2: Disconnecting Power Steering Return Hose From Power Steering Cooler
    GM1391088Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the power steering return hose from the power steering cooler.
  5. Remove the power steering return hose.
