Removal Procedure

Remove the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
Place a drain pan under the vehicle.
Remove the power steering pulley. Refer to Power Steering Pulley Replacement .

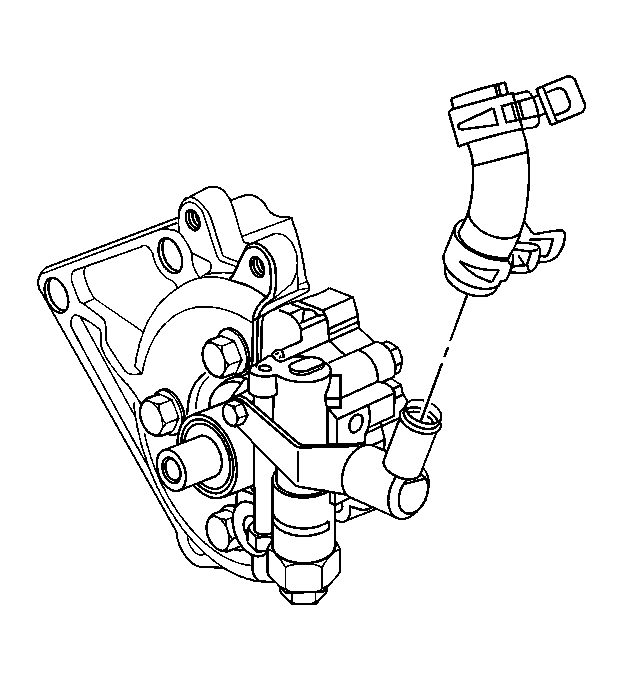

Fig 1: Disconnecting Power Steering Reservoir Outlet Hose From Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

Disconnect the power steering reservoir outlet hose from the power steering pump.

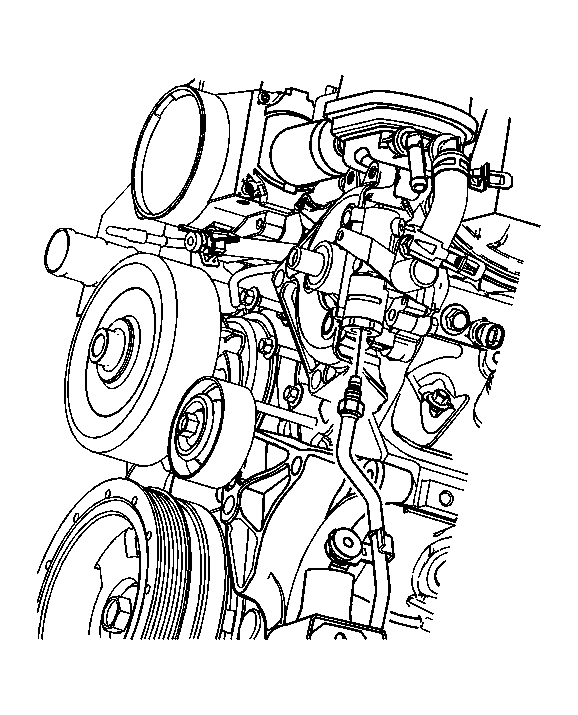

Fig 2: Disconnecting Power Steering Pressure Hose From Power Steering Pump

Courtesy of GENERAL MOTORS CORP.

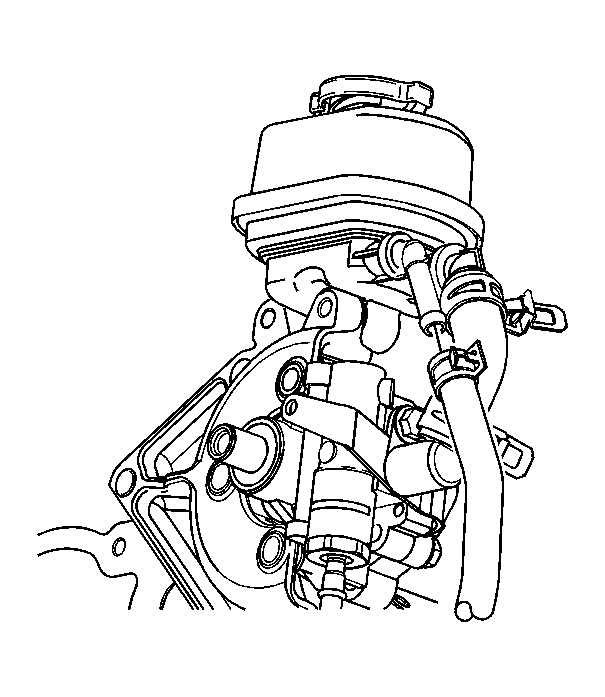

Fig 3: Disconnecting Power Steering Cooler Outlet Hose From Power Steering Reservoir

Courtesy of GENERAL MOTORS CORP.

Disconnect the power steering cooler outlet hose from the power steering reservoir.

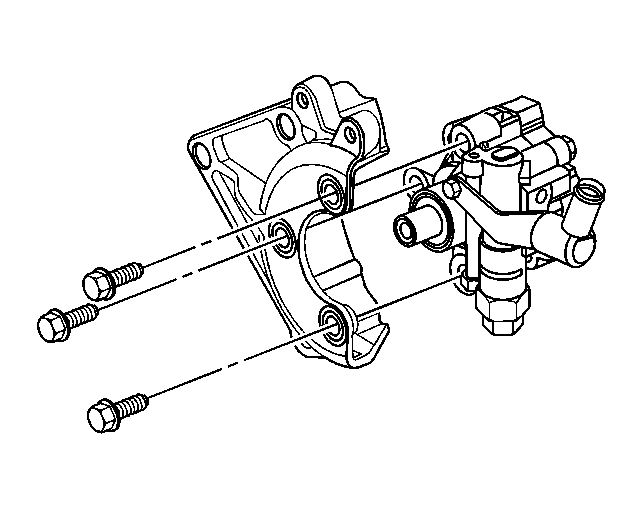

Fig 4: Removing Power Steering Pump To Power Steering Pump Bracket Bolts

Courtesy of GENERAL MOTORS CORP.
