Installation Procedure

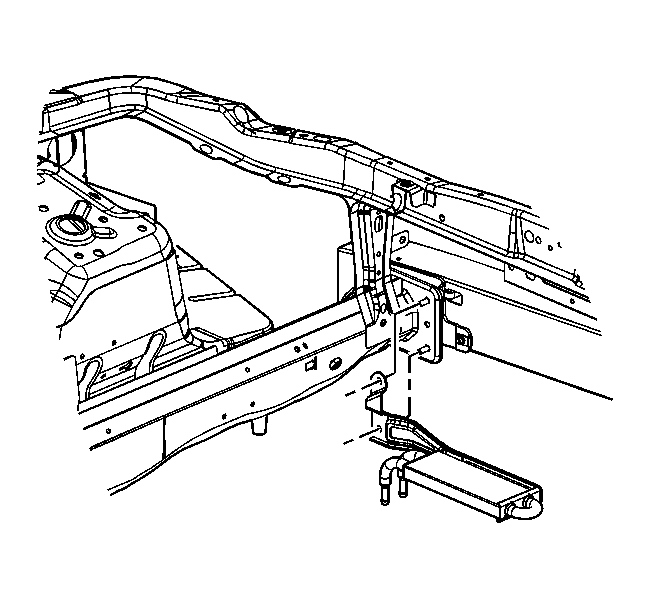

Fig 1: Installing Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the power steering cooler retaining nuts.
Tighten: Tighten the nuts to 25 N.m (18 lb ft).

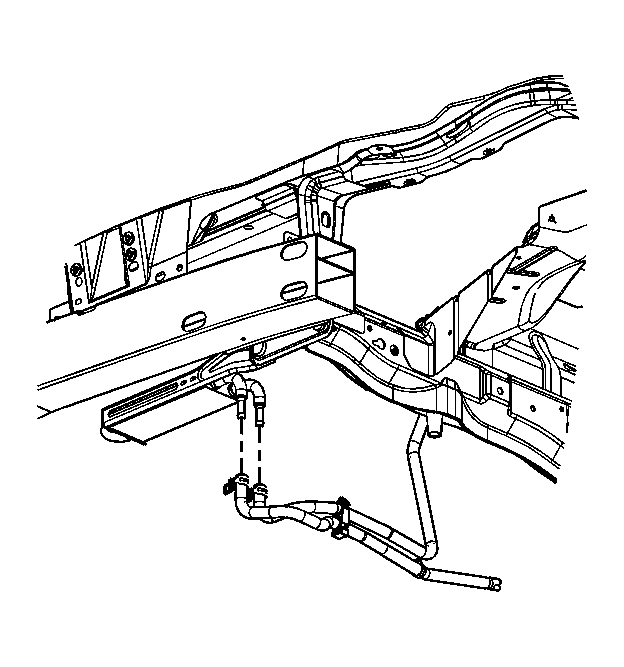

Fig 2: Installing Power Steering Hoses To Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

Install the power steering hoses to the power steering cooler.
Install the front air deflector. Refer to Air Deflector Replacement - Front in Body Front End.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
