Installation Procedure

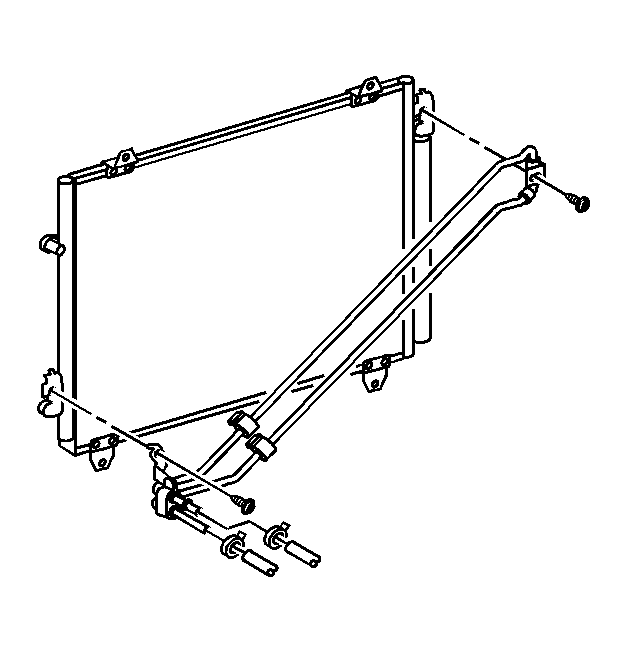

Fig 1: Installing Power Steering Cooler

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the power steering cooler retaining screws.
Tighten: Tighten the screws to 5.4 N.m (48 lb in).
Install the hoses to the power steering cooler.
Install the radiator. Refer to Radiator Replacement (LA3, LY9) , Radiator Replacement (LY7) or Radiator Replacement (LS6) in Engine Cooling.
Bleed the power steering system. Refer to Bleeding the Power Steering System .
