Installation Procedure

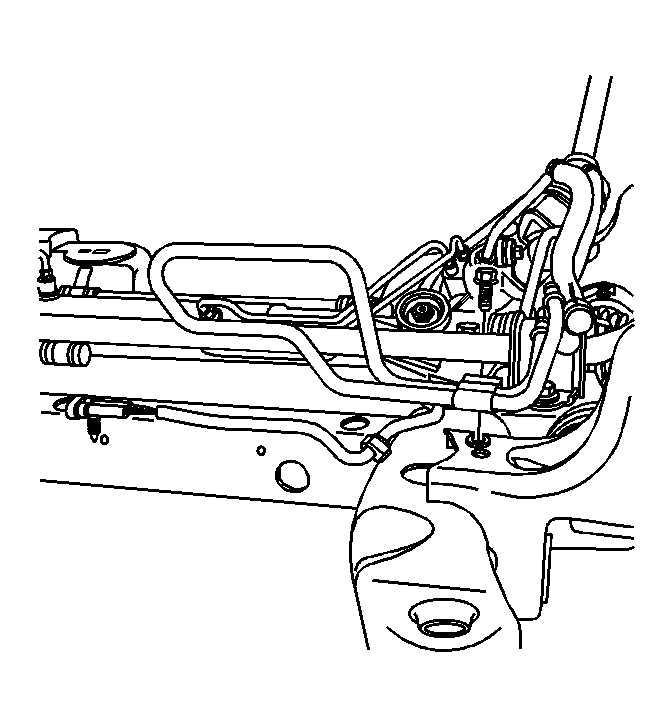

    Fig 1: Installing Power Steering Cooler To Vehicle
    GM830746Courtesy of GENERAL MOTORS CORP.
  1. Install the power steering cooler to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the power steering cooler retaining bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

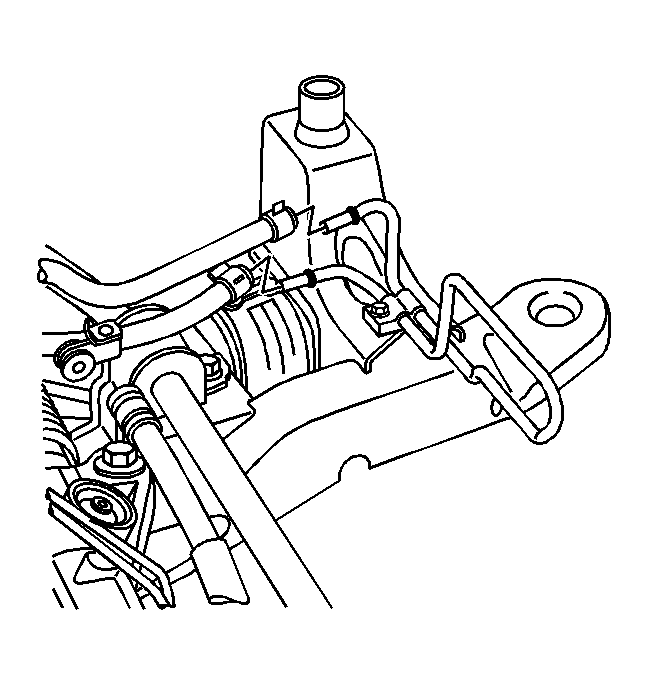

    3. Fig 2: Installing Power Steering Cooler Hoses
    GM830744Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering cooler hoses.
  4. Install the intake air resonator. Refer to Intake Air Resonator Replacement in Engine Controls 2.6 L and 3.2 L.
  5. Bleed the power steering system. Refer to Bleeding the Power Steering System .
