Installation Procedure

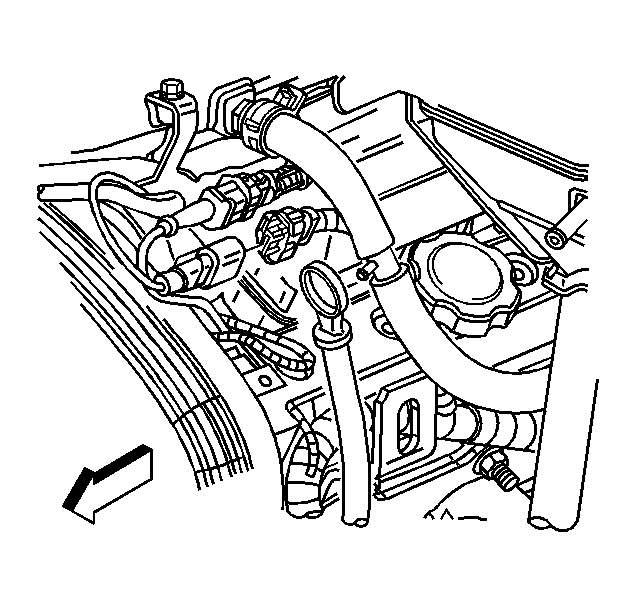

    Fig 1: View Of Camshaft Position (CMP) Sensor Pigtail
    GM785859Courtesy of GENERAL MOTORS CORP.
  1. Thoroughly clean the mating surfaces of the CMP sensor and the camshaft bearing cap.
  2. Install the CMP sensor into the camshaft bearing cap.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the bolt securing the CMP sensor to the camshaft bearing cap.

    Tighten:  Tighten the CMP sensor bolt to 8 N.m (71 lb in).

  4. Attach the KS pigtail retaining clip to the CMP sensor.
  5. Connect the electrical connector to the CMP sensor pigtail.
